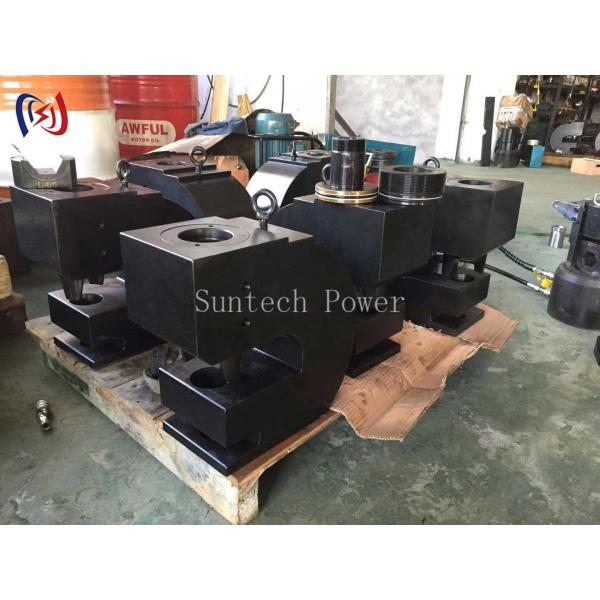

300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
Specifications
Brand Name :
Suntech
Model Number :
CH-60
Certification :
ISO9001
Place of Origin :
Ningbo, China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 SET/Month
Delivery Time :
7-15days
Packaging Details :
Wooden Case
Name :
Hydraulic Punching Device
Item No. :
06243-06249
Punching force :
300-1000KN
Punching thickness :
Iron6-18/ copper10-20mm
Throat diameter :
95-135mm
High :
340-400mm
Weight :
19-150KG
Specification of matching mold :
10.5-36mm
Warranty :
1 year
Description

Hydraulic Punching Device Metal Sheet Hydraulic Hole Punching Tools

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

Uses:For copper and aluminum and low carbon steel punching,it needs to be equipped with a hydraulic pump.

Explain:The mold size can be customized according to the requirements of the user.

Item No. Model Punching force(KN)

Punching

thickness(MM)

 throat diameter(MM) Hight(MM) Weight(KG) specification of matching mold(MM) hydraulic pump
06243 CH-60 300

iron6

copper10

 95 350 19

Φ10.5,Φ13.8

Φ17,Φ20.5

 CP-700/ZCB6-5-A3
06244 CH-70 350

iron10

copper12

 110 360 35

Φ10.5,Φ13.8

Φ17,Φ20.5

 CP-700/ZCB6-5-A3
06248 CH-80 500

iron16

copper20

 115 340 45

Φ16,Φ18

Φ22,Φ25

 ZCB6-5-AB
06249 CH-100 1000

iron18

copper20

 135 400 150

Φ25,Φ28

Φ32,Φ36

 ZCB6-5-AB
