Specifications
Brand Name :
Suntech
Model Number :
YBQA-80-03
Certification :
ISO9001
Place of Origin :
Ningbo, China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000 SET/Month
Delivery Time :
7-15days
Packaging Details :
Wooden Case
Name :
Rapid super high pressure hydraulic pump(Doulbe-stage pump output)
Item No. :
16146A-16144A
Engine Tyde :
Gasoline engine/ Diesel engine /Electric engine
Rated Pressure :
80Mpa
Max Oil Pressure :
94 Mpa
Rated Flow high :
94L/Min
Rated Flow low :
1.6-11.02L/min
Weight :
45-65KG
Warranty :
1 year
Description

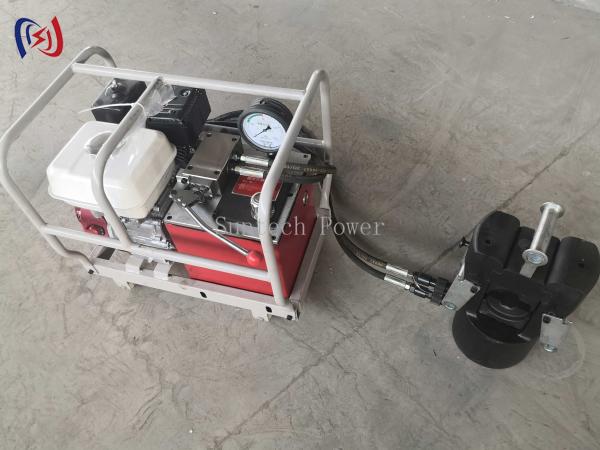

Double-Stage Pump Output Rapid Super High Presure Hydraulic Pump

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

Application

Application of hydraulic pump: to provide power for the cutting tool, the hydraulic compressor, punching machine

and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.

Technical Data

Item number

Model

Engine Tyde

Power

Rated

Pressure

(MPa)

Max Oil

Pressure

(MPa)

Rated Flow

(L/min)

Weight

(kg)

Hig

Low
16146A YBQA-80-03

Gasoline

engine

 5.0HP

80

 94 2.05 11.02 55
16147A YBCA-80-03

Diesel

engine

 4.0HP

80

 94 2.05 11.02 65
16144A YBDA-80-03

Electric

engine

 3.0KW

80

 94 1.6 8 45
