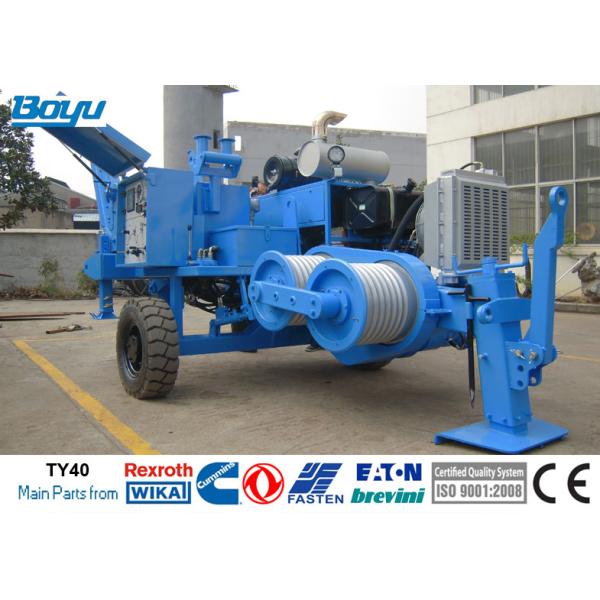

Max Intermittent Pull 4Tons 40kN 110kv Transmission Line Stringing Equipment Main Pump German Rexroth TY40

Quick details:

• 110kv Tansmission Line Stringing Equipment
• Max rope diameter: 16mm
• Hydraulic Puller
• Max pull: 40kN 4Tons
• Diesel: Cummins 77kw 103hp
• Max reel size: 1200mm
• Main pump and motor: German Rexroth
• Tail bracket hoisting motor: American Eton
• Boyu Brand

Performance

1.Max intermittent pull: 40kN
2.Max continuous pull: 30kN
3.Speed at max pull: 2.5km/h
4.Max speed: 5km/h
5.Pull at max speed: 20kN

Engine

• Diesel 77kw 103hp
• Cooling system: water
• Electrical system: 24V


Description

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.

Characteristics

• Bull-wheel diameter: 400mm
• Groove number: 7
• Max rope diameter : 16mm
• Max diameter of rope reel: 1200mm
• Total weight: 3000kg
• Overall dimension (length*width*height): 3600×2100×2200mm

Main configuration

1. Engine: Cummins
2. Main pump: German Rexroth
3. Main motor speed reducer: German Rexroth
4. Tail bracket hoisting motor: American Eton
5. Hydraulic meter: German
6. Operating handle: German Rexroth

Configuration

1. Hydraulic dynamometer with set-point and automatic control of maximum pull
2. Hydraulic oil cooling system
3. Control instruments for hydraulic system and diesel engine
4. On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200
5. Manual front stabilizer
6. Grounding connection point

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

1. Lighting system for the trailer
2. Hydraulic rope clamp for reel change(extra charge)
3. Swivel guide rope roller
4. Trailer for towing at max speed of 30 km/h
5. Extra shaft
6. Digital speed and meter counter

Customers


More pictures


Company Introduction
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
　　1. Main configurations of our machine are from Germany and USA
　　Engine: American Cummins
　　Main pump: German Rexroth
　　Main motor& speed reducer: German Rexroth
　　Tail bracket hoisting motor: American Eton
　　Hydraulic meter: German
　　2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
　　3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
　　4. We can supply the specific components to the buyers with cost price after warranty period.
