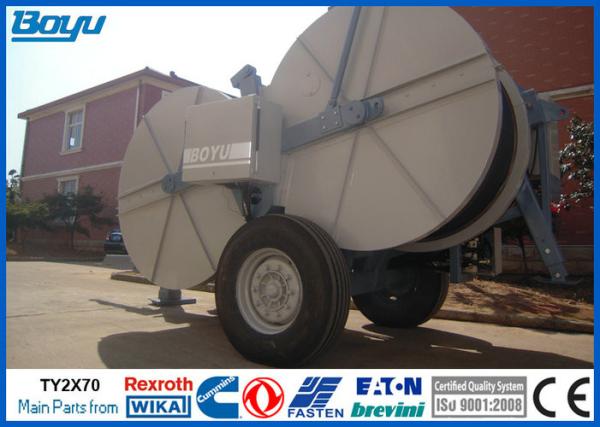

2x70kN 14Tons Hydraulic Tension Stringing Equipment Two Bundle Conductor Tension Machine TY2x70

Quick details

• 1. Hydraulic Tension Stringing Equipment
• 2. Hydraulic Tensioner for two bundle conductor
• 3. Max tension: 2x70kN/140kN 14Tons
• 4. Diesel: Cummins 77kw(103hp)
• 5. Main pump and motor and speed reducer: German (Rexroth)
• 6. Hydraulic meter: German ()
• 7. Max conductor diameter: 40mm
• 8. Groove number: 2x6
• 9. Bull-wheel diameter: 1700mm

Main configuration
Engine: Cummins
Hydraulic pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Hydraulic meter: German

Performance
Max intermittent tension: 2x70kN
Max continuous tension: 2x65kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Tension at max speed: 2x25kN
Max reverse pulling force: 2*60kN/1*120kN
Max reverse pulling speed: 5km/h

Description
The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V

Characteristics
Bull-wheel diameter: 1700mm
Max conductor diameter: 40mm
Groove number: 2x6
Total weight: 7500kg
Overall dimension (length*width*height): 4700×2300×2700mm

Configuration
2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter counters
2 digital speed meters
Control instruments for hydraulic system and diesel engine
Rigid axle for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
Grounding connection point

Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.

Additional Devices
Lighting system for the trailer
Hydraulic brake system for the trailer
2 hydraulic conductor clamps for drum change operations
Electronic pull and speed recorder

More Pictures

Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Hydraulic Tension Stringing Equipment and accessories and tools.
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system

History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.

Work site
