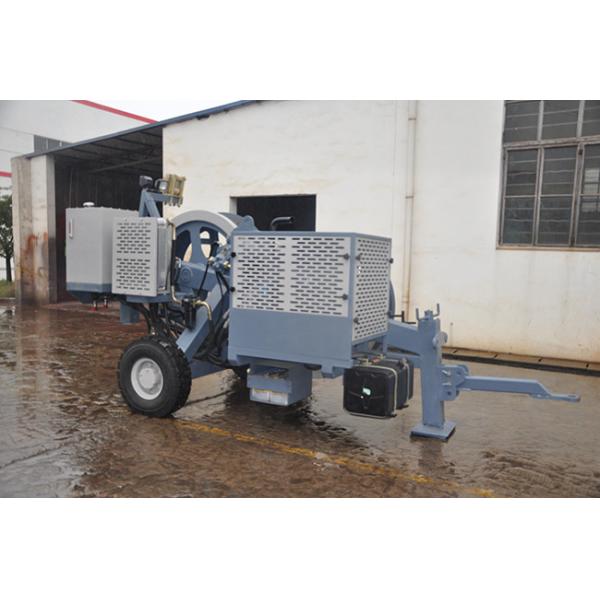

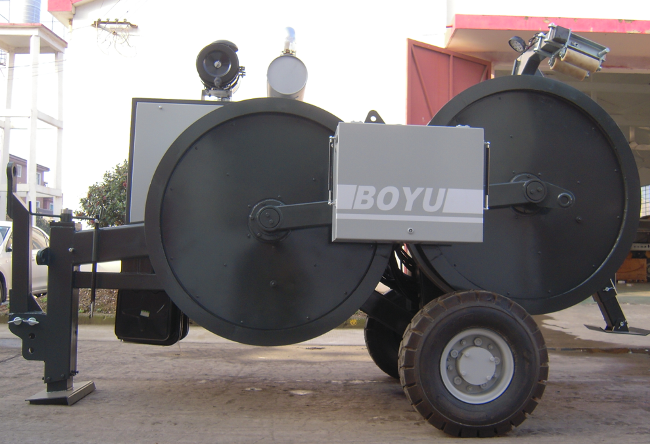

Tension Stringing Equipment TY1x40 Max Intermittent Pull 45kN Hydraulic Tensioner Cummins Engine
Tension Stringing Equipment TY1x40 Max Intermittent Pull 45kN Hydraulic Tensioner Cummins Engine
Tension Stringing Equipment TY1x40 Max Intermittent Pull 45kN Hydraulic Tensioner Cummins Engine
Tension Stringing Equipment TY1x40 Max Intermittent Pull 45kN Hydraulic Tensioner Cummins Engine
Specifications
Brand Name :
Boyu
Model Number :
TY1x40-22
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Max intermittent pull :
45kN
Max continuous pull :
40kN
Speed at max pull :
2.5km/h
Bull-wheel diameter :
1300mm
Overall dimension (length*width*height) :
3520*2000*1710mm
Engine :
Cummins
Description

Tension Stringing Equipment TY1x40 Max Intermittent Pull 45kN Hydraulic Tensioner Cummins Engine

TY1x40 Hydraulic Tensioner

Operated with 50kN tension machine, this machine is mainly applied in hilly and flat lands for tension stringing of 500kV conductors, and because of the great convenience brought by the reverse traction function, it is the better choice for the construction in small projects of transmission lines such as the modification works of rural and urban networks.

Characteristics

Bull-wheel diameter: 1300mm

Max conductor diameter: 40mm

Max Optical fiber cable diameter: 21mm

Groove width: 55mm

Groove number: 5

Total weight: 2300kg

Overall dimension (length*width*height): 3520*2000*1710mm

Performance

Max intermittent pull: 45kN

Max continuous pull: 40kN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed: 20kN

Max reverse pulling force: 35kN

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth / Italy Brevini

Hydraulic meter: German

Operating handle: German Rexroth

Engine

Diesel: 77kw(103hp)

Cooling system: water

Electrical system: 24V

Hydraulic Transmission

The machine can realize step less speed

The machine is provided with tension presetting system

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Mechanical meter counters

Grounding connection point

Hydraulic power pack to control drum stands with hydraulic motor

Additional Devices

Lighting system for the trailer

Air brake system for the trailer(extra charge)

Hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

Tension Stringing Equipment TY1x40 Max Intermittent Pull 45kN Hydraulic Tensioner Cummins Engine

Tension Stringing Equipment TY1x40 Max Intermittent Pull 45kN Hydraulic Tensioner Cummins Engine

Tension Stringing Equipment TY1x40 Max Intermittent Pull 45kN Hydraulic Tensioner Cummins Engine

Company profile

There are 158 employees in Boyu, including 16 engineers. There are also more than 40 sets of processing equipment, consist of 35 sets mechanical processing equipment (including lathe, filing machine, planer, grinder, ect), 2 sets vertical test equipment.

Our company used about 10% of term of accounting’s value of sale in every year for R&D. Our company developed many types of product to content requirement of customers, and Product won the customers high praise.

Yixing Boyu Electric Power Machinery Co., Ltd insist cooperation culture of Quality as life, reputation as fundamental, and engage in providing reliable and safe operation of power network for the customers. Our company works for the development of electric power industry and strives for the transmission line construction machinery to catch up with the international level. Yixing Boyu Electric Power Machinery Co., Ltd is willing to create a friendly cooperation relationship with customers to seek development and create prosperity.
