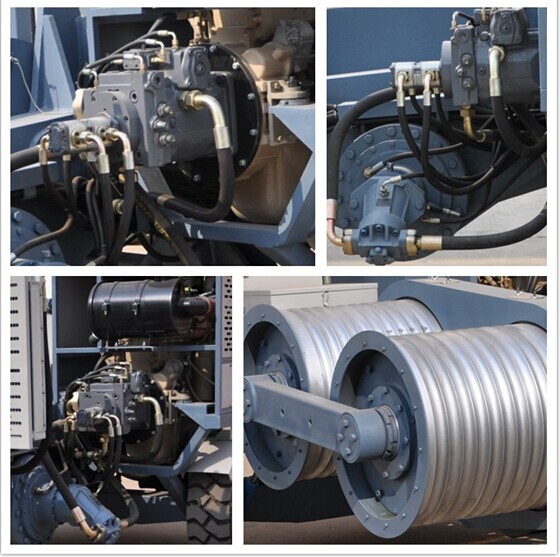

Groove Number 8 Hydraulic Cable Pull machinery 100kN with 118kw Cummins Engine

Quick details:
1.Transmission Line Stringing Equipment
2.Groove number 8 Hydraulic Cable Pull machinery
3.Max pull: 100kN
4.Engine: Cummins 118kw
5.Main pump : German Rexroth
6.Main Reducer:: German Rexroth
7.Operating handle: German Rexroth
8.Boyu Brand

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur

TY90 Hydraulic Puller
This machine allows for the tension stringing of twin-bundle conductor of 500mm2
and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2
and below in flat lands, and of single conductor 720mm2 in various terrains;
besides, it can be used for traction stringing of OPGW or ADSS optical cable
and 220kV haulage rope in various terrains.

Performance parameter
Max intermittent pulling force : 100KN
Max continous pulling force: 90KN
Corresponding speed: 2.5km/h
Max continous pulling speed: 5km/h
Corresponding pulling force: 40KN

Structure parameter
Puller wheel diameter: 540mm
Groove number: 8
Max diameter of applicable steel wire rope : 21mm
Electric systerm: 24V
Max diameter of applicable wire coil: 1400mm
Total weight: 4350kg
overall dimension (length*width*height): 4500×2100×2450mm

Main configurations
Engine:Cummins
Main pump: German Rexroth
Main moterspeed reducer : German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German

Additional Devices

1. Lighting system for the trailer
2. Hydraulic rope clamp for reel change(extra charge)
3. Swivel guide rope roller
4. Trailer for towing at max speed of 30 km/h
5. Extra shaft
6. Digital speed and meter counter

Company instruction

Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
