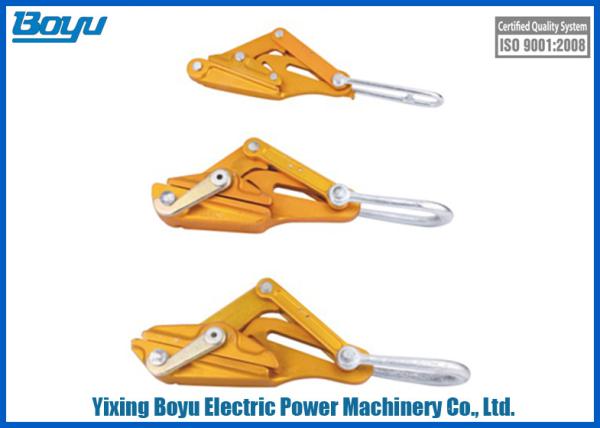

Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips
Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips
Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips
Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips
Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips
Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips
Specifications
Place of Origin :
China
Brand Name :
Boyu
Certification :
ISO9001
Model Number :
TYSKL
MOQ :
10 sets
Price :
Negotiable
Packaging Details :
Container
Delivery Time :
25~30days
Payment Terms :
TT/TC
Supply Ability :
100 sets/month
Price terms :
FOB(Shanghai) or CIF (assigned port)
OEM :
available
Brand :
Boyu
Weight :
1-18kg
Material :
high strength aluminous alloy
Conductor size :
LGJ25~70, LGJ95~120
Rated Load :
7~80kN
Description

Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips

Quick details:


1. Transmission Line Stringing Equipment Accessories & Tools
2 .Aluminum Alloy Conductor Grips
3. Weight: 1~18kg
4. Rated Load: 7~80kN
5.Conductor size: LGJ25~70,LGJ95~120

6.Material: high strength aluminous alloy
7. Boyu Brand

Description:

The self-gripping clamps can be use to anchor and to string conductor. It is made of high strength aluminous alloy with characteristics of compact and light , in order to minimize the ratio between weight and working load. It is mainly applied to adjusting sag in erecting wire and sagging .

Specification:

Model Conductor size (mm2) Rated load (kN) Max. opening (mm) Weight (kg) Material
SK-10 25~70 10 14 1.6 Steel
SK-15 95~120 15 17 2.5 Steel
SK-25 150~240 25 23 3.8 Steel
SKL-7 25~70 7 14 1.0 Aluminum
SKL-15 95~120 15 18 1.4 Aluminum
SKL-25 150~240 25 24 3.0 Aluminum
SKL-40 300~400 40 32 4.0 Aluminum
SKL-50 500-630 50 36 6.6 Aluminum
SKL-40G 400 40 32 4.3 Aluminum
SKL-50G 500 50 34 7.0 Aluminum
SKL-50GA 630 50 36 7.3 Aluminum
SKL-60G 720 60 38 9.2 Aluminum
SKL-70G 900 70 42 14 Aluminum
SKL-80G 1000 80 45 18 Aluminum
SKL-80GA 1200 80 48 18 Aluminum

Note: "G" that it is equipped with protect hook, its test intensity up to 3 times, and not hurt conductor.

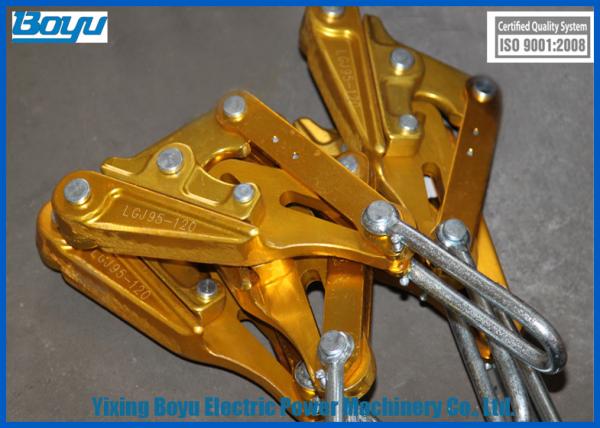

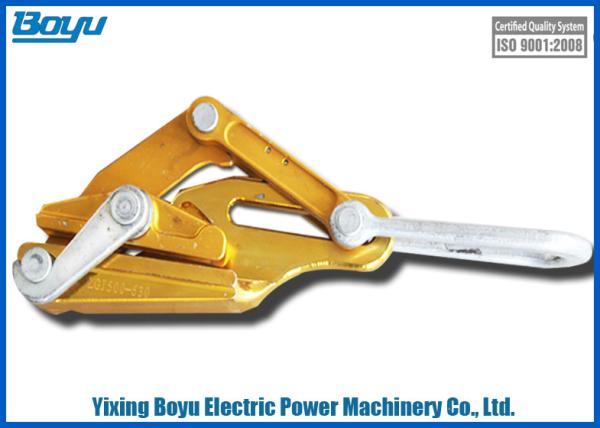

More pictures:

Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips

Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips

Quality Control:

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

Maufacturer Introduction:

Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are at the east of China, near Shanghai seaport, Nanjin airport, Hangzhou airport, about 2~3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
  • Line Stringing Equipment and accessories and tools.
  • Nonmetallic galvanized the production equipment (Achieved high-tech products)
  • Numerical control machine
  • Low voltage no power-arc furnace compensation system.

Rated load 70kn Transmission Line Stringing Tools Aluminum Alloy Conductor Grips
