Time Saving Transmission Line Stringing Tools Electric Power Line Connector Fixed Joints
Time Saving Transmission Line Stringing Tools Electric Power Line Connector Fixed Joints
Time Saving Transmission Line Stringing Tools Electric Power Line Connector Fixed Joints
Time Saving Transmission Line Stringing Tools Electric Power Line Connector Fixed Joints
Specifications
Brand Name :
BOYU
Model Number :
TYSLU-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000pieces/month.
Delivery Time :
15-35days
Packaging Details :
Container
Product :
Electric Power Line Connector
Dimensions A :
36mm
Dimensions B :
68mm
Dimensions C :
18mm
Dimensions d :
10mm
Dimensions D :
14mm
Description

Transmission Line Stringing Tools Electric Power Line Connector Fixed Joints

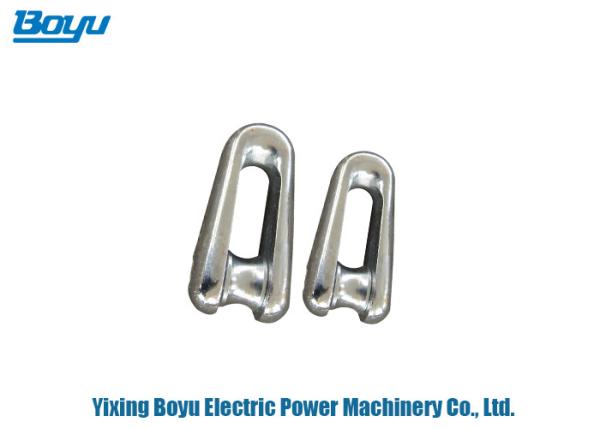

TYSLU Connectors

The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels. They are made of highly tensile galvanized steel.
Model Dimensions (mm) Rated load Weight
A B C d D E (kN) (kg)
SLU-1 36 68 18 10 14 29 10 0.2
SLU-3 37 76 20 12 17 31 30 0.22
SLU-5 50 96 23 18 19 42 50 0.6
SLU-8 56 110 28 20 22 50 80 0.8
SLU-10 59 126 30 22 26 54 100 1.2
SLU-13 61 134 32 24 27 56 130 1.3
SLU-15 63 138 37 27 28 58 150 1.4
SLU-25 80 178 44 32 35 72 250 3.0
SLU-28 80 178 44 32 35 72 280 3.0
SLU-32 85 186 42 30 38 80 320 3.9

Time Saving Transmission Line Stringing Tools Electric Power Line Connector Fixed Joints
