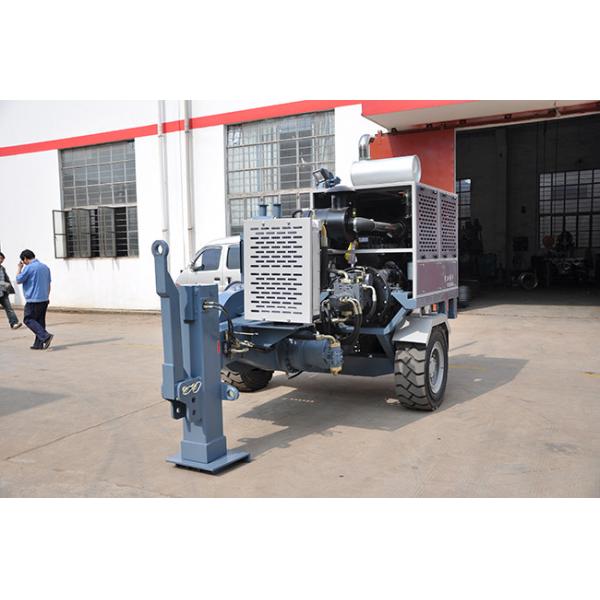

TY60 Hydraulic Puller

• Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.

Characteristics

1. Bull-wheel diameter: 450mm
2. Groove number: 7
3. Max rope diameter: 18mm
4. Max diameter of rope reel: 1400
5. Total weight: 3500kg
6. Overall dimension (length*width*height): 3800*2100*2300mm

Engine

1. Diesel: 77kw(103hp)
2. Cooling system: water
3. Electrical system: 24V

Main configuration

1. Engine: Cummins
2. hydraulic pump: German Rexroth
3. Main motor: German Rexroth
4. speed reducer: German Rexroth
5. Tail bracket hoisting motor: American Eton
6. Hydraulic meter: German
7. Operating handle: German Rexroth

Performance

1. Max intermittent pull: 60kN
2. Max continuous pull: 50kN
3. Speed at max pull: 2.5km/h
4. Max speed: 5km/h
5. Pull at max speed: 25kN

Hydraulic Transmission

• Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

1. Lighting system for the trailer
2. Hydraulic rope clamp for reel change
3. Swivel guide rope roller
4. Trailer for towing at max speed of 30 km/h
5. Extra shaft
6. Digital speed and meter counter (extra charge)

Configuration

1. Hydraulic dynamometer with set-point and automatic control of maximum pull
2. Hydraulic oil cooling system
3. Control instruments for hydraulic system and diesel engine
4. On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
5. Hydraulic front stabilizer
6. Grounding connection point
