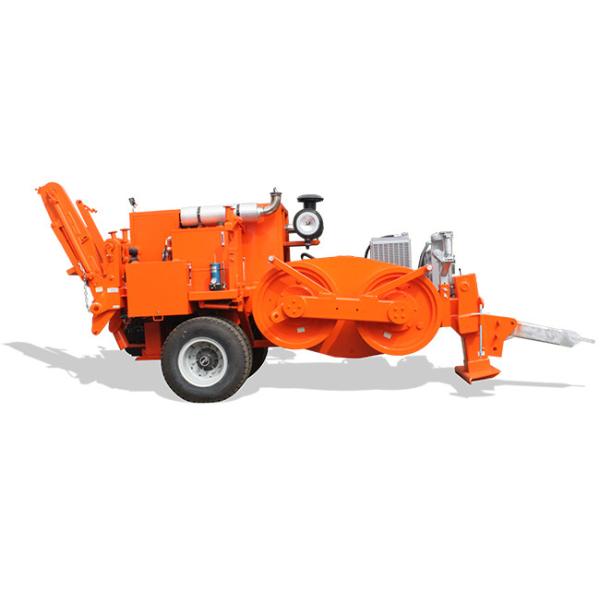

TY160 Transmission Line Stringing Equipment Hydraulic Puller Max Intermittent Pull 160kN
TY160 Transmission Line Stringing Equipment Hydraulic Puller Max Intermittent Pull 160kN
TY160 Transmission Line Stringing Equipment Hydraulic Puller Max Intermittent Pull 160kN
TY160 Transmission Line Stringing Equipment Hydraulic Puller Max Intermittent Pull 160kN
Specifications
Brand Name :
Boyu
Model Number :
TY160-20
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Max intermittent pull :
160kN
Max continuous pull :
120kN
Speed at max pull :
2.5km/h
Max diameter of rope reel :
1600mm
Total weight :
5500kg
Diesel :
239kw(320hp)
Electrical system :
24V
Engine :
Cummins
Description

TY160 Transmission Line Stringing Equipment Hydraulic Puller Max Intermittent Pull 160kN

TY160 Hydraulic Puller
  • The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Characteristics
  • Bull-wheel diameter: 620mm
  • Groove number: 10
  • Max rope diameter : 24mm
  • Electric system: 24V
  • Max diameter of rope reel: 1600mm
  • Total weight: 5500kg
  • Overall dimension (length*width*height): 4300×2300×2400mm
Performance
  • Max intermittent pull: 160kN
  • Max continuous pull: 120kN
  • Speed at max pull: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 60kN
Engine
  • Diesel: 239kw(320hp)
  • Cooling system: water
  • Electrical system: 24V
Main configuration
  • Engine: Cummins
  • Hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • speed reducer: German Rexroth
  • Tail bracket hoisting motor: American Eton
  • Hydraulic meter: German
  • Operating handle: German Rexroth
Hydraulic Transmission
  • Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Configuration
  • Hydraulic dynamometer with set-point and automatic control of maximum pull
  • Hydraulic oil cooling system
  • Control instruments for hydraulic system and diesel engine
  • On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
  • Hydraulic front stabilizer
  • Grounding connection point
Additional Devices
  • Lighting system for the trailer
  • Hydraulic rope clamp for reel change
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Extra shaft
  • Digital speed and meter counter (extra charge)

TY160 Transmission Line Stringing Equipment Hydraulic Puller Max Intermittent Pull 160kN

Customer support

1. Customer is our first priority

2. Our contact person will do the best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and without any commitment from your side.

3. An introduction course has been planned for all the customers that buy BOYU machines, we provide free technical support by means of phone or mail.

4. If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU shall take full responsibility and bear all the economic losses incurred.

5. If any other quality problems occurs within the guarantee period, BOYU shall provide online video service after receive the buyer’s notice in 24 hrs.

6. BOYU will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
