TY60 Hydraulic Meter German 60kN Hydraulic Puller Water Cooling System
TY60 Hydraulic Meter German 60kN Hydraulic Puller Water Cooling System
TY60 Hydraulic Meter German 60kN Hydraulic Puller Water Cooling System
TY60 Hydraulic Meter German 60kN Hydraulic Puller Water Cooling System
Specifications
Brand Name :
Boyu
Model Number :
TY60
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Max intermittent pull :
60kN
Diesel :
77kw(103hp)
Engine :
Cummins
Cooling system :
water
Electrical system :
24V
Bull-wheel diameter :
450mm
Overall dimension (length*width*height) :
3800×2100×2300mm
Type :
Hydraulic Puller
Description

TY60 Transmission Line Stringing Equipment Hydraulic Meter German 60kN Hydraulic Puller

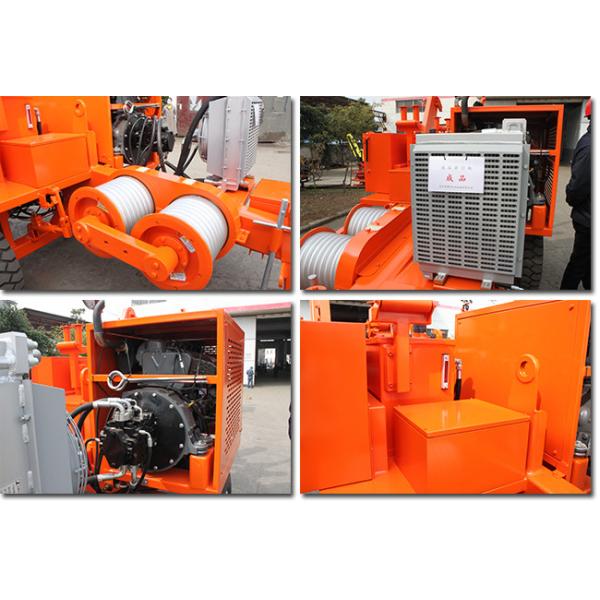

TY60 Hydraulic Puller

  • Model: TY60
  • Max intermittent pull: 60kN
  • Engine: Cummins
  • Diesel: 77kw(103hp)

Characteristics

  • Bull-wheel diameter: 450mm
  • Groove number: 7
  • Max rope diameter : 18mm
  • Max diameter of rope reel: 1400mm
  • Total weight: 3500kg
  • Overall dimension (length*width*height): 3800×2100×2300mm

Performance

  • Max intermittent pull: 60kN
  • Max continuous pull: 50kN
  • Speed at max pull: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 25kN
Main configuration
  • Engine: Cummins
  • hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • speed reducer: German Rexroth
  • Tail bracket hoisting motor: American Eton
  • Hydraulic meter: German
  • Operating handle: German Rexroth
Engine
  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V
Configuration
  • Hydraulic dynamometer with set-point and automatic control of maximum pull
  • Hydraulic oil cooling system
  • Control instruments for hydraulic system and diesel engine
  • On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
  • Hydraulic front stabilizer
  • Grounding connection point
Additional Devices
  • Lighting system for the trailer
  • Hydraulic rope clamp for reel change
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Extra shaft
  • Digital speed and meter counter (extra charge)


TY60 Hydraulic Meter German 60kN Hydraulic Puller Water Cooling System

Other Models

Model TY40 TY120 TY150 TY220 TY280 TY380
Performance
Max intermittent pull KN 40 120 150 220 280 380
Max continuous pull KN 30 100 120 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5
Pull at max speed KN 20 50 60 90 120 170
Characteristics
Bull-wheel diameter mm 400 600 600 760 960 960
Groove number 7 10 10 10 11 11
Max rope diameter mm 16 24 24 30 38 38
Max diameter of rope reel mm 1200 1400 1600 1600 1600 1900
Total weight kg 3000 4800 5500 6800 12800 13600
Overall dimension mm

3600*2600

*2200

4000*2300

*2300

4300*2300

*2400

5300*2360

*2750

5800*2300

*2700

6000*2600

*2800

Company
TY60 Hydraulic Meter German 60kN Hydraulic Puller Water Cooling System
  • Yixing Boyu Electric Power Machinery Co., Ltd was established in 1994, a high-tech enterprise in China, More than 27years experience.
  • Our products have been used in 500KV/330KV/220KV/110KV and below voltages transmission line stringing project, providing perfect products and after sales services for safe operation of electrical network.
  • Boyu has more than 160 employees, including 16 engineers.

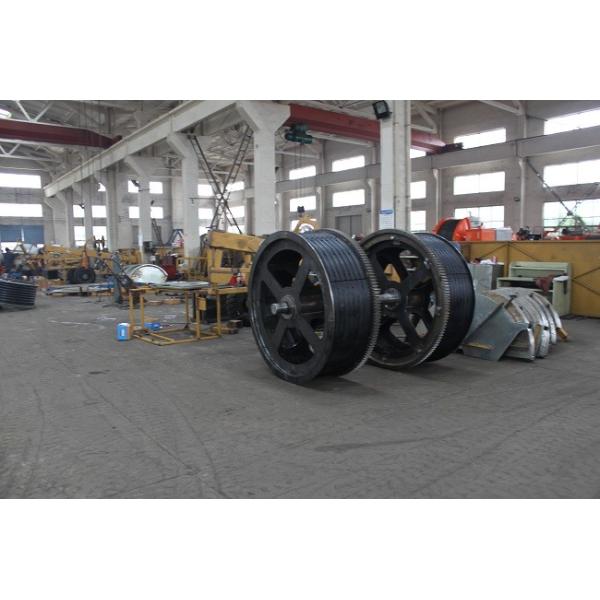

  • Boyu has more than 40 sets of processing equipment, including 35 sets of mechanical processing equipment (including lathes, files, planers, grinders, etc.), and 2 sets of vertical test equipment.
