TY2x45TP Diesel 118kw 158hp Overhead Line Stringing Equipment
TY2x45TP Diesel 118kw 158hp Overhead Line Stringing Equipment
TY2x45TP Diesel 118kw 158hp Overhead Line Stringing Equipment
TY2x45TP Diesel 118kw 158hp Overhead Line Stringing Equipment
Specifications
Brand Name :
Boyu
Model Number :
TY2x45TP
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Bull-wheel diameter :
1500mm
Max rope diameter :
18mm
Max conductor diameter :
40mm
Max pull :
2x45kN/1x90kN
Max tension :
2x45kN/1x90kN
Overall dimension (length*width*height) :
4700×2300×2700mm
Diesel :
118kw(158hp)
Engine :
Cummins
hydraulic pump :
German Rexroth
Type :
Stringing Equipment Hydraulic Puller Tensioner
Description

Overhead Line Stringing Equipment TY2x45TP Diesel 118kw(158hp) Hydraulic Puller Tensioner

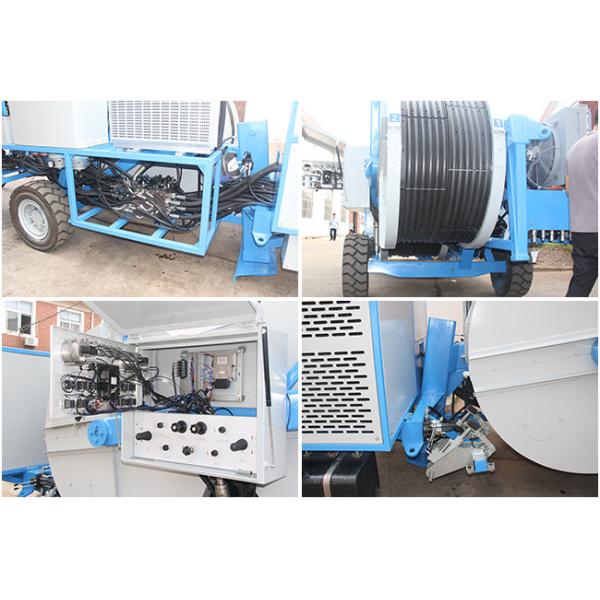

TY2x45TP Hydraulic Puller-Tensioner

The machine is suitable to string one or two ropes or bundled conductors with two pairs of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof nylon sectors. The machine is completely electronically controlled.

Characteristics

Bull-wheel diameter: 1500mm

Max rope diameter : 18mm

Max conductor diameter: 40mm

Total weight: 6200kg

Overall dimension (length*width*height): 4700×2300×2700mm
Performance

Puller

Max pull: 2x45kN/1x90kN

Speed at max pull: 2.4km/h

Max speed: 5km/h

Pull at max speed: 2x22kN/1x44kN

Tensioner

Max tension: 2x45kN/1x90kN

Max speed: 5km/h
Engine

Diesel 118kw(158hp)

Cooling system water

Electrical system 24V
Main configuration

Engine: Cummins

hydraulic pump: German Rexroth

Main motor: German Rexroth

speed reducer: German Rexroth

Hydraulic meter: German

Operating handle: German Rexroth
Hydraulic Transmission
2 closed hydraulic circuit allows step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Digital meter counters

Control instruments for hydraulic system and diesel engine

Rigid axles for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control 2 reel stands with hydraulic head or 2 reel winders with independent controls

Hydraulic front stabilizer

Grounding connection point
Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp(extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

TY2x45TP Diesel 118kw 158hp Overhead Line Stringing Equipment

Yixing Boyu Electric Power Machinery Co., Ltd. was established in 1994, is a manufacturer specializing in the research, development and production of CE machinery.

We are located in a beautiful and rich city: Yixing City. We are a high-tech enterprise in Jiangsu Province with convenient transportation. All our products meet international quality standards and have been greatly appreciated in different markets around the world.

1. The main configuration of our machine comes from Germany and the United States

  • Engine: Cummins, USA
  • Main pump: German Rexroth
  • Main motor and reducer: German Rexroth
  • Tailstock lifting motor: Eaton, USA
  • Hydraulic meter: Germany

2. Our company was established in 1994 and has 27 years of rich experience in this field. Our products are sold to distant markets: Sudan, Kenya, Angola, Pakistan, Myanmar, India, Mexico, Germany, etc. Our products are also very popular in China.

3. We have a one-year quality guarantee. If the internal components fail within one year, we will exchange for another one for free.

4. After the warranty period, we can provide the buyer with specific components at the price.
