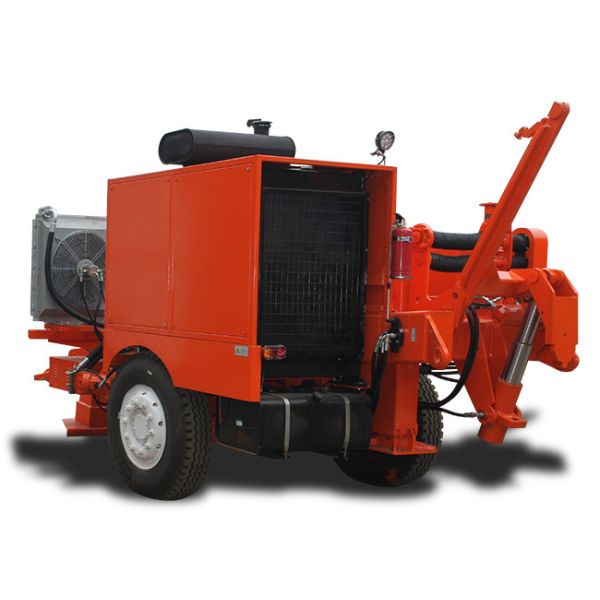

TY180 Max Intermittent Pull 190kN Power Line Stringing Equipment
TY180 Max Intermittent Pull 190kN Power Line Stringing Equipment
TY180 Max Intermittent Pull 190kN Power Line Stringing Equipment
TY180 Max Intermittent Pull 190kN Power Line Stringing Equipment
Specifications
Brand Name :
BOYU
Model Number :
TY180
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15- 30 days
Packaging Details :
Container
Max intermittent pull :
190kN
Max continuous pull :
180kN
Overall dimension (length*width*height) :
5000x2300x2500mm
Max diameter of rope reel :
1400mm
Bull-wheel diameter :
750mm
Diesel :
325hp
Electrical system :
24V
Engine :
Cummins
Description

Power Line Stringing Equipment TY180 Max Intermittent Pull 190kN Hydraulic Puller

TY180 Hydraulic Puller

  • The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands;
  • besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains, suitable for use at altitudes up to 1500 meters above sea level.

Characteristics

Bull-wheel diameter: 750mm

Groove number: 10

Max rope diameter : 28mm

Max diameter of rope reel: 1400mm

Total weight: 6700kg

Overall dimension (length*width*height): 5000x2300x2500mm

Performance

Max pull: 190kN

Max continuous pull: 180kN

Speed at max pull: 2.5km/h

Max speed: 6km/h

Pull at max speed: 75kN

Engine

Diesel 325hp Euro III, 4-stroke cycle, turbo-charged

Cooling system liquid

Electrical system 24V

Main configuration

Engine: Cummins

hydraulic pump: German Rexroth

Main motor: German Rexroth

speed reducer: German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic meter: German

Operating handle: German Rexroth

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic front stabilizer, Grounding connection point

Additional Devices

Lighting system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter (extra charge)

TY180 Max Intermittent Pull 190kN Power Line Stringing Equipment

Company Profile

History
1. Established in 1994, Yixing city Boyu power machinery Co., LTD
2. In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
3. In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
4. In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
5. In 2009 reworded significant achievement in Wuxi city
6. In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
7. In 2010 achieved the national ministry of science and technology innovation in science and technology project.
8. To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
