2x35kN Overhead Line Stringing Equipment Hydraulic Cable Tensioner
2x35kN Overhead Line Stringing Equipment Hydraulic Cable Tensioner
2x35kN Overhead Line Stringing Equipment Hydraulic Cable Tensioner
2x35kN Overhead Line Stringing Equipment Hydraulic Cable Tensioner
Specifications
Brand Name :
BOYU
Model Number :
TY2x35
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Type :
Hydraulic Cable Tensioner
Max intermittent pull :
2x40kN
Max continuous pull :
2x35kN
Speed at max pull :
2.5km/h
Max speed :
5km/h
Pull at max speed :
2x20kN
Max reverse pulling force :
2x30kN
Max reverse pulling speed :
5km/h
Description

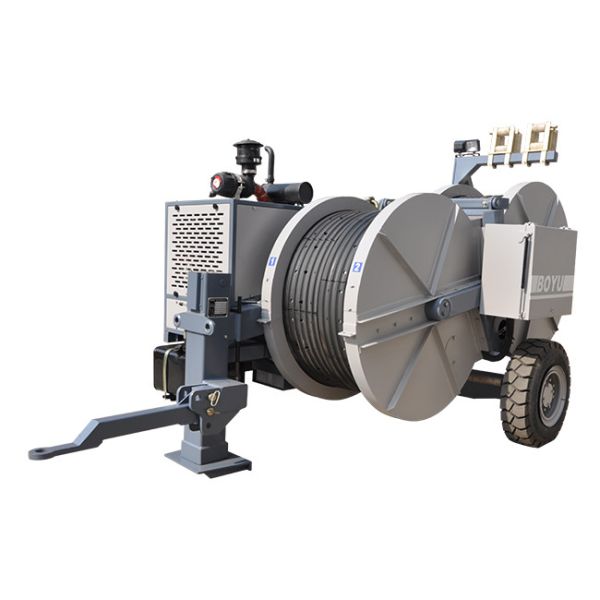

Hydraulic Cable Tensioner For Overhead Line Stringing Equipment Max Continuous Pull 2x35kN

The machine can tension double-bundle conductors of 630mm2 and below in mountainous and hilly areas, double-bundle conductors of 720mm2 and below on flat ground and 720mm2 conductors in different terrains. In addition, it can also be used to pull OPGW or ADSS optical cables and 500kV traction ropes in various terrains.

Characteristics

  1. Bull-wheel diameter: 1300mm
  2. Max conductor diameter: 40mm
  3. Groove number: 2x5
  4. Total weight: 4500kg
  5. Overall dimension (length*width*height): 4300*2250*2700mm

Performance

  1. Max intermittent pull: 2x40kN
  2. Max continuous pull: 2x35kN
  3. Speed at max pull: 2.5km/h
  4. Max speed: 5km/h
  5. Pull at max speed: 2x20kN
  6. Max reverse pulling force: 2x30kN
  7. Max reverse pulling speed: 5km/h

Engine

  1. Diesel: 77kw(103hp)
  2. Cooling system: water
  3. Electrical system: 24V

Main configuration

  1. Engine: Cummins
  2. Hydraulic meter: German
  3. Operating handle: German Rexroth
  4. Main motor:German Rexroth/French Leduc
  5. Speed reducer: German Rexroth / Italy Brevini
  6. Hydraulic pump: German Rexroth/Dnish Danfoss

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Digital speed and meter counter

Grounding connection point

Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices

Lighting system for the trailer

Air brake system for the trailer (extra charge)

2 hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller

2x35kN Overhead Line Stringing Equipment Hydraulic Cable Tensioner

BOYU Overseas Market
2x35kN Overhead Line Stringing Equipment Hydraulic Cable Tensioner
Asia:
South korea, Philippines, Pakistan, India, Thailand, Cambodia, Viet nam, Indonesia, Malaysia, Nepal, Sri Lanka, Turkey, Jordan, Tajikistan, Saudi Arabia
Europe:
Poland, United Kingdom
America:
Mexico, Bolivia, United state, Ecuador, Chile, Peru, Brazil, Panama, Argentina, Honduras
Africa:
Algeria, Egypt, Tanzania, Kenya, Ethiopia, Angola, Sudan
Australia:
Australia
Branch Indonesia Jakarta office
India Delhi office

We started business in the Philippines in 2014, and our clients include Meralco, Ferrowelds, MB Versoza, Hansei, Jay Engineering, WYN power, Multi Discovery and Sta. Clara et al. (Meralco engineer performs inspection).

Beginning in 2019, we participated in the international bidding of Bolivian and Pakistani government companies. We won the bid from Bolivia "ENDE Transmision" and entered Pakistan "NTDC"

Our main customer STATE GRID is No. 2 of the 500 TOP Companies in the world.
