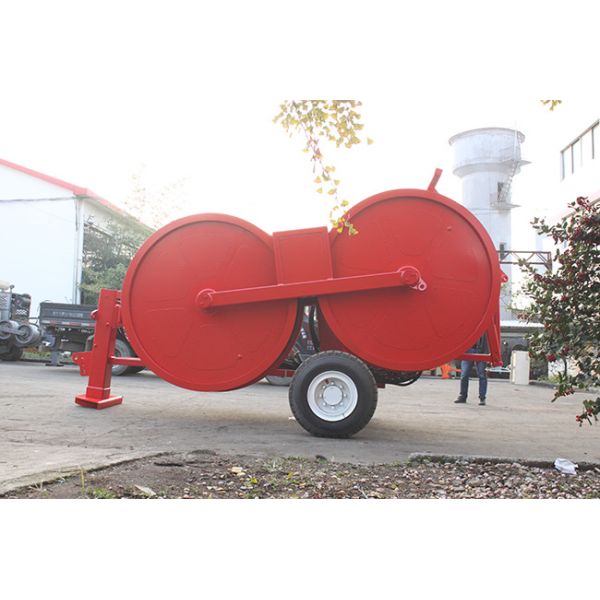

30kn Max Tension Hydraulic Cable Tensioner For Overhead Stringing
30kn Max Tension Hydraulic Cable Tensioner For Overhead Stringing
30kn Max Tension Hydraulic Cable Tensioner For Overhead Stringing
30kn Max Tension Hydraulic Cable Tensioner For Overhead Stringing
Specifications
Brand Name :
Boyu
Model Number :
TY1x30D-1800-5
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Type :
Hydraulic Cable Tensioner Machine For Overhead Stringing
Max continuous tension :
30kN
Max speed :
5km/h
Pull at max speed :
15kN
Groove number :
5
Max conductor diameter :
40mm
Engine :
Single cylinder diesel engine
Hydraulic meter :
German
Description

30kN Max Tension Hydraulic Cable Tensioner Machine For Overhead Stringing

Performance

Max continuous tension: 30kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Pull at max speed: 15kN

Max reverse pulling force: 20kN

Characteristics

Bull-wheel diameter: 1800mm

Max conductor diameter: 40mm

Groove number: 5

Total weight: 3200kg

Overall dimension (length*width*height): 4500*2000*2500mm

Main configuration

Engine: Single cylinder diesel engine

Hydraulic pump: Tianjin Parker

Main motor: Tianjin Parker

Speed reducer: German Rexroth / Italy Brevini

Hydraulic meter: German

Engine

Single cylinder diesel engine: 18kw(25hp)

Electrical system: 12V

Hydraulic Transmission

The machine can realize step less speed
The machine is provided with tension presetting system

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Grounding connection point

Additional Devices

Air brake system for the trailer (extra charge)

Hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h


30kn Max Tension Hydraulic Cable Tensioner For Overhead Stringing

Customer Support

Customers are our first priority

  • Our contacts will try their best to solve the problems encountered by customers to ensure that our customers are satisfied without any commitment from you. An introductory course has been planned for all customers who have purchased Boyu machines. We provide free technical support via phone or email. Our customers can also download operation and maintenance videos from our website.
  • We will provide some easily damaged equipment parts to ensure normal operation.
  • If there are any major quality problems during the warranty period, Boyu will also provide online video services after receiving notification from the buyer within 48 hours.
  • If any other quality problems occur during the warranty period, BOYU will provide online video services after receiving notification from the buyer within 24 hours.
  • If quality problems such as design, manufacturing, functions or procedures occur during the warranty period, Boyu shall bear full responsibility and bear all economic losses caused thereby.
  • BOYU will provide the buyer with a lifetime discount price, including materials and spare parts used for system operation and equipment maintenance, and guarantee 7-day express delivery.

Training course

Get the best performance from Boyu machine

Boyu is not a "simple manufacturer"-Boyu is your best partner! Our professional team can provide all customers with their expertise and accommodation by providing technical courses for up to one month. From operation to maintenance, Boyu technical training courses are also tailored according to different knowledge levels and customer goals.
