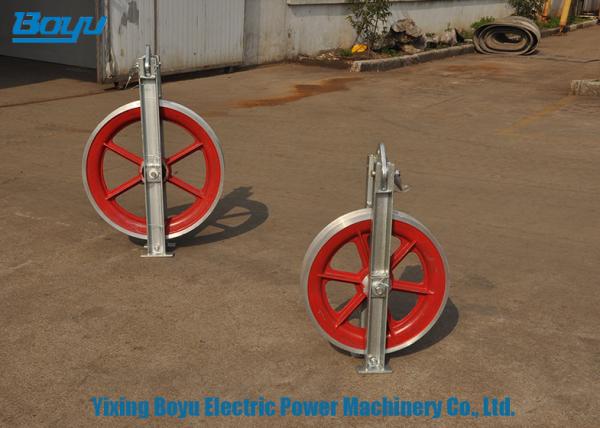

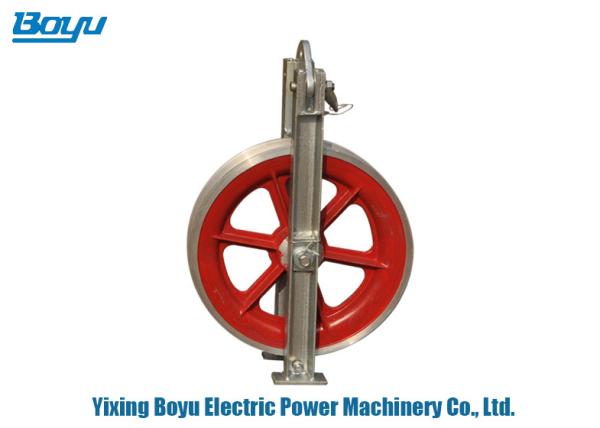

Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
Specifications
Brand Name :
Boyu
Model Number :
SHD-160X40
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000pieces per month
Delivery Time :
10-30days
Packaging Details :
Carton
Keyword :
Aluminum Conductor Pulleys
Wheel size :
160*40mm
Conductor size :
95-120mm2
Rated load :
10kN
Weight :
3.1kg
Wheel material :
Aluminum
Description

Transmission Line Stringing Tools Stringing Block Single Aluminum Conductor Pulley

Model

Wheel size Diameter x Width

(mm)

Conductor size

(mm2)

Rated load

(kN)

Weight

(kg)

 Wheel material
SHD-120X30 120x30 25~70 5 2.1 Aluminum
SHD-160X40 160X40 95~120 10 3.1
SHD-200X40 200X40 150~240 15 3.7
SHD-200X60 200X60 150~240 15 4.1
SHD-250X40 250X40 150~240 20 5.1
SHD-250X60 250X60 300~400 20 5.4
SHD-270X60 270X60 300~400 20 6.7
SHD-320X60 320X60 300~400 20 10.4
SHD-400X80 400X80 400~500 20 11.9
SHDN-120X30 120x30 25~70 5 1.5 Nylon
SHDN-160X40 160X40 95~120 10 2.3
SHDN-200X40 200X40 150~240 15 2.5
SHDN-200X60 200X60 150~240 15 3.0
SHDN-250X40 250X40 150~240 20 3.6
SHDN-250X60 250X60 300~400 20 3.8
SHDN-270X60 270X60 300~400 20 4.3
SHDN-320X60 320X60 300~400 20 7.5
SHDN-400X80 400X80 400~500 20 8
SHD-508X75 508X75 ≤400 20 22.3 Aluminum
SHD-660X100 660X100 ≤500 20 30
SHDN-508X75 508X75 ≤400 20 18 Nylon
SHDN-660X100 660X100 ≤500 20 20
SHDN-822X110 830X110 ≤630 30 25
SHDN-916X110 916X110 ≤800 50 45
SHDN-1040X125 1040X125 ≤1000 55 105
SHDN-1160X150 1160X150 ≤1250 60 165

Stringing Block Transmission Line Stringing Tools Single Aluminum Conductor Pulley
