Transmission Line Tool Cable Sleeve Connector Temporary Mesh Sock Joints
Transmission Line Tool Cable Sleeve Connector Temporary Mesh Sock Joints
Transmission Line Tool Cable Sleeve Connector Temporary Mesh Sock Joints
Transmission Line Tool Cable Sleeve Connector Temporary Mesh Sock Joints
Specifications
Brand Name :
Boyu
Model Number :
SLW-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
100Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000 Sets/Month
Delivery Time :
15~30 days
Packaging Details :
Carton
Product name :
Temporary Mesh Sock Joint
Conductor size (mm2) :
70-90
OPGW Dia.(mm) :
11-16
Rated load (kN) :
15
Breaking load (kN) :
30
OEM Service :
YES
Description

Transmission Line Tools Temporary Mesh Sock Joints Cable Sleeve Connector

One Head Type

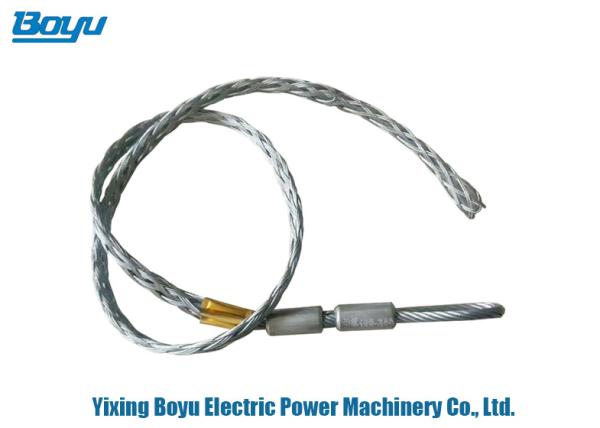

The one head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope.

They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.

Model Conductor size (mm2) OPGW Dia.(mm) Rated load (kN) Breaking load (kN)
SLW-1 25-70 6-11 10 20
SLW-1.5 70~90 11-16 15 30
SLW-2 120~150 14.5-17.5 20 40
SLW-2.5 185~240 18-22.5 25 50
SLW-3 300~400 23-29 30 60
SLW-4 500~630 30-35 40 80
SLW-5 720 50 125
SLW-7 900 70 175
SLW-8 1000~1120 80 200
