Red Overhead Line Stringing Tools Mechanical Drum Elevators Drum Hole 76mm
Red Overhead Line Stringing Tools Mechanical Drum Elevators Drum Hole 76mm
Red Overhead Line Stringing Tools Mechanical Drum Elevators Drum Hole 76mm
Red Overhead Line Stringing Tools Mechanical Drum Elevators Drum Hole 76mm
Specifications
Brand Name :
Boyu
Model Number :
TYCVI-228
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Drum max size :
2000mm
Drum max width :
1100-1300mm
Drum hole :
76mm
Capacity :
40kN
Brake force :
2kN
Weight :
290kg
Description

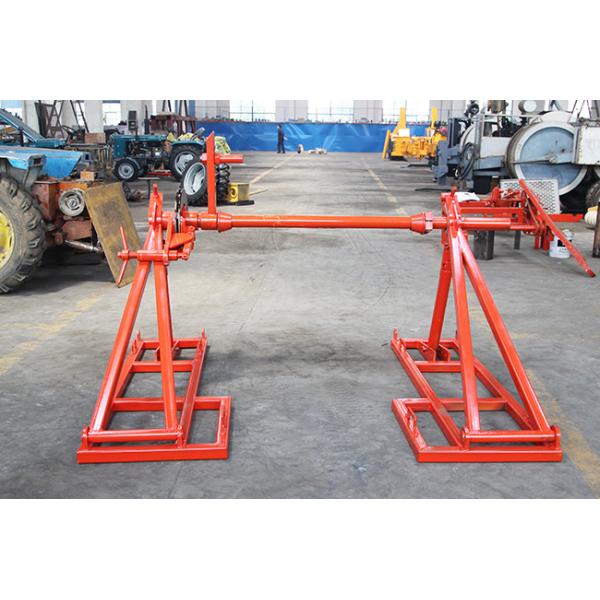

TYCVI-228 Transmission Line Stringing Tools Mechanical Drum Elevators Drum Hole 76mm

1. Material: Welded steel
2. Hydraulic
3. Capacity: 40kN
4. Wheel size: 1100~1300mm

The Drum elevators are made of welded steel with protective coating, the frame is completely detachable to reduce dimensions during transport.

Model Drum max size Drum max width Drum hole Capacity Brake force Rope speed Weight
mm mm mm kN kN m/min kg
TYCVI-228 2000 1100-1300 76 40 2 80 290
TYCVI-229 2000 1500-1700 83 70 2 80 500

Red Overhead Line Stringing Tools Mechanical Drum Elevators Drum Hole 76mm
