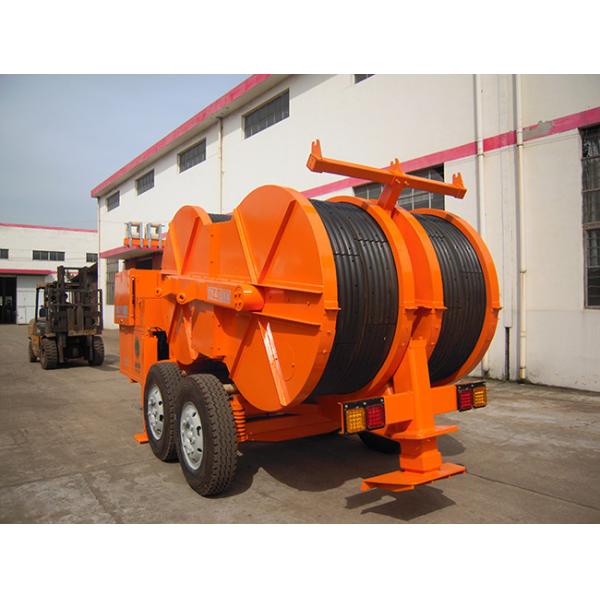

Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
Specifications
Brand Name :
BOYU
Model Number :
TY4x50-22
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
25-35 days
Packaging Details :
Container
Max tension :
4x50 (2x100) KN
Engine :
Cummins
Diesel :
77kw(103hp)
Max reverse pulling speed :
1.25km/h
Max conductor diameter :
40mm
Groove number :
4X5
Description

TY4x50 Tension Stringing Equipment Diesel 77kw(103hp) Hydraulic Tensioner Max tension 4x50 (2x100) KN

Engine Cummins
Hydraulic pump German Rexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexroth
Hydraulic meter German
Operating handle German Rexroth
Diesel 77kw(103hp)
Cooling system water
Electrical system

24V

Max tension 4x50 (2x100) KN
Max continue tension 4x40 (2x80) KN
Speed at max continue tension 2.5km/h
Max feeding speed 5km/h
Corresponding tension 4x20 (2X40) KN
Max reverse pulling force 4X40kN /2x80kN
Max reverse pulling speed 1.25km/h
Bull-wheel diameter 1500mm
Groove number 4X5
Max conductor diameter 40mm
Total weight 13000kg
Overall dimension (LxWxH) 5900×2300×2700mm

Hydraulic Transmission

  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.

Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN

Model

Max

intermittent tension

 Max continuous tension Speed at max tension Max speed Tension at max speed Max reverse pulling force Max reverse pulling speed Diesel Cooling system Electrical system
kN kN km/h km/h kN kN km/h kw(hp) V
TY1X30 30 2.5 5 15 20 12(16) 12
TY1X40 45 40 2.5 5 20 35 77(103) Water 24
TY1X50 50 40 2.5 5 25 45 2.4 77(103) Water 24
TY140IV 1x140 1x120 2.5 5 35 1x120 1.2 77(103) Water 24
TY2X35

2x40/

1x80

2x35/

1x70

 2.5 5

2x20/

1x40

2x30/

1x60

 5 77(103) Water 24
TY2X40

2x45/

1x90

2x40/

1x80

 2.5 5

2x20/

1x40

2x35/

1x70

 5 77(103) Water 24
TY2X50

2x55/

1x110

2x50/

1x100

 2.5 5

2x25/

1x50

2x45/

1x90

 5 77(103) Water 24
TY2X70

2x70/

1x140

2x65/

1x130

 2.5 5

2x25/

1x50

2x60/

1x120

 5 77(103) Water 24
TY2x70IV

2x70/

1x140

2x65/

1x130

 2.5 5

2x25/

1x50

2x60/

1x120

 5 77(103) Water 24
TY2X90

2x100/

1x200

2x90/

1x180

 2.5 5

2x40/

1x80

2x80/

1x160

 2

130kw

(2500r/min)

 Water 24
TY4x50

4x50/

2x200

4x40/

2x80

 2.5 5

4x20/

2x40

4x40/

2x80

 1.25 77(103) Water 24
