Overhead Hydraulic Tension Stringing Equipment meter German 50kN 5T

Quick details

1. HydraulicTension Stringing Equipment
2. Hydraulic Tensioner
3. Max tension: 1x50kN

4.Max speed: 5km/h

5.Tension at max speed: 1x25kN

6. Diesel: Cummins 77kw(103hp)

7. Groove number: 6
8. Bull-wheel diameter: 1300/1500mm
9. Engine: Cummins

10. Boyu Brand

Main configuration

• Engine: Cummins
• Hydraulic pump: German Rexroth
• Main motor: German Rexroth
• Operating handle: German Rexroth
• Speed reducer: German Rexroth
• Hydraulic meter: German

Description

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

Engine

• Diesel 77kw(103hp)
• Cooling system water
• Electrical system 24V

Performance

• Max intermittent tension: 1x50kN
• Max continuous tension: 1x40kN
• Speed at max tension: 2.5km/h
• Max speed: 5km/h
• Tension at max speed: 1x25kN
• Max reverse pulling force: 1x45kN
• Max reverse pulling speed: 5km/h

Hydraulic Transmission

• The machine can realize step less speed.
• The machine is provided with tension presetting system.

Additional Devices

• Lighting system for the trailer
• Air brake system for the trailer(extra charge)​
• Hydraulic conductor clamps for drum change
  operations (extra charge)
• Swivel guide rope roller
• Trailer for towing at max speed of 30 km/h
• Digital speed and meter counter

Characteristics

• Bull-wheel diameter: 1300/1500mm
• Max conductor diameter: 55mm
• Max Optical fiber cable diameter: 21mm
• Groove width: 68mm
• Groove number: 6
• Total weight: 2400kg
• Overall dimension (length*width*height): 4000×1900×2300mm

Configuration

• Hydraulic dynamometers
• Hydraulic oil cooling system
• Mechanical meter counters
• Grounding connection point

Manufacturer Introduction

Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. From our factory to Shanghai about 3 hours by car.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

Hydraulic Tension Stringing Equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system

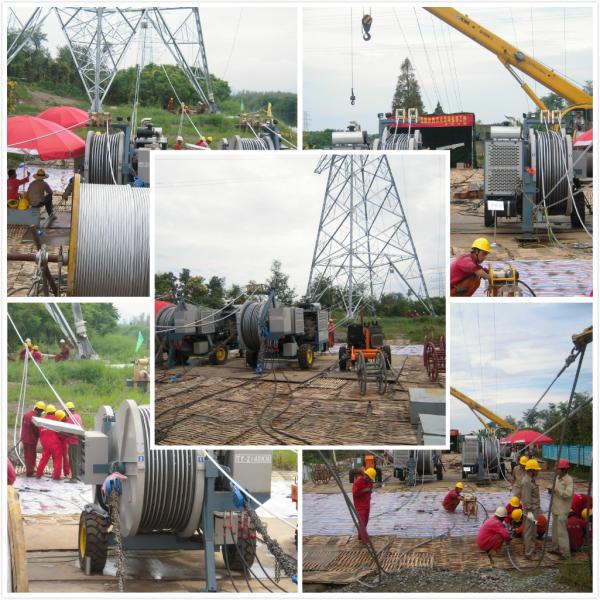

Work site
