TY180 Hydraulic Puller Machine With Cummins Engine For Overhead Line
TY180 Hydraulic Puller Machine With Cummins Engine For Overhead Line
Specifications
Brand Name :
BOYU
Model Number :
TY180
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Type :
Hydraulic Puller Machine With Cummins Engine
Bull-wheel diameter :
750mm
Overall dimension (length×width×height) :
4800×2350×2550 mm
Cooling mode :
forced cooling
Speed reducer :
German Rexroth
System working pressure :
12Mpa
Description

TY180 Hydraulic Puller Machine With Cummins Engine For Overhead Line

Application:

Hydraulic tensioner machine is a kind of mechanical equipment which can provide resistance moment to make conductors, ground wires and optical cables spread through double drums under a certain tension. It is used to tense one or more conductors, ground wires and optical cables to obtain good tension state.

Purposes and characteristic

The machine is a kind of high efficiency electric construction machinery, with good entire performance, high configuration of main functional components, large power reserve, quick pulling speed and wide application. The machine is mainly matched with small efficiency tensioner, is used for the stringing of pulling ropes and also pulls conductor under meeting pulling force. It can satisfy the stringing of 220KV double-bundle LGJ-630 and below conductor in mountainous area and foothills, 220KV double-bundle LGJ-720 and below conductor in flatlands, OPGW or AESS optical cable in various terrains and single conductor LGJ-720 and below in mountainous area and foothills, and 500KV and below wire pulling ropes in various terrains.

Structure parameter
Bull-wheel diameter 750 mm
Groove number 10
Max diameter of applicable pulling rope 30 mm
Weight 7800 kg
Overall dimension (length×width×height) 4800×2350×2550 mm

Main technical performance parameter

Max intermittent pulling force

180 kN

Max continuous pulling force

150 kN

Speed at max pull

2.5 km/h

Max speed

5 km/h

Pull at max speed

75 kN

Drive system
Closed type circuit hydraulic drive system adjusts speed through hydraulic plunger pump with bi-directional variable displacement, reduces speed through planet gear and drives pulling wheels to rotate in positive and negative directions through the first level gear terminal drive.
Cooling mode forced cooling
Main pump
Model sloping cam plate bi-directional plunger pump (German Rexroth)
Type A4VG250HDDT1/32R
Hydraulic motor
Model inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)
Type A2FE160/61W-VZL106
Speed reducer
Model two-grade planet gear reduction (German Rexroth)
Type GFB60T2B24-06
Reduction ratio 34
Brake response pressure 1.8Mpa

Engine
Type Cummins 6L8.9AA-C325
Cylinder diameter × stroke 114×144.5 mm
Total air output 8.9 L
Rated speed 2200 r/min
Rated power (one hour power) 239 kw
Max torque 1230 Nm
Rotary speed when maximum torque 1400 r/min
Fuel consumption rate (bench test) 225g/kw.h

Electric system
System voltage 24V
Storage battery 6－QA-120(2 pcs)
Engine starting 24V electric starting

Auxiliary oilway hydraulic system
Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.
System working pressure 12Mpa
Duplex gear pump 1PF2G2-4X/016＋014RR20MRL
Fan motor GM5-12-1FE13-S-20
Hoisting motor J2K-305
Sleeve extension oil cylinder 3TG110×250
Radiator

B5024

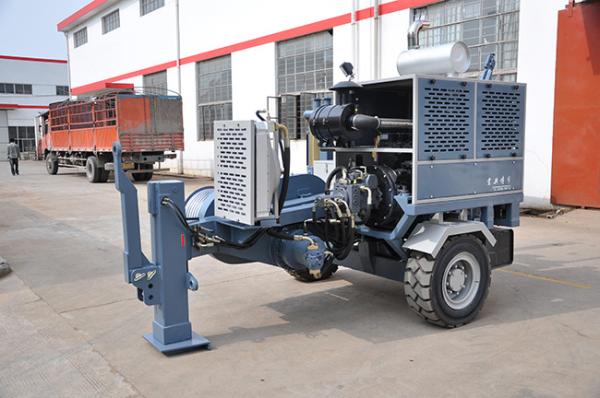

TY180 Hydraulic Puller Machine With Cummins Engine For Overhead Line
