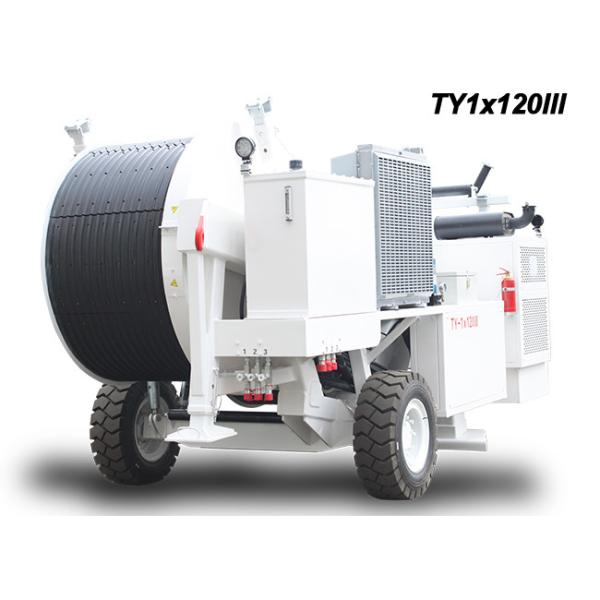

Overhead Stringing Hydraulic Tensioner Germany Rexroth Hydraulic Motor
Overhead Stringing Hydraulic Tensioner Germany Rexroth Hydraulic Motor
Overhead Stringing Hydraulic Tensioner Germany Rexroth Hydraulic Motor
Overhead Stringing Hydraulic Tensioner Germany Rexroth Hydraulic Motor
Specifications
Brand Name :
BOYU
Model Number :
TY1x120III
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Type :
Hydraulic Cable Tensioner Machine For Overhead Stringing
Max intermittent tension :
130KN
Max continuous tension :
120KN
Transport dimensions :
5300*2300*2600mm
Engine :
Cummins 4BTA3.9-C130
Rated power :
97kw/2500rpm
Description

TY1x120III 120KN Hydraulic Cable Tensioner Machine For Overhead Stringing Germany Rexroth Hydraulic Motor

Performance Parameter

Main technical performance
Maximum intermittent tension: 130KN
Maximum continuous tension: 120KN
Corresponding speed: 2.5km/h
Maximum payoff speed: 5km/h
Maximum back pulling force: 90kn
Corresponding tension: 60KN
Diameter of tensile force wheel: 1500mm
Maximum applicable diameter of wire: 40mm
Maximum back pulling speed: 3km/h
Total weight: 8100kg
Groove numbers: 15
Transport dimensions: 5300*2300*2600mm
Engine
Model: Cummins 4BTA3.9-C130
Rated power: 97kw/2500rpm
Transmission System
With closed double-loop hydraulic transmission system and planet decelerator, tension wheel is driven by primary gear. With inversion, the magnitude of reverse traction force is led by exit pressure of pump.

In tension condition, hydraulic motor rotation is driven by the tension wheel; the magnitude of tension is controlled by regulating the motor exit pressure.
Main pump
Type: Hydraulic control bidirectional variable plunger pump(Germany Rexroth)
Model: A4VG71EP4/32R
Hydraulic motor
Type: Two-way Quantitative Plunger Piston Motor (Germany Rexroth)
Model: A2FM180/61W
Speed reducer
Type: planet Gear Decelerator (Italy Bonfiglioli)
Model: 310 L2
Reduction ratio: 28
Brake opening pressure: 1.8MPA
Electrical System
System voltage: 24V
Storage battery: 6-QA-110(2 sets)
Diesel engine starting: 24V electric starting
Oil and Capacity Table
Oiling position Kinds of oil Capacity Oil level observation
Oil tank

Winter:-10# or -35# light diesel oil;

Summer:0# or 10# light diesel oil;

 145L Oil level gauge
Hydraulic oil tank Great Wall Brand 46# Hydraulic Oil 250L Oil-height detector
Engine sump CD level special for diesel engine 10.5L Oil gauge dipstick
Oil lubrication position N0.2 lubricating oil(GB7323-89) Fully filled

Overhead Stringing Hydraulic Tensioner Germany Rexroth Hydraulic Motor

Operation and Use

Correct operation and use as well as fine maintenance will make machine in optimum state, bring into play due efficiency and using life, reduce failures and machine-stopping maintenance time and lower use cost to produce maximum effect and profit, so you shall make yourself master of operation and use method of the machine to avoid unnecessary trouble and loss arising from misoperation or mistakes.

Special Attention

The force of the tension machine may be large, so it has particularly high request for ground anchor to ensure the reliability of the ground anchor.

In mountains and hilly areas, due to the space limitations, the tension machine can’t be in place at the center of the line, it has to be pushed to the right place by manpower. During this process, the potential energy of the machine should be paid particular attention to.
