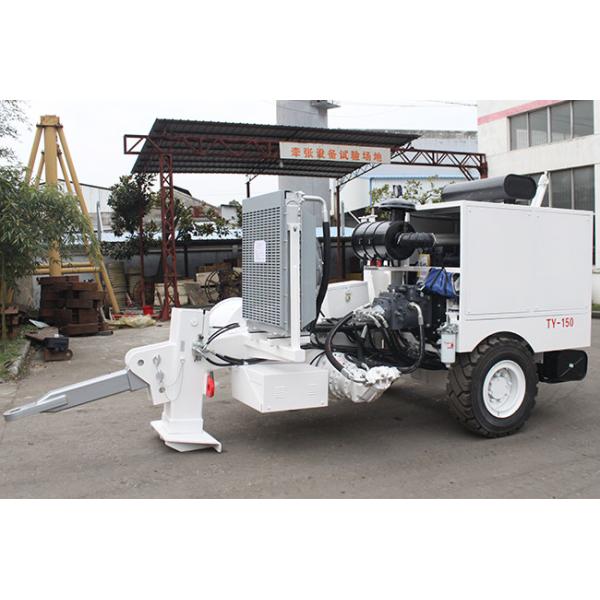

TY150 Transmission Line Equipment 150kN Hydraulic Puller
TY150 Transmission Line Equipment 150kN Hydraulic Puller
TY150 Transmission Line Equipment 150kN Hydraulic Puller
TY150 Transmission Line Equipment 150kN Hydraulic Puller
Specifications
Brand Name :
Boyu
Model Number :
TY150-2
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Type :
Transmission Line Stringing Equipment Hydraulic Puller
Max intermittent pulling force :
150kN
Overall dimension (length×width×height) :
4800×2350×2470 mm
Pulling wheel diameter :
600mm
Groove number :
9
Weight :
6600kg
Description

TY150 Transmission Line Stringing Equipment 150kN Hydraulic Puller

In tension stringing construction, puller is one indispensable tool of main tools and its performance has direct impact on quality and progress of stringing construction. Important components of the puller, with reasonable design and high safety coefficient, are selected from international famous professional manufacturers such as German Rexroth, German , American Eton, Italian ATOS; other parts and auxiliary equipment are also selected from domestic excellent products, in addition to strict production management by this company, thereby it effectively guarantees fine performance and reliable quality of the product and wins the flavors of numerous customers.

Purposes and characteristic
The machine is a kind of high efficiency electric construction machinery, with good entire performance, high configuration of main functional components, large power reserve, quick pulling speed and wide application. The machine is mainly matched with small efficiency tensioner, is used for the stringing of pulling ropes and also pulls conductor under meeting pulling force. It can satisfy the stringing of double-bundle LGJ-720 and below conductor in mountainous area and foothills, four-bundle LGJ-630 and below conductor in flatlands, OPGW or ADSS optical cable in various terrains, and 500KV and below wire pulling ropes in various terrains.
Performance parameter
Main technical performance parameter

Max intermittent pulling force: 150kN

Max continuous pulling force: 120 kN

Corresponding speed: 2.5 km/h

Max continuous tractive speed: 5 km/h

Corresponding pulling force: 60 kN
Structure parameter

Pulling wheel diameter: 600mm

Groove number: 9

Max diameter of applicable pulling rope: 26mm

Weight: 6600kg

Overall dimension (length*width*height): 4800*2350*2470 mm

Hoisting mode: single point
Engine

Type: Cummins 6CTA8.3-C260

Model: Straight type six-cylinder pressurizing four-stroke diesel engine

Cylinder diameter * stroke: 114*135 mm

Total air output: 8.3 L

Rated speed: 2200 r/min

Rated power (one hour power): 194 kw

Max torque: 1135Nm

Rotary speed when maximum torque: 1500 r/min

Fuel consumption rate (bench test): 238g/kw.h

Cooling method: forced air cooling
Main pump

Model: sloping cam plate bi-directional plunger pump (German Rexroth)

Type: A4VG250EP4DT1/32R-NSF02F021
Hydraulic motor

Model: inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)

Type: A2FE180/61W-VZL106
Speed reducer

Model: two-grade planet gear reduction (German Rexroth made by Beijing sole investment plant)

Type: 310 L2

Reduction ratio: 21.8

Brake response pressure: 2.5Mpa
Auxiliary oilway hydraulic system

Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.

System working pressure: 12Mpa

Duplex gear pump: 1PF2G2-4X/016+014RR20MRL

Fan motor: GM5-12-1FE13-S-20

Hoisting motor: J2K-305

Sleeve extension oil cylinder: 3TG110×250

Radiator: B5024
Electric system

System voltage: 24V

Storage battery: 24V electric starting
