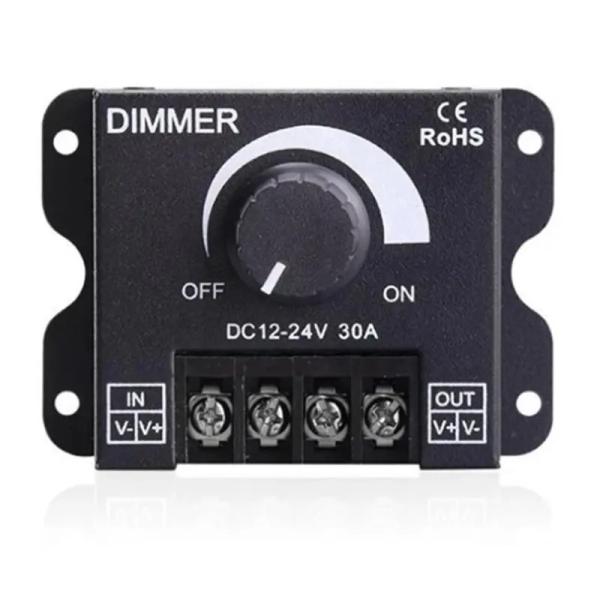

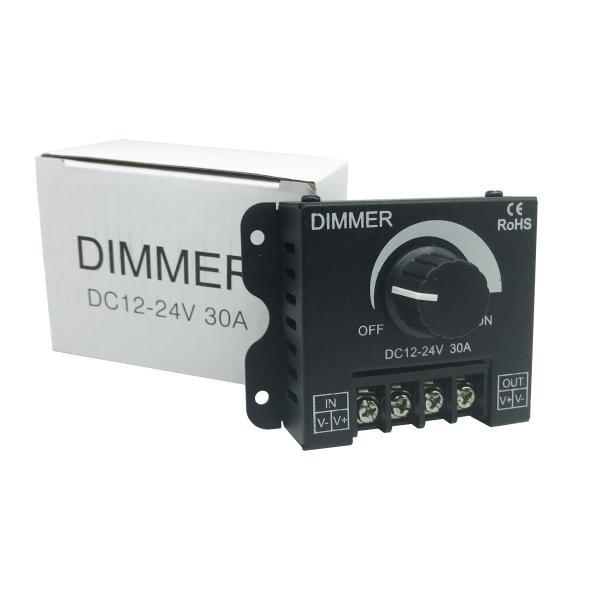

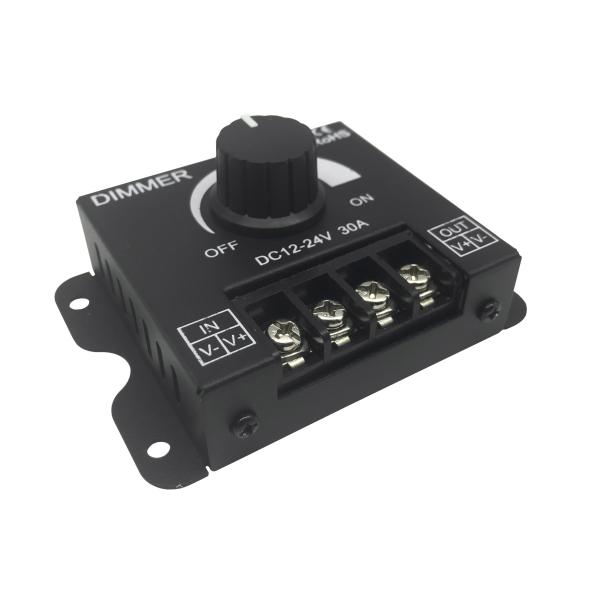

Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
Specifications
Model Number :
Dimmer Switch
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Packaging Details :
100pcs/box
Lighting solutions service :
Lighting and circuitry design
Type :
Manual Switch
Max. Load Power :
720W
Product name :
Led Dimmer
Output Current :
30A/CH
Output power :
12V<360W; 24V<720W
Working temperature :
-20~60°C
Application :
Single Color LED Strip
Input Voltage :
DC12V-DC24V
Size :
L86*W63*H20mm
Keyword :
Knob Dimmer
Function :
0~100% Dimming
Description

30A Led Controller Dimmer Dc12v 24v Led Monochrome Strip Light Brightness Stepless Dimmer

Description - Text Version

LED Single Color Knob Dimmer Trim Controller Switch Low Voltage DC12-24V 30A

Product introduction:

This is a monochromatic knob dimmer, using a high-speed microcomputer control chip, used to control various monochromatic lamps with LED as the light source, such as: LED soft light bar, LED hard light bar, LED module, indoor lighting, etc. . An indispensable product in the field of modern LED lighting; customers can adjust the brightness to their liking.

  1. 0-100% fine-tuning knob to control the light
  2. The shell is made of industrial iron, which is durable
  3. Using screw connection port, easy to install

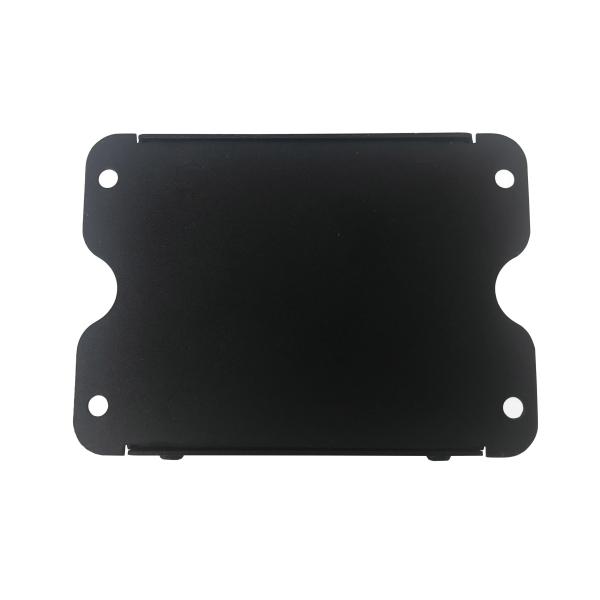

  4. The base has 4 fixing holes for easy fixing

Basic parameters:

  • Input voltage: DC12V-24V
  • Output current: 30A
  • Output power: 12V<360W; 24V<720W
  • Working temperature: -20~60C
  • Product size: L86*W63*H20mm
  • Package size: L115*W70*H38mm
  • Net weight: about 132g
  • Gross weight: about 150g

Specification

item

value

Warranty(Year)

1-Year

Lighting solutions service

Lighting and circuitry design

Product Weight(kg)

0.13

Place of Origin

China

Guangdong

Brand Name

MegBox

Type

MANUAL SWITCH

Max. Load Power

720W

Connection Mode

common anode

Product name

Led Dimmer

Output Current

30A/CH

Output power

12V<360W; 24V<720W

Working temperature

-20~60°C

Application

Single Color LED Strip

Input Voltage

DC12V-DC24V

Size

L86*W63*H20mm

Certificates

CE ROHS

Keyword

Knob Dimmer

Function

0~100% Dimming

Product Description

Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light

Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light

Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light

Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light

Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip LightBrightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light

Brightness Stepless LED Controller Dimmer 30A For LED Monochrome Strip Light
