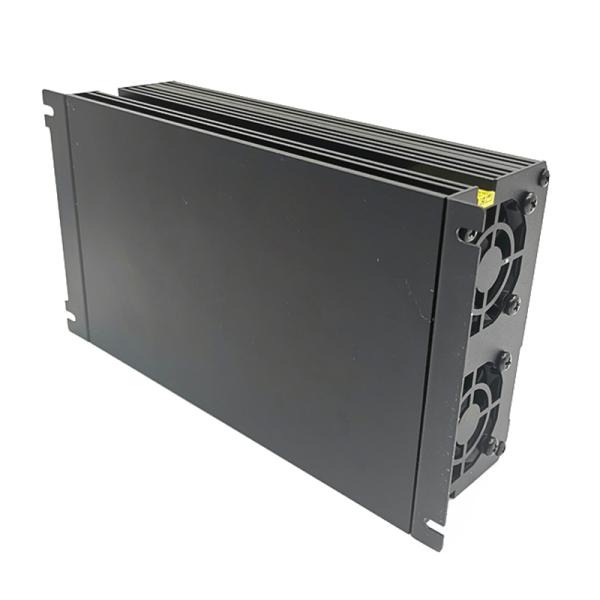

1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A
1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A
1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A
1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A
Specifications
Place of Origin :
Guangdong, China
Model Number :
S-1500-12
Certification :
CE
Packaging Details :
20pcs/box
Price :
Negotiation
MOQ :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Output Power :
1500W
Input Voltage :
AC200V-260V
Output Voltage :
12V
Output Frequency :
50-60Hz
Output Current :
125A
Product Name :
Chassis Switching Power Supply
Application :
LED Lighting
Warranty :
2 Years
Type :
AC DC Power Module Converter
Efficiency :
87%
Weight :
2KG
Size :
L247*W134*H70mm
Protection :
OCP OVP SCP OPP
Protections :
Short Circuit Overtemp Overload Overvolt
Description

1500W high power AC200V 260V to DC 12V 125A indoor switching power supply LED lighting electronic appliance adapter

Current Converter 200-260V AC to 12V DC 1500W 125A Indoor High Power Switching Power Supply

◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

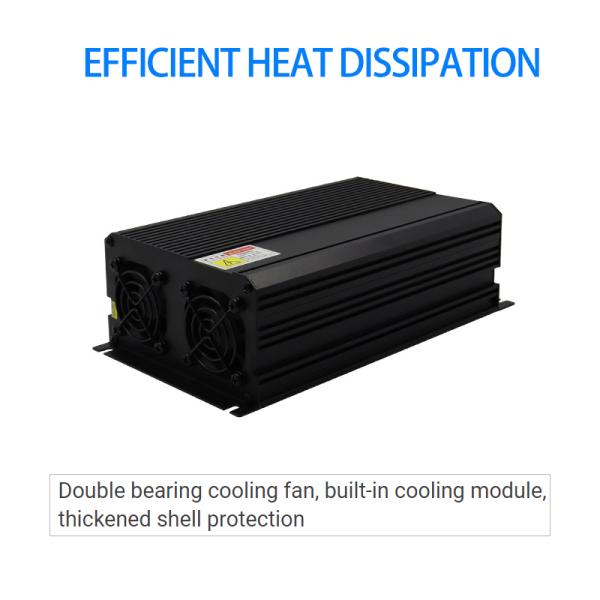

Thickened metal shell

◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

◆The chassis has a built-in cooling module and dual-bearing cooling fans for more efficient heat dissipation.

Featured Components

High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

Suitable for a variety of electronic devices

Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

Model

S-1500-12

Transistor connection

half bridge

The output voltage

12V (V)

Output Voltage Accuracy

98 (%)

Output current

0-125A (A)

Minimum number of packages

1

Input voltage range

AC200-260V

Installation method

screw installation

Regulation voltage

10%

Types of

AC/DC power supply

Efficiency

87 (%)

Voltage regulation

5 (%)

working frequency

47-63 (HZ)

Protection class

IP20

rated power

1500W

Cooling Fan Type

Built-in dual fans

certified product

ce ROHS

Dimensions

247*134*70MM

Working temperature

-40℃～65℃

weight

2KG

Reset method

self-healing

Overvoltage protection

Yes (>115%-135% rated output voltage)

Overload protection

yes (>105%-150% self-recovery)

Short circuit protection

Yes (lock protection)

Easy to install and easy to use

1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

Product Description

1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

1500W Power LED Switching Power Supply AC200V 260V To DC 12V 125A

Specification

item

value

Place of Origin

China

Guangdong

Brand Name

Megbox

Model Number

S-1500-12

Output Power

1500W

Output Type

Single

Input Voltage

AC200V-260V

Output Voltage

12V

Output Frequency

50-60Hz

Output Current

125A

Product Name

Chassis Switching Power Supply

Application

LED Lighting

Warranty

2 Years

Certification

CE

Type

AC DC Power Module Converter

Efficiency

87%

Weight

2KG

Size

L247*W134*H70mm

Protection

OCP OVP SCP OPP

Protections

Short Circuit Overtemp Overload Overvolt
