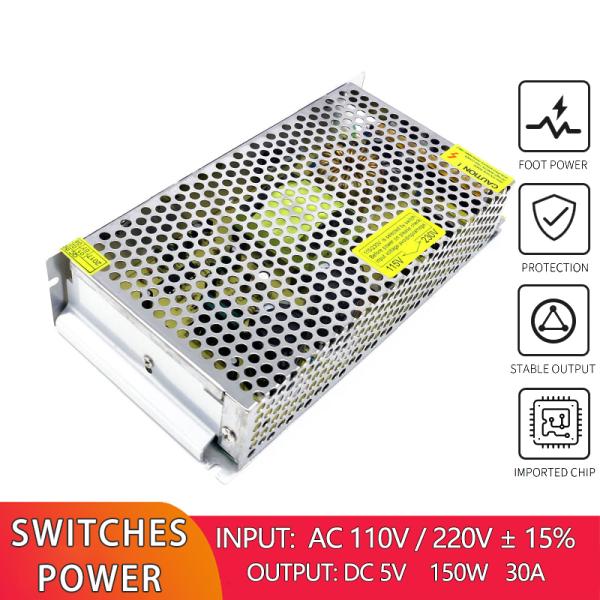

Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W
Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W
Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W
Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W
Specifications
Place of Origin :
Guangdong, China
Model Number :
S-150-5
Certification :
CE
Packaging Details :
Packed in a standard unisex cardboard box
Price :
Negotiation
MOQ :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Output Power :
150W
Input Voltage :
AC110/220V ±15%
Output Voltage :
5V
Output Frequency :
50-60Hz
Output Current :
30A
Product Name :
Chassis Switching Power Supply
Type :
AC DC Power Module Converter
Efficiency :
92%
Weight :
520g
Size :
L199*W98*H42mm
Protection :
OCP OVP SCP OPP
Protections :
Short Circuit Overtemp Overload Overvolt
Description

AC 110V or 220V to DC 5V 30A 150W Regulated Switching Power Supply Transformer Adapter LED Driver

AC to DC 5V 150W 30A LED Strip Driver Transformer

◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

Thickened metal shell

◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

Featured Components

High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W

Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W

Suitable for a variety of electronic devices

Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

Model

S-150-5

AC input voltage range(V)

AC110/220V±15%

AC Input current(max)

3.4A /AC220V;6.8/AC110V

Frequency (Hz)

50/60Hz

Efficiency

92% Typ(230VACFull Load)

Inrush current(A)

Cold-start 20A/230V

Leakage current(mA)

<3mA/240VAC

Output Voltage(V)

5V DC

Voltage Regulation

+10%,-10%

Output Current(A)

30A

Current Range (A)

0-30A

Rated Power(W)

150W

Start time,hold-up time(ms)

Ton≤1000ms,Td≥20ms @230Vac Full Load

Rise time(ms)

Typ:20ms @230Vac Full Load

Ripple/Noise(mVp-p)

120mVp-p

working Temperature (°C)

-40°C - +65°C(refer derating curve)

Storage Temperature(°C)

-20°C - +60°C

Humidity

20% - 90% RH non condensing

Over voltage Protection

>115%-135% Rated output voltage

Over load Protection

>105%-150% Auto recovery

Short circuit Protection

Latched

Size L*W*H(mm)

199*98*42mm

Weight

520g

Easy to install and easy to use

Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W

Product Description

Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W

Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W

Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W

Regulated LED Driver Switching Power Supply AC 110V 220V To DC 5V 30A 150W

Specification

item

value

Place of Origin

China

Guangdong

Brand Name

Megbox

Model Number

S-150-5

Output Power

150W

Output Type

Single

Input Voltage

AC110/220V ±15%

Output Voltage

5V

Output Frequency

50-60Hz

Output Current

30A

Product Name

Chassis Switching Power Supply

Application

LED Lighting

Warranty

2 Years

Certification

CE

Type

AC DC Power Module Converter

Efficiency

92%

Weight

520g

Size

L199*W98*H42mm

Protection

OCP OVP SCP OPP

Protections

Short Circuit Overtemp Overload Overvolt
