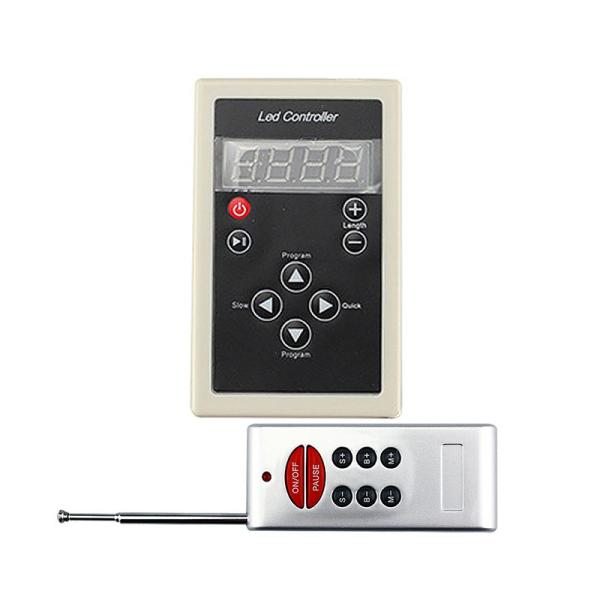

DC 12V Pixel Magic Color LED Controller With 133 Mode Control
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
Specifications
Place of Origin :
China
Price :
Negotiation
Certification :
CE
Model Number :
pixel controller
MOQ :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Packaging Details :
100pcs/box
Warranty(Year) :
1-Year
Lighting solutions service :
Lighting and circuitry design, Project Installation
Product Weight（kg） :
0.138
Connection Mode :
common anode
Product name :
LED Pixel Controller
Application :
2811 LED light strip
Output :
sets of SPI signals
Remote control size :
L85*W35*H15mm
Receiver size :
L92*W55*H25mm
Remote control distance :
about 20m
Support IC :
WS2811
Keyword :
2812 Symphony Light Strip
Description

Led Pixel Controller Dc12v Built-In 133 Mode Control For Rgb 1903 Magic Color Strip Light

Led Pixel Controller Dc12v Built-In 133 Mode Control For Rgb 1903 Magic Color Strip Light

Basic Parameters
1.Input voltage: DC12V
2.Output power: 2W
3. Output: Two sets of SP| signals
4. Remote control size: L85*W35*H15mm
5.Receiver size: L92*W55*H25mm
6. Packing size: L135*W80*H55mm
7. Net weight: 107g
8.Gross weight: 138g
9. Connection method: common anode
Connection method: LED light output,
DC12V IN power input
• Remote control battery: 1 12V23A battery (not included)
• Remote control distance: about 20m

•This controller is a pixel IC magic color controller, which can only control the magic color IC 2811/1903/1813 light strip;
*There are 100 preset programs, and the length of the program unit is adjustable;
•Built-in 133 cycle modes, and the running speed is also adjustable;
•The light bar can be cascaded infinitely;
•At the same time, it has the function of long-distance wireless remote control, and the function of shutdown memory and playback.
This controller can provide many gorgeous decoration schemes, which can be customized according to your own preferences
Choose different modes to meet the needs of different customers to the greatest extent.

Specification
item value
Warranty(Year)1 1Year
Lighting solutions service Lighting and circuitry design, Project Installation
Product Weight(kg) 0.138
Place of Origin China
Type Remote Control
Max. Load Power 24W
Connection Mode common anode
Product name LED Pixel Controller
Application 1813 LED light strip
Voltage DC12V
Output power 2W
Output sets of SPI signals
Remote control size L85*W35*H15mm
Receiver size L92*W55*H25mm
Remote control distance about 20m
Support IC 2811
Keyword 1903 Symphony Light Strip
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
DC 12V Pixel Magic Color LED Controller With 133 Mode Control
