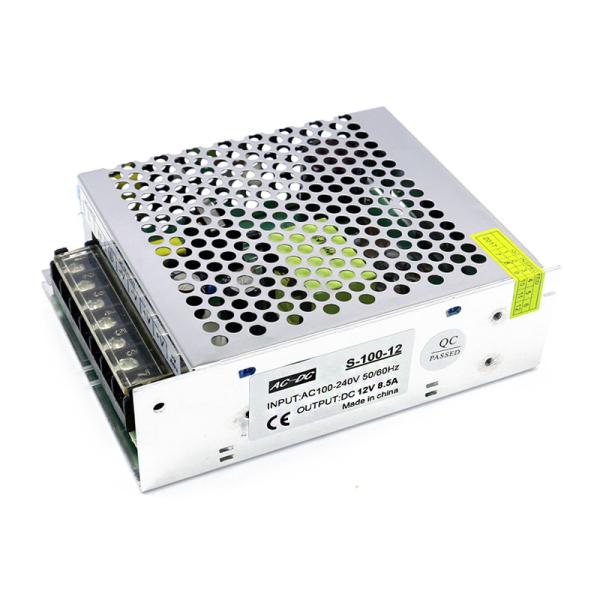

Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Specifications
Place of Origin :
Guangdong, China
Model Number :
S-100-12
Certification :
CE
Packaging Details :
50pcs/box
Price :
Negotiation
MOQ :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Output Power :
100W
Input Voltage :
AC100V-240V
Output Voltage :
12V
Output Frequency :
50-60Hz
Output Current :
8.5A
Type :
AC DC Power Module Converter
Efficiency :
88%
Weight :
315g
Size :
L130*W98*H40mm
Protections :
Short Circuit Overtemp Overload Overvolt
Description
AC 100V 240V to DC 12V 8.5A 100W Regulated Switching Power Supply Transformer Adapter LED Driver

AC 100V 240V to DC 12V 8.5A 100W Universal Regulated Switching Power Transformer Adapter LED Driver for LED Light Bar, CCTV Camera System, Radio

About this project
◆ Input: 100V/240V AC; Output: DC 12V 8.5A max.
◆ Safety function: automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, short circuit protection.
◆ Voltage consistency: there is no voltage fluctuation during power-on, transmission, reception, and power-off.
◆ The metal shell has more openings for more efficient heat dissipation.
◆ Suitable for LED strips, 3D printers, ham radio transceivers, CCTV cameras, audio amplifiers, wireless routers, ADSL Cats, HUB, audio/video power supplies. Indoor use only!
Thickened metal shell
The shell is made of high-quality metal material with good pressure resistance. Heat dissipation is fast. Durable and Corrosion Resistant
Featured Components
Selected high-quality components, sufficient power. Stable output, energy saving and safer
Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Model
S-100-12
AC input voltage range(V)
AC100-240V
AC Input current(max)
0.5A /AC220V;1A/AC110V
Frequency (Hz)
50/60Hz
Efficiency
88% Typ(230VACFull Load)
Inrush current(A)
Cold-start 20A/230V
Leakage current(mA)
<3mA/240VAC
Output Voltage(V)
12VDC
Voltage Range
12V±5%
Output Current(A)
8.5A
Current Range (A)
0-8.5A
Rated Power(W)
100W
Start time,hold-up time(ms)
Ton≤1000ms,Td≥20ms @230Vac Full Load
Rise time(ms)
Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p)
120mVp-p
working Temperature (°C)
-40°C - +65°C(refer derating curve)
Storage Temperature(°C)
-20°C - +60°C
Humidity
20% - 90% RH non condensing
Over voltage Protection
>115%-135% Rated output voltage
Over load Protection
>105%-150% Auto recovery
Short circuit Protection
Latched
Size L*W*H(mm)
L130*W98*H40mm
Weight
315g
Product Description
Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Regulated LED Driver Switch Power Supply AC 100V 240V To DC 12V 8.5A 100W
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
Megbox
Model Number
S-100-12
Output Power
100W
Output Type
Single
Input Voltage
AC100V-240V
Output Voltage
12V
Output Frequency
50-60Hz
Output Current
8.5A
Product Name
Chassis Switching Power Supply
Application
LED Lighting
Warranty
2 Years
Certification
CE
Type
AC DC Power Module Converter
Efficiency
88%
Weight
315g
Size
L130*W98*H40mm
Protection
OCP OVP SCP OPP
Protections
Short Circuit Overtemp Overload Overvolt
