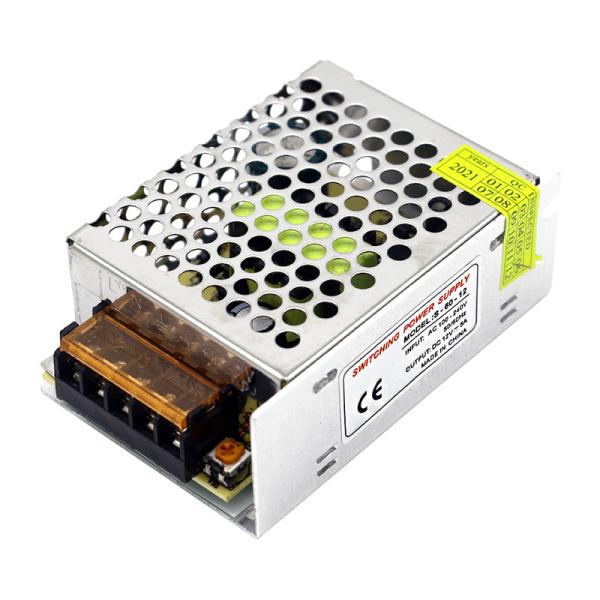

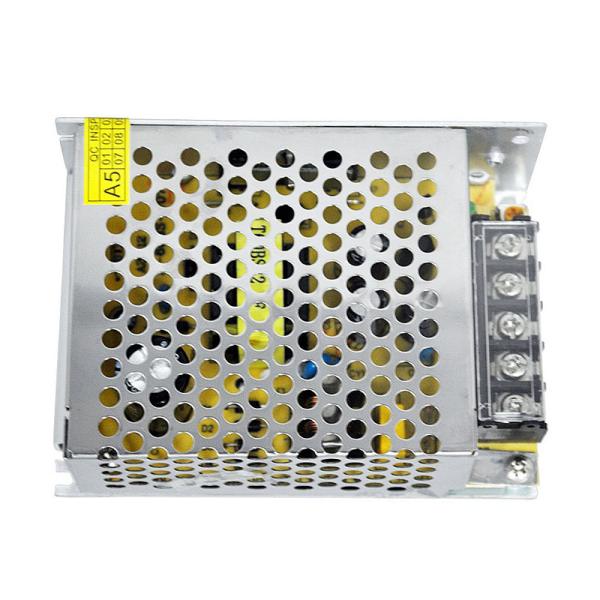

60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
Specifications
Place of Origin :
Guangdong, China
Model Number :
S-60-12
Certification :
CE
Packaging Details :
30pcs/box
Price :
Negotiation
MOQ :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Output Power :
60W
Input Voltage :
AC100V-240V
Output Voltage :
12V
Output Frequency :
50-60Hz
Output Current :
5A
Product Name :
Chassis Switching Power Supply
Type :
AC DC Power Module Converter
Weight :
185g
Size :
L110*W78*H35(mm)
Protections :
Short Circuit Overtemp Overload Overvolt
Description

AC 100-240V to DC DC12V 60W 5A Indoor Cabinet Switching Power Supply LED Lighting Electronic Constant Voltage Regulator Driver

1: The product has short circuit protection, overload protection and overvoltage protection.
2: High quality, high efficiency, high service life, high reliability; low energy consumption, low output ripple, low operating temperature.
Thickened metal shell
◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.
◆There are many cooling holes on the metal shell. Can quickly dissipate heat.
Featured Components
Selected high-quality components, sufficient power. Stable output, energy saving and safer
Suitable for a variety of electronic devices
Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields
Easy to install and easy to use
60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
Model
S-60-12
AC input voltage range(V)
AC 100V-240V
Input current(A)
2A/115VAC;1A/230VAC
Frequency (Hz)
50/60Hz
Efficiency
86%(230VACFull Load)
Inrush current(A)
cold start 20A/115V AC 40A/230VAC
Leakage current(mA)
<3.5mA/240VAC
Output Voltage(V)
+12VDC
Voltage Regulation
±10%
Output Current(A)
5A
Current Range (A)
0-5A
Rated Power(W)
60W
Start time, hold-up time(ms)
300ms/230VAC 800ms,/115VAC at full load
Rise time(ms)
50ms at Full Load
Ripple/Noise(MVP-p)
120mVp-p
working Temperature (°C)
-10 centidegree to+60 centidegree
Storage Temperature(°C)
-20 centidegree to+85 centidegree
Humidity
20% to90%RH non condensing
Over voltage Protection
>115%-135% Rated output voltage
Over load Protection
>105%-150% Auto recovery
Short circuit Protection
Latched
Size L*W*H(mm)
110*78*35
Weight
185g
Product Description
60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
60W 5A Indoor Cabinet Switch Power Supply For LED Lighting Electronic Constant Voltage
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
Megbox
Model Number
S-60-12
Output Power
60W
Output Type
Single
Input Voltage
AC100V-240V
Output Voltage
12V
Output Frequency
50-60Hz
Output Current
5A
Product Name
Chassis Switching Power Supply
Application
LED Lighting
Warranty
2 Years
Certification
CE
Type
AC DC Power Module Converter
Efficiency
86%
Weight
185g
Size
L110*W78*H35(mm)
Protection
OCP OVP SCP OPP
Protections
Short Circuit Overtemp Overload Overvolt
