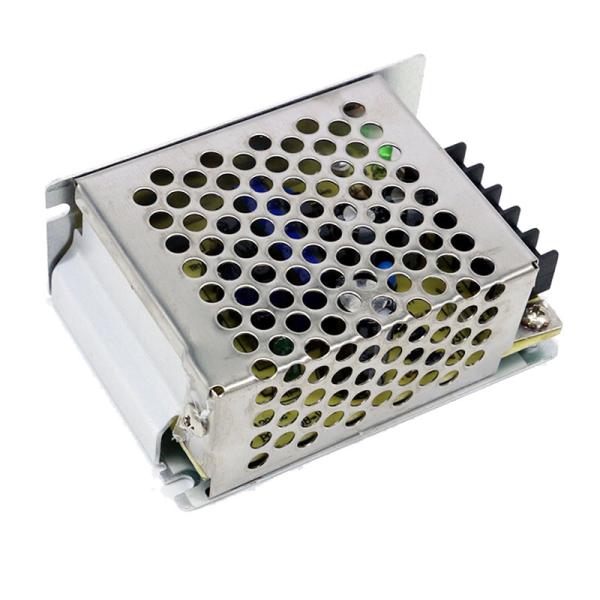

20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver
20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver
20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver
20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver
Specifications
Place of Origin :
Guangdong, China
Model Number :
S-20-5
Certification :
CE
Packaging Details :
Standard Neutral Carton box Package
(One-stop Lighting Power Supply Solution Matching Service, welcome to consult)
Price :
Negotiation
MOQ :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Output Power :
20W
Output Type :
Single
Input Voltage :
AC100-240V
Output Voltage :
5V
Output Frequency :
50-60Hz
Output Current :
4A
Product Name :
AC to DC Swtiching Power
Application :
LED Strip
Warranty :
2 Years
Type :
Constant Voltage
Efficiency :
85%
Weight :
0.115kg
Size :
85*58*35mm
Protections :
OPP OVP SCP OCP
Material :
Aluminium
Description

AC to DC 5V 20W 4A Metal Shell Indoor Low Voltage Switching Power Supply

Model

S-20-5

AC input voltage range(V)

AC100-240V

AC Input current(max)

0.36A /AC220V;0.72A/AC110V

Frequency (Hz)

50/60Hz

Efficiency

85% Typ(230VACFull Load)

Inrush current(A)

Cold-start 20A/230V

Leakage current(mA)

<3mA/240VAC

Output Voltage(V)

5V DC

Voltage Range

5V±5%

Output Current(A)

4A

Current Range (A)

0-4A

Rated Power(W)

20W

Start time,hold-up time(ms)

Ton≤1000ms,Td≥20ms @230Vac Full Load

Rise time(ms)

Typ:20ms @230Vac Full Load

Ripple/Noise(mVp-p)

120mVp-p

working Temperature (°C)

-40°C - +65°C(refer derating curve)

Storage Temperature(°C)

-20°C - +60°C

Humidity

20% - 90% RH non condensing

Over voltage Protection

>115%-135% Rated output voltage

Over load Protection

>105%-150% Auto recovery

Short circuit Protection

Latched

Size L*W*H(cm)

8.5*5.8*3.5cm

Weight

115g

Product Description

20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

20W 5V DC Switching Power Supply Aluminum Case 100-240V AC to DC 5V 4A LED Strip Light Driver

Specification

item

value

Place of Origin

China

Guangdong

Brand Name

MegBox

Model Number

S-20-5

Output Power

20W

Output Type

Single

Input Voltage

AC100-240V

Output Voltage

5V

Output Frequency

50-60Hz

Output Current

4A

Product Name

Swtiching Power

Application

LED Strip

Warranty

2 Years

Certification

CE

Type

Constant Voltage

Efficiency

85%

Weight

0.12kg

Size

85*58*35mm

Protections

OPP OVP SCP OCP

Name

AC DC Power Module Converter
