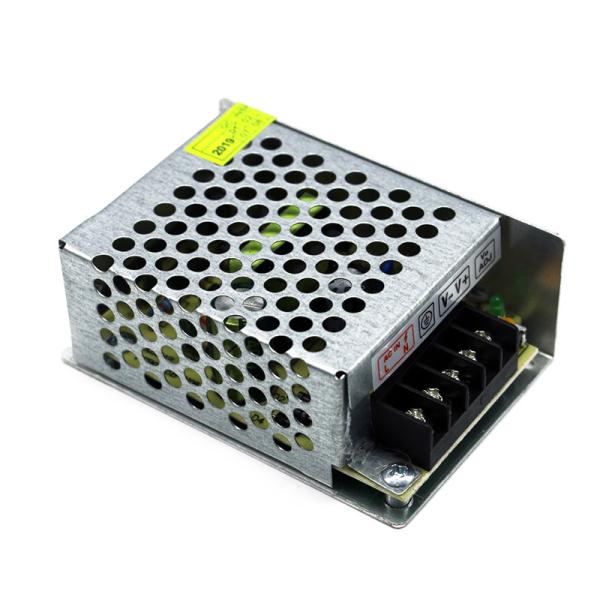

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W
Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W
Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W
Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W
Specifications
Place of Origin :
Guangdong, China
Model Number :
S-48-24
Certification :
CE
Packaging Details :
Standard Neutral Carton box Package
(One-stop lighting solution supporting services, welcome to consult)
Price :
Negotiation
MOQ :
Negotiation
Payment Terms :
T/T
Delivery Time :
3-10days
Output Power :
48W
Input Voltage :
AC100V-240V
Output Voltage :
24V
Output Frequency :
50-60Hz
Output Current :
2A
Product Name :
Chassis Switching Power Supply
Type :
AC DC Power Module Converter
Weight :
130g
Size :
L85*W58*H33(mm)
Protection :
OCP OVP SCP OPP
Description

Switching Power Supply Aluminum Case 110V 220V AC to DC 24V 2A 48W Converter Transformer Constant Voltage LED Driver

AC to DC 24VDC 48W 2A Indoor Switching Power for LED Driver CCTV Radio Computer Project 3D Printer

◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Thickened metal shell

◆The shell is made of high-quality metal material, which has good pressure resistance, durability and corrosion resistance.

◆There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

Featured Components

High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Suitable for a variety of electronic devices

Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

Model

S-48-24

AC input voltage range(V)

AC100V-240V

AC Input current(max)

2A/115VAC 1A/230VAC

Frequency (Hz)

50~60Hz

Efficiency

76%(230VACFull Load)

Inrush current(A)

cold start 20A/115V AC 40A/230VAC

Leakage current(mA)

<3.5mA/240VAC

Output Voltage(V)

+24VDC

Voltage Regulation

±1%

Output Current(A)

2A

Current Range (A)

0~2.1A

Rated Power(W)

48W

Start time,hold-up time(ms)

300ms/230VAC 800ms,/115VAC at full load

Rise time(ms)

50ms at Full Load

Ripple/Noise(mVp-p)

120mVp-p

working Temperature (°C)

-10 centidegree to+60 centidegree

Storage Temperature(°C)

-20 centidegree to+85 centidegree

Humidity

20%to90%RH non condensing

Over voltage Protection

>115%-135%Rated output voltage

Over load Protection

>105%-150%Auto recovery

Short circuit Protection

Latched

Size L*W*H(mm)

85*58*33

Weight

130g

Easy to install and easy to use

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Product Description

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Aluminum Case Switch Power Supply 110V 220V AC To DC 24V 2A 48W

Specification

item

value

Place of Origin

China

Guangdong

Brand Name

Megbox

Model Number

S-48-24

Output Power

48W

Output Type

Single

Input Voltage

AC100V-240V

Output Voltage

24V

Output Frequency

50-60Hz

Output Current

2A

Product Name

Chassis Switching Power Supply

Application

LED Lighting

Warranty

2 Years

Certification

CE

Type

AC DC Power Module Converter

Efficiency

76%

Weight

130g

Size

L85*W58*H33(mm)

Protection

OCP OVP SCP OPP

Protections

Short Circuit Overtemp Overload Overvolt
