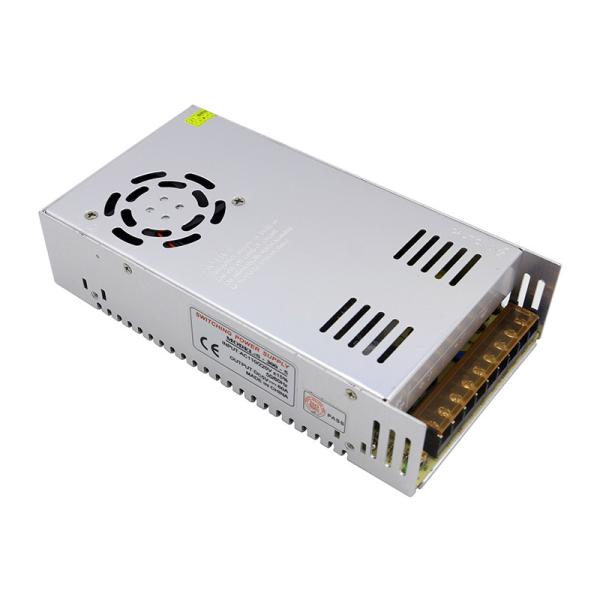

Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter
Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter
Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter
Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter
Specifications
Place of Origin :
Guangdong, China
Model Number :
S-300-5
Certification :
CE
Packaging Details :
Standard Neutral Carton box Package
(One-stop lighting solution supporting services, welcome to consult)
Price :
Negotiation
MOQ :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Output Power :
300W
Output Type :
Single
Input Voltage :
AC100-240V
Output Voltage :
5V
Output Frequency :
50-60Hz
Output Current :
5A
Product Name :
Swtiching Power
Application :
LED Strip
Warranty :
2 Years
Weight :
0.86kg
Size :
215*112*50mm
Name :
AC DC Power Module Converter
Description

S-300-5 Single Output Voltage 300W 60A 5V Dc Switching Power Supply Module

Model

S-300-5

AC input voltage range(V)

AC 110/220V±15%(switch replacement)

AC Input current(max)

6.5A /115V,4A /230V

Frequency (Hz)

50/60Hz

Efficiency

90% Typ(230VACFull Load)

Inrush current(A)

Current 25A/115V 50A/230V cold start

Leakage current(mA)

<3.5mA/240VAC

Output Voltage(V)

5V DC

Voltage Regulation

±10%

Output Current(A)

60A

Current Range (A)

0~60A

Rated Power(W)

300W

Start time,hold-up time(ms)

Ton≤200ms,Td≥30ms @230Vac Full Load

Rise time(ms)

Typ:100ms @230Vac Full Load

Ripple/Noise(mVp-p)

150mVp-p

working Temperature (°C)

-40°C - +65°C(refer derating curve)

Storage Temperature(°C)

-20°C - +60°C

Humidity

20% - 90% RH non condensing

Over voltage Protection

>115%-135% Rated output voltage(13.8-16.2V)

Over load Protection

>105%-150% Auto recovery

Short circuit Protection

Latched

Packing Size / Product Size(cm)

22*11.7*5.5/ 21.5*11.2*5

Gross Weight / Net Weight(kg)

0.865 /0.825

Product Description

Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter

Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter

Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter

Switching Power Supply 5V 300W 60A Lighting Transformer AC 110V 220V to DC 5 volt Converter Adapter

Specification

item

value

Place of Origin

China

Guangdong

Brand Name

Megbox

Model Number

S-300-5

Output Power

300W

Output Type

Single

Input Voltage

AC100-240V

Output Voltage

5V

Output Frequency

50-60Hz

Output Current

5A

Product Name

Swtiching Power

Application

LED Strip

Warranty

2 Years

Certification

CE

Type

Constant Voltage

Efficiency

95%

Weight

0.86KG

Size

215*112*50mm

Protections

OPP OVP SCP OCP

Name

AC DC Power Module Converter
