Coil Process Cold Roll Forming Machine C Z For Galvanized Steel
Coil Process Cold Roll Forming Machine C Z For Galvanized Steel
Coil Process Cold Roll Forming Machine C Z For Galvanized Steel
Coil Process Cold Roll Forming Machine C Z For Galvanized Steel
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
FAMOUS
Certification :
ISO9001:2008
Model Number :
OWN
MOQ :
1 set
Price :
USD 46280 per set
Packaging Details :
Standard exported package
Delivery Time :
2 Months
Payment Terms :
T/T,L/C
Supply Ability :
50 Sets/Year
Product Name :
C Z Purlin Roll Forming Machine
Coil thickness :
1.2-3.5mm
Working speed :
10-25m/min
Main motor :
15KW
Transmission :
Transmission by by Chains 1.2Inch double line
Hydraulic pressure :
15-20MPa
Description

Coil Process Cold Roll Forming Machine C Z For Galvanized Steel

Technological process:

De-coiling---feeding---Punching---cutting---roll forming---Out table

Specification Details:

1.Purlin specifications:

For C purlin: width: 80-350mm height: 40-80mm, small rib: 14-25mm

For Z purlin: width :80-350mm height: 40-80mm, small rib: 14-25mm

2.Coil thickness:1.2-3.5mm Q195~235, zinc coils & Hot Rolled coils

3.Working speed: 10-25m/min (not containing punching and cutting time )

4.Forming roller: 17steps

5.Leveling roller:5steps (up 2 and down 3)

6.Rectifying: one step

7.Feeding & guiding: 2 sets ,4 rollers

8.Material of roller: GCr15, quenched

9.Material of main shaft:45﹟ steel

10.Main motor: 15KW

11.Feeding, leveling motor power: 7.5 KW

12.Hydraulic pressure: 15-20MPa

13.Hydraulic power: 7.5 KW

14.two servo motor and four encoder

15.Transmission: Transmission by by Chains 1.2Inch double line

16.Main dimension: 11000 x 1400 x 1400mm (L x W x H)

17.Total weight: 14000kg

Gearbox Transmission Adjustable C/Z Rolled Former For Galvanized/Carbon Steel

Composition of machine:

Roll forming main machine ………………………1 unit

Manual Uncoiler ……………………………………1 unit

Control panel ………………………………………1 unit

Hydraulic station ……………………………………1 unit

Manual out table……………………… ……………2 unit

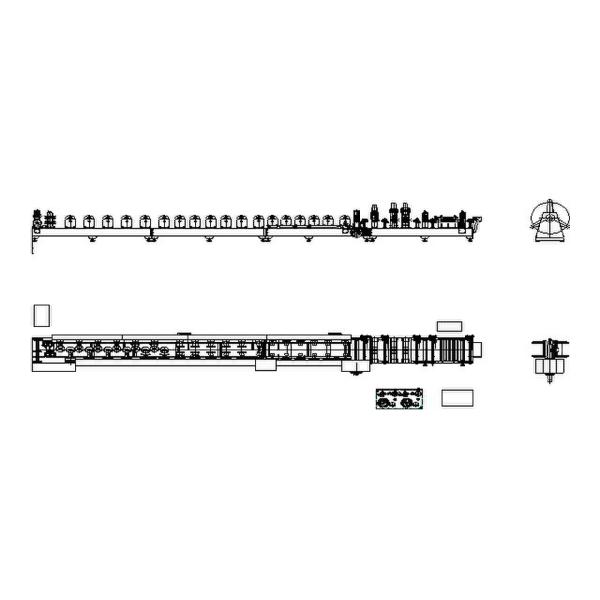

Machine Drawings:

Coil Process Cold Roll Forming Machine C Z For Galvanized Steel

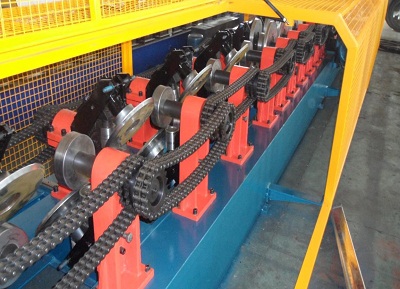

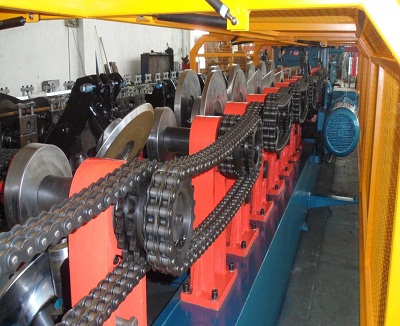

Machine Pictures:

Coil Process Cold Roll Forming Machine C Z For Galvanized SteelCoil Process Cold Roll Forming Machine C Z For Galvanized SteelCoil Process Cold Roll Forming Machine C Z For Galvanized SteelCoil Process Cold Roll Forming Machine C Z For Galvanized Steel
