Spider Glass Façade Curtain Walls Bolted Point Fixed Glazing Curved Design for Exhibition Booth

2. Suited for angular or complex facades

3. Slighlines are slimmer than Unitized Curtain Walling

After years’ development, our group has evolved into an integral turn-key contractor for various buildings and construction. So we have capacity in various huge projects design & build based on satisfactory budget control. Welcome clients to make enquiries directly on whatever kind of building engineering or building surrounding materials pricing. Our professional engineering teaam are all ready here to offer customized design and price. Our pricinple is One Trial Order Bring Constent Cooperation!

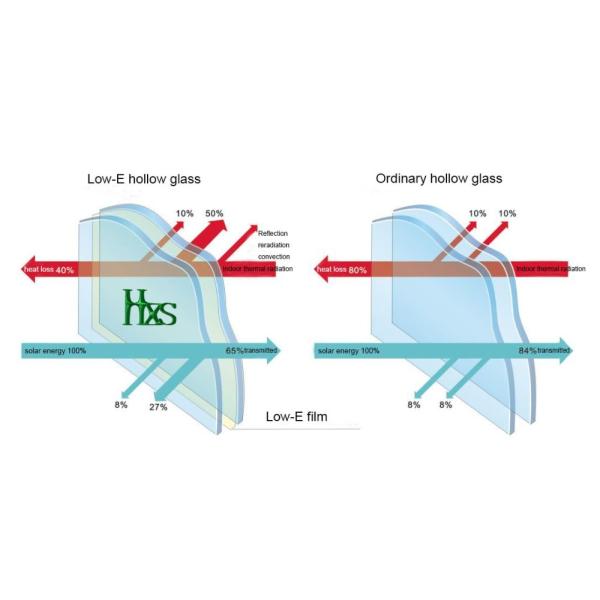

Spider Glass Façade Curtain Wall System (also named bolted pointed fixed type) is a system for point-supported vertical glazing in which thermally toughened (Tempered) glass sheets are used, in single glazing or in insulated glass. Laminated safety glass (tempered laminated glass) is preferable to be used in single glazing or as the outer sheet of the insulating glass units.

This system consists of a number of accessories with metal arms. At the end of each arm, a sheet of glass is fixed by the corners with a special screw. The vacuum between these sheets is filled up with isolators to overcome mechanical pressure and weather conditions.

The rectangular glass sheets have 4 or 6 countersunk drilled holes into which countersunk stainless steel bolts acting as point-fixings. The space between the glass sheets are filled with whether seal. The support elements that hold the fitting can be space frame, glass fin or tension cables.

This system consists of a number of accessories with metal arms. At the end of each arm, a sheet of glass is fixed by the corners with a special screw. The vacuum between these sheets is filled up with isolators to overcome mechanical pressure and weather conditions.

Product information

Application: for the exhibition stand, booth , stall and shell scheme.

Material: tempered glass, acrylic panel, steel glass retainer, aluminum frame

Lighting: can be installed with lights to become a lighting wall.

Glass panel size: 984 mm x 984mm x 8mm , 980mm x 980mm x 8mm

Aluminum frame: can match the system with 4.3mm groove

Some technical points to ponder:

The maximum span for bolted clamp plates of toughened glass is usually given by the manufactures technical data sheets as a guide line for the designer to consider.

An important criterion is the deflection of the point fixed glass systems, which can be predicted using rules of thumb or by doing a finite element analysis. If the expected deflection is more than one half of the glass thickness then its behavior cannot always be sufficiently represented by linear models. The method of calculation is determined by the out of plane rotations of the glass surface.

The deflection of the point fixed glass facade is also important where the sway of the entire structure is being considered. Glass walls can be designed to have low stiffness and tolerate large deflections. The limit of deflections is determined by human perception of safety usually outlined in codes of practice. Some glass manufacturers produce their system of joints such that the connection between the bolt and the glass is capable of carrying a small bending moment. Others make their systems allow rotation of the glass relative to the joint. Therefore, a detailed understanding of the allowable movement of the point fixed glass façade is required before doing any finite element analysis.

Glass plates in point fixed systems deform and therefore develop stresses when loaded with uniformly distributed surface pressure, like wind loads.

Deformations are elastic until they aggravate inherent flaws in the material and tiny cracks reach a critical length. If the flaw occurs near a concentration of stresses around a bolt, then the panel tensile stress resistance is reduced causing failure.
