American Standard Compact Type 100 Prefabricated Steel Bailey Bridge Equiv

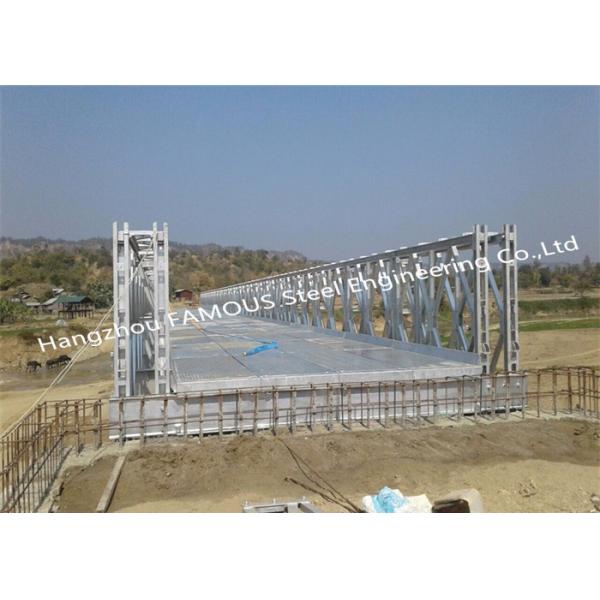

Introduction: Compact 100 Prefabricated Bailey Steel Bridge is a type of bridge system that can be dissembled and rapidly erected. The whole bridge is welded with high-tensile strength steel. The girder is light weight composite panels and the panels are connected by panel connection pins. The conversion between the parts is easy and they are lightweight. It is easy to assemble or disassemble and transport them. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as a more developed and guaranteed panel bridges for emergency transportation. Because the deck is thin and transom beam is light, It is suitable for that when the requested bridge span or loading are small.

As the international marketing developing, some international users insist to adopt the bridge in British dimension to match the old bridges, FASEC can also provide the special-made bridges with panel dimension on 3.048m X 1.45m (Holes center distance). It is called CB100 or Compact-100 Bailey Bridge, In China, it is called British 321-Type Bailey Bridge.

Compact-100 Bailey Bridge
Model Alias:100-Type; China 321-Type
Model Derived: CB100,Compact-100,British 321-Type
Bridge deck net width: 4m
Maximum Free Span length: 51M
Panel Dimension:3000MMX1400MM(Holes center distance)

Specifications:

Features

1. High strength and big stiffness , relative to the concrete bridge can be reduced trabecular high and self-respect

2. Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption

3. Steel bridge generally USES factory, site splicing, the construction period is short, processing convenient and not affected by seasonal effect.

4. Steel bridge is suitable for industrialized manufacture and very convenient to transport.

5. Steel bridge is easy to repair and replace,long lifetime,material can be recycled.

Applications: Beam bridge,arch bridge,rapid frame bridge,cable-stayed bridge,suspension bridge. passenger foot-bridge
