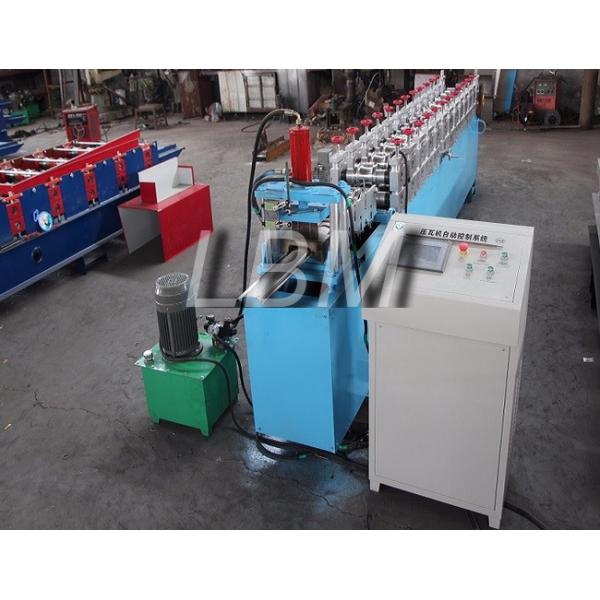

Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
Specifications
Brand Name :
LBM
Model Number :
LBM-DSM-003
Certification :
ISO 9001: 2008
Place of Origin :
Wuxi City, Jiangsu
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-40days
Price :
Negotiation
Supply Ability :
24 Sets per Month
Packaging Details :
Standard export packing with each machine fixed and protected in the container
Weight :
About 3500 Kgs
Size :
About 6m*1.6m*1.5m
Forming rollers material :
No.45 steel, coated with chromed treatment
Controlling system :
PLC and Converter
Main motor power :
3Kw
Warranty period :
18 months
Description

High hydraulic cut Shutter Door Roll Forming Machine full automatic made in China

1. Description of door shutter roll forming machine:

For the rolling shutter strip making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.4mm, the shape will be design by your demand.

LBM is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.

Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine

2. Technical details of door shutter roll forming machine:

Machine Specifications
Weight About 3500kgs
Size About 6m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.3-0.6mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 60mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 3kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement

3. Main components of door shutter roll forming machine

Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set

Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine

4. Production Flows:

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages:

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 22 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 3 years maintenance and whole life technical support

6. Application:

This machine is widely used in the production of the door shutters.

Full Automatic Shutter Door Roll Forming Machine , Rolling Shutter Roll Forming Machine
