Automatic Control 12-24m/min C Purlin Roll Forming Machine Factory Direct Sell Price

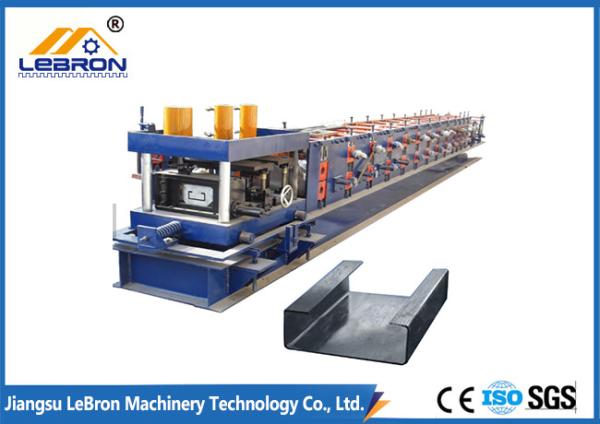

1. Description of C purlin roll forming machine:

C,Z,U shape purlin. Uses the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

LBM factory is manufacturing high quality C shape purlin roll forming machines, and exported to the foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.

2.Technical parameters of c purlin roll forming machine

3. C purlin roll forming machine flow charts:

4. Detailed Technology

1). Cutting Sysytem

Material Of the Cutting: Cr12Mov with quench heat treatment. It can decide cut panel dimension according to the hydraulic drive and PLC computer control system. Easy quick change C size without change moulds.

2). Roller System

Material of the Roller: High grade Gcr15 forged steel

Roller station: 18 rows

Thickness of feeding material: 1.5-3.0mm

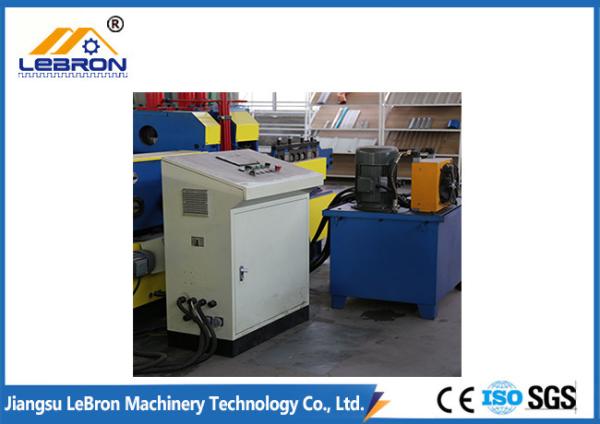

3). Computer Control Cabinet

Programmable setting of profile length and quantity. Computed mode has two modes: automatic and manual one.

Language: English, Chinese, Spanish and Russia

The system is easy to operate and use.

Note: Through this motor to replace the different models of production size range of 80-300mm. Set the size you need, it will change automaticly.

4). Hydraulic System

Power: 22kw

Hydraulic Oil: 46# hydraulic oil

Working pressure: 12-16 Mpa adjustable

Solenoid value: 3 groups

Color: Bule (or as customer's requirement)

5). Manual Uncoiler

Loading Capacity: 5 Ton

Inner Diameter: 500-508mm

Steel Coil Width: 600mm

6). Receiving Table:

Main framework adopts welded steel and supported roller , used or transmit and collect the finished products
