Specifications
Brand Name :
LBM
Model Number :
LBM-SCM-010
Certification :
ISO 9001: 2008
Place of Origin :
Wuxi City, Jiangsu
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Delivery Time :
30-40 days
Packaging Details :
Export Sea-worthy packing with each machine wrapped, fixed and protected in the container
Supply Ability :
25 Sets per Month
Total Power :
48.2 Kw
Line Size :
40m x width 3.5m x height 5m
Voltage :
380V, 50Hz, 3 phase
Thickness :
2.0/2.5mm
Production Speed :
5~10m/min
Roller Station :
20 Stations
Description

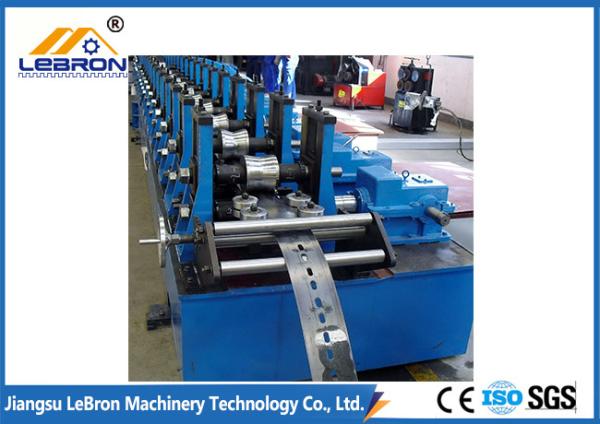

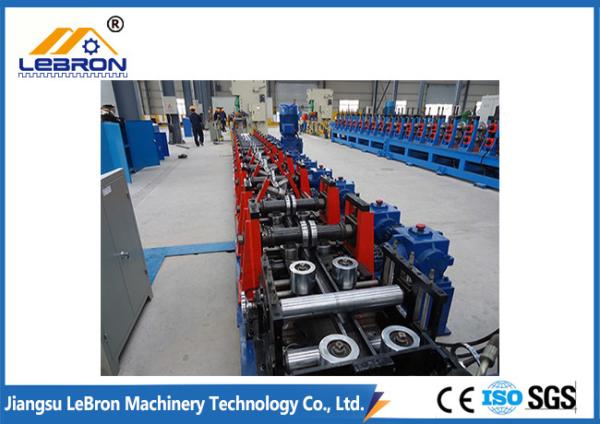

Solar industry automatic solar strut roll forming machine with heavy punch press

1. Description of Solar Strut Roll Forming Machine

Basic strut channel comes in the open box section, where several variations are available with small different shapes as well as different hole patterns for mounting to walls and supports. Generally, the materials for making the channels are 1.5-2.5mm thick zin-coating steel or cold rolled steel.

In addition, some other materials are also available for different applications. For instance, stainless steel will be used where rusting might become a problem (e.g., outdoors, facilities with corrosive materials), while aluminium alloy is better material when weight is an issue or from fiberglass for very corrosive environments.

A roll forming equipment that manufactures strut channels is strut channel roll forming machine.

2. Technical Parameter of Solar Strut Roll Forming Machine

Raw Material Cold Rolled Steel Coils or Galvanized Steel Coils
Material Thickness: 1.5mm-2.5mm
Material Widths: 100mm-180mm
Profiles: 21mm*21mm & 41mm*41mm
Leveller: 7 Rollers (3 rollers top & 4 rollers bottom)
Control system:

Siemens PLC control system, Omron Encoder, Yaskawa Inverter and Siemens HMI (touch screen)
Materials of Cutting Die: Cr12MoVsteel
Transmission of gear boxes 1”double-roller chains
Motors: Siemens motor
Main Power: 30 KW

3. Layout of Solar Strut Roll Forming Machine

4. Advantage:

- This EU type of light gauge steel roll forming machine line include 3 tons of manual decoiler, roll forming host, PLC control system, hydraulic cutting system and output table

- The manual decoiler is free for each machine, it can hold 3 tons of strips, and normally the space between manual decoiler and the machine is 3 meters.

- Feeding table has 1 row of roller to make the strip flat, and the roll forming host can produce the light keels as per customer's request.

5. After-sell service


A. Foreign debugging		 If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services Life time services to every customer.
