80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
Specifications
Brand Name :
LBM
Certification :
ISO9001: 2008
Place of Origin :
Wuxi City, Jiangsu
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
30-40 days
Model Number :
LBM-GTM-005
Packaging Details :
Standard export packing with each machine fixed and protected in the container
Material :
45# Steel Quenched, Coated Chrome
Roller stations :
15
Forming Rollers Material: :
No.45 Steel, Coated With Chromed Treatment
Roll Forming Speed: :
8-12m/min
Warranty: :
18 Months
Shaft Diameter: :
80mm
Price :
Negotiation
Description

Long Time Service Glazed Tile Roll Forming Machine Plc Control Hydraulic Cutting Device

1. Description of New type color steel tile roll forming machine:

Color steel tile has the good characteristics, such as light weight, high strength, colorful, easy installation, anti-seismic, fire-proofing, rain-proof, long service life, maintenance free, etc. Now, it is widely popularized and used. This machine is suit for the production of various kinds of color steel tiles.

LBM factory is producing high quality color steel tile roll forming machines. Most of the machines were exported to Thailand, Singapore India, Vietnam, Iran, Russia, Ghana, Tanzania, etc.

2. Detailed parameters of New type color steel tile roll forming machine

Machine Specifications
Weight Approx 6000 Kg
Size 8m*1.5m*1.2m (Length x Width x Height)
Color Main color: Blue & Yellow (or custom)
Suitable Raw Material
Material PPGI and PPGL Coils, Hot rolled & Cold rolled coil
Thickness 0.3-0.8mm
Coil width 1000mm, 1220mm, 1450mm
Yield Strength 235Mpa-550Mpa
Main Technical Parameters
Quantity of forming rollers stations 20
Diameter of forming rollers shafts 70 mm
Roll Forming Speed 10-16m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5 Kw
Electric voltage 380V 50HZ 3 Phase (or custom)

3. Main components of YX25-210-840 type color steel tile roll forming machine

Manual Decoiler 1 Set
Feeding guiding device 1 Set
Leveling System 1 Set

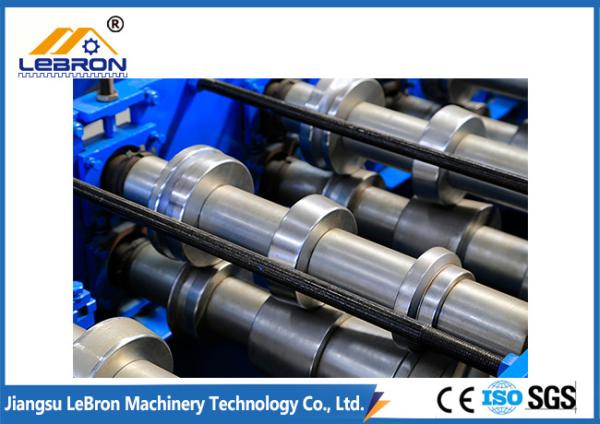

Roll Forming System 1 Set

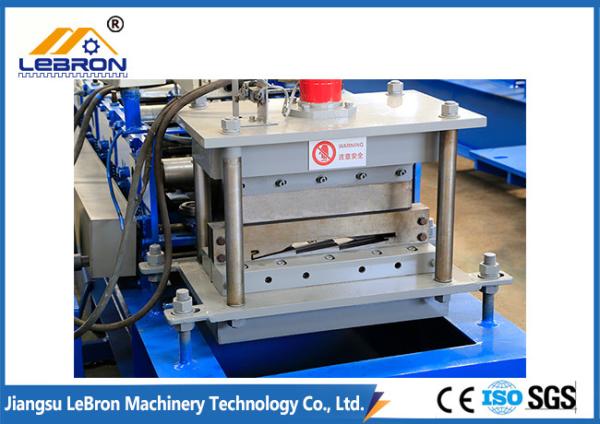

Hydraulic Cutting System 1 Set
PLC control box 1 Set
Hydraulic Unit 1 Set
Receiving Tables 1 Set

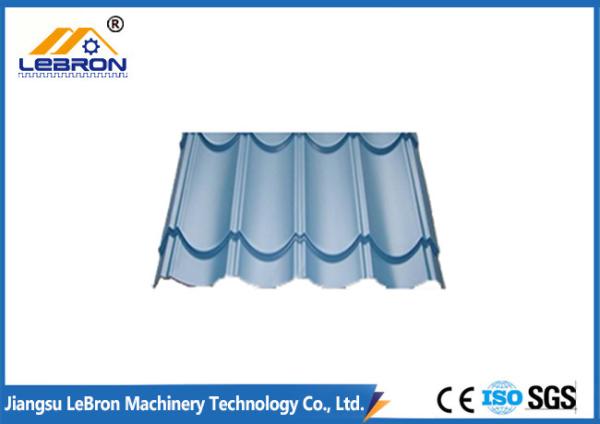

4. Panel sketch

80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service

5. Service

· 5 engineers with more than 20 years experience

· 30 professional technician

· 22 sets advanced CNC production lines on site

· Installation engineers can reach your factory within 6 days

· 3 years maintenance and whole life technical support

· Free accessories can be offered to you during the warranty period

6. Our Service and Advantages:

  • Our professional manufacturer is available to the installtion at your location
  • Warranty: 18 Months
  • Value-added Service: Free accessories can be offered during the warranty period
  • 5 engineers with more than 20 years experience
  • 15 professional technician
  • 11 sets advanced CNC production lines on site

7. Delivery

80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service

80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service

80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service

80mm Shaft Glazed Tile Roll Forming Machine 15 Roller Stations Long Time Service
