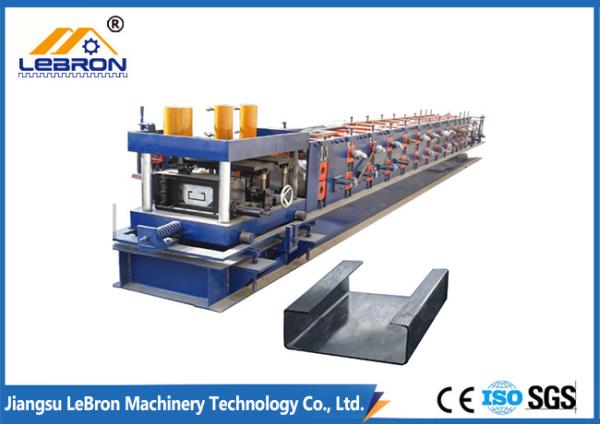

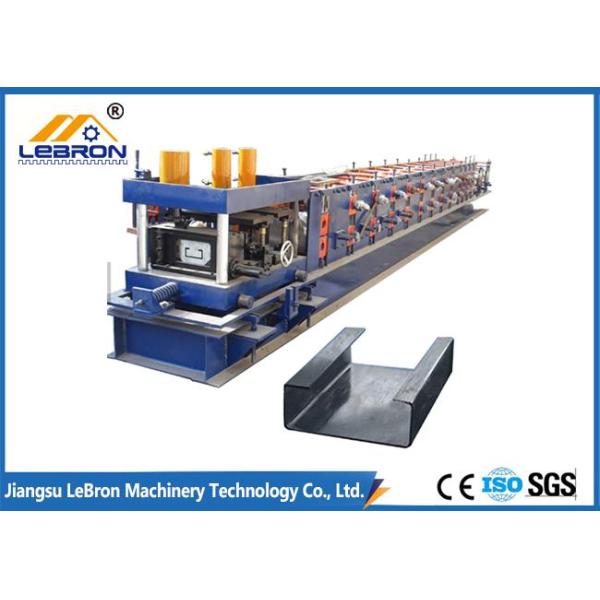

Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment
Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment
Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment
Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment
Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment
Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment
Specifications
Brand Name :
LBM
Certification :
certificate of origin
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-40
Material :
No.45 Steel, Coated With Chromed Treatment
Color :
Blue
Roller stations :
15
Material Thickness: :
0.4-1.5mm
Roll Forming Speed: :
10-15m/min
Warranty: :
18 Months
Price :
Negotiation
Description

1. Description of C purlin roll forming machine:

C,Z,U shape purlin. Uses the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

LBM factory is manufacturing high quality C shape purlin roll forming machines, and exported to the foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.

2. Technical details of c purlin roll forming machine:

Machine Specifications
Weight About 9000kgs
Size About 10m x 1.4m x 1.8m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 1.5-3.0mm
Coil width According to products size
Yield strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 14-16
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 4-6m/min
Forming rollers material Gcr15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric power requirement Main motor power: 15kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customers requirement

3. C purlin roll forming machine

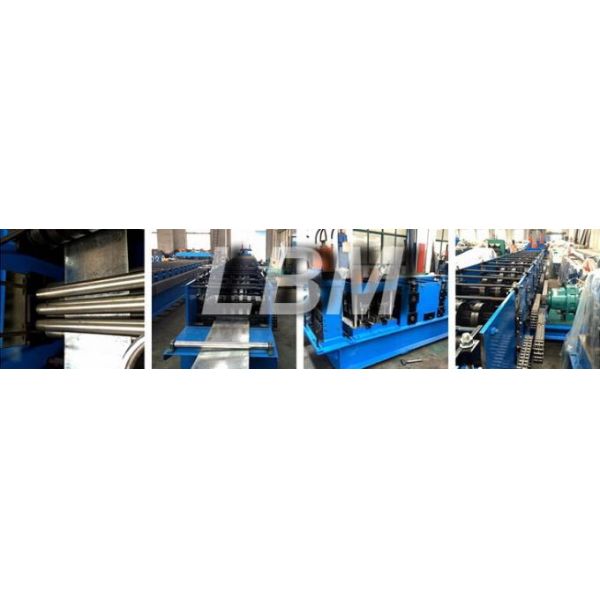

Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment

Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment

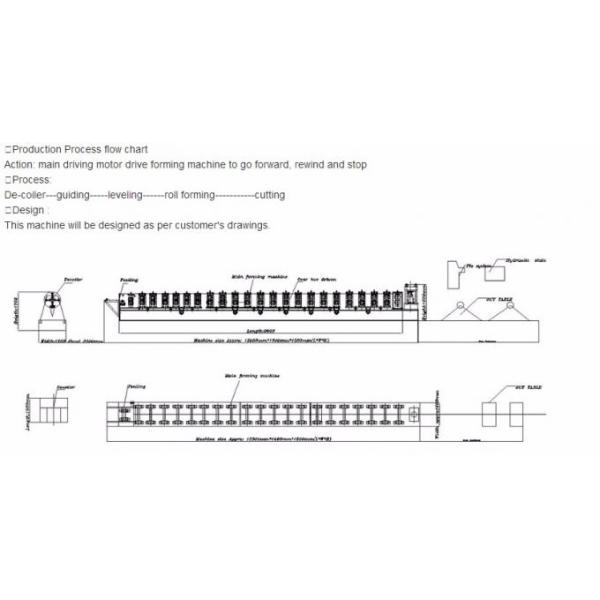

4. C purlin roll forming machine

Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment

5. Main component of C purlin roll forming machine:

1. Decoiler

3T manual decoiler
Dimensions 1700mm*1000mm*800mm
Width of feeding 300mm
Capability 3 Ton
Bound of expand &fight 420mm—510mm
Mode of expand &fight inner expand &fight by manual
Way of feeding manual
Quantity 1

2. Feeding

Feeding
Entrance table-guide adjustable
Entrance width about 80mm(according the final design)
Entrance and guide roller diameter is ￠56mm, material is sae1045, surface with chrome
Quantity 1

3. Forming

Forming Section
Profile steel thickness 0.4-0.7mm GI sheet
Main motor power 4kw, AC motor, side motor to save space (Brand: Guomao which made in China)
Machine Voltage, Frequency, Phase 380 V, 50 Hz, 3Phase
Roll station about 8stations +1 station of rectify (according the final design)
Roller material SAE1045, hardness and chrome plated surface
Shaft diameter ￠56mm material: SAE1045
Machine roll forming speed 0-15m/min (not including punching and cutting time)
Machine structure adopt wall panel which is much stronger
Transmission by chain, 1.0inch
4. Post Cutting System
Post cutting system
Cutting power by hydraulic 3KW
Working pressure 12Mpa adjustable
Cutting after forming Cut the sheet after roll forming to required length
Material of blade Cr12, 58-62 HRC hardness
Length measuring Automatic encoder length measuring
Brand Omron
Tolerance of length +/- 1.5mm for each piece end product

5. Out Table

out-table
Size about 2.0m long*0.3mwide*0.9mhigh
Supporter roller ASTM 1045 with chrome
Diameter of rollers 55mm
One out table with support roller
Quantity 2 units

6. Hydraulic Station

Hydraulic station
Hydraulic power 3kw
Working pressure 12Mpa adjustable
Solenoid valve 1 group
Hydraulic oil 46# hydraulic oil
Quantity 1

7. Control Desk

Control desk
Operating system language English and Chinese
Voltage, Frequency, Phase 380 V, 50 Hz, 3Phase
Control panel Button-type switch and touch screen
Unit of length millimeter (switched on the control panel)
PLC brand Panasonic
Frequency converter brand Yaskawa
Touch screen Taiwan Weinview

6. Our service

A. Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day

B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services

Life time services to every customer.

7. Delivery

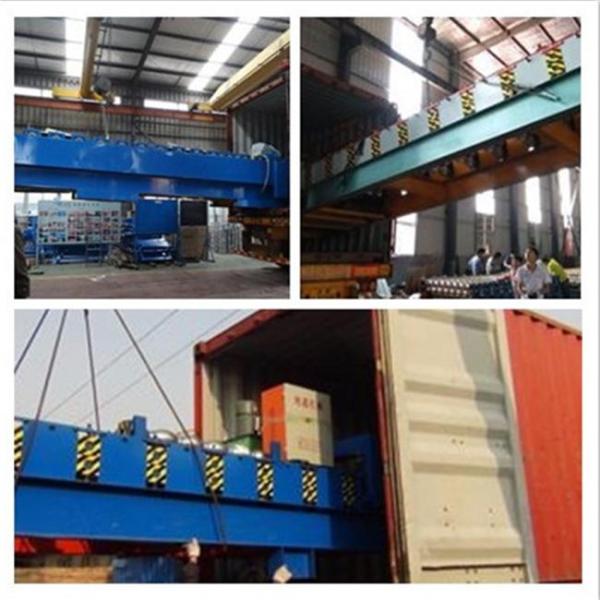

Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment
