PLC Control Automatic Shutter Door Roll Forming Machine Shutter Door Whole Panel

1. Description of shutter door roll forming machine:

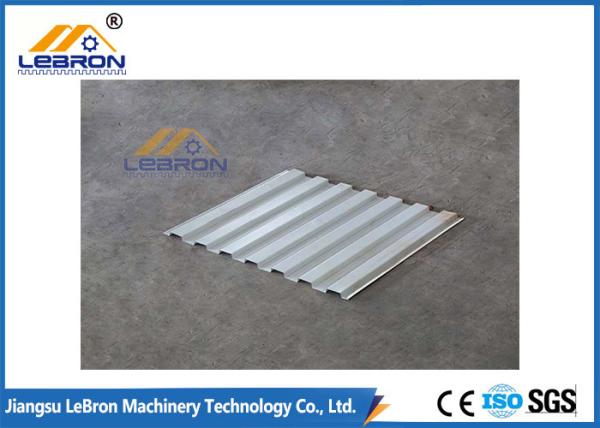

This shutter door panel roll forming machine is used for producing the shutter door panel, not the shutter door slats.

Roll forming machines for rolling shutter door panels are usually used in conjunction with lock stitching machines. After the roll-up door panels are roll-formed, two or more panels must be sewn together by a lock stitching machine to construct the roll-up door.

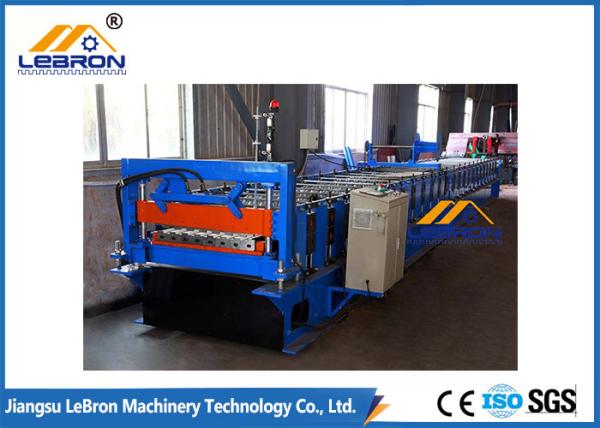

The rolling shutter door panel roll forming machine usually consists of decoiler (optional hydraulic decoiler), main roll forming machine, transmission system, cutting tools, hydraulic system, hydraulic oil pump, PLC control cabinet, and receiving table

2. Technical details of shutter door roll forming machine:

Uncoiler: manual decoiler;
Loading weight: 5 tons;
Inner diameter: 480-520mm;
Outer diameter: up to 1250mm;
Raw material: painted steel coil;
Material thickness: 0.4-0.8;
Material width: 1219mm;
Rolling stations: 18 stations (depending on the final design);
Forming speed: 12~15m/min
Shaft diameter: 65mm;
Shaft material: 45# steel, precision machined, quenched;
Roller material: 45# steel, quenched and chrome-plated;
Drive mode: chain
Motor power: 5.5KW (depending on the final design);
Material of cutting die: Cr12 steel, quenched HRC 60-62;
Cutting length and quantity: customers can set the required length and quantity on the PLC touch screen;
Hydraulic pump power: 4KW (depending on the final design);
Cutting length tolerance: +/- 2mm;
Computer control system: Panasonic PLC;
Encoder: Omron brand;
Voltage: 380V, 50Hz, 3 phases;

3. Main components of shutter door roll forming machine

1. Uncoiler, 5 tons capacity, manual or electric
2. Roll forming machine, 18 forming steps, 5.5KW Systems motor, siding mill, or chrome-plated stand mill
3. Cutting device, hydraulic or sawing.
4. Punching device (optional)

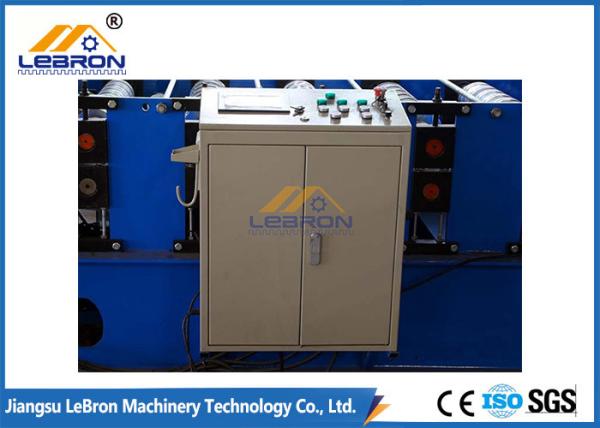

5. Control system: Panasonic PLC, Yaskawa inverter, Omron encoder, Siemens or MCGS touch screen
6. Hydraulic station, 4kw
7. Collection table, simple or automatic stacker
