Specifications
Brand Name :
Lebron-Machinery
Certification :
ISO/CE/CSA/Soncap
Place of Origin :
China
MOQ :
1
Price :
USD10000~20000 Per Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per Month
Delivery Time :
30 days
Packaging Details :
Standard export packing with each machine fixed and protected in the container
Main Power :
5.5KW
Hydraulic Power :
4KW
Shaft :
No.45 Steel Dia 57mm
Roller Station :
14 Stations
Speed :
12~15m/min
Weight :
About 3.6Tons
Description

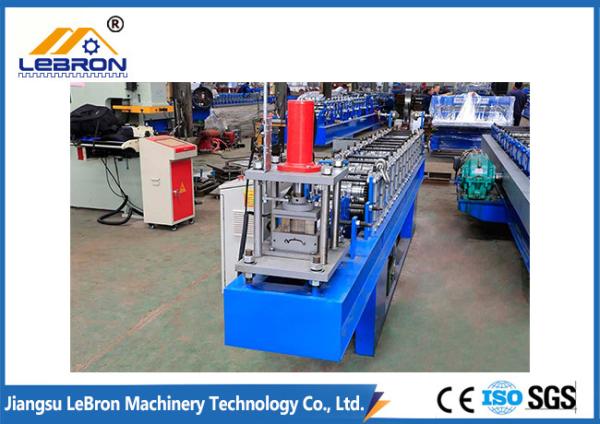

81 Model Shutter Door Roll Forming Machine Rolling Shutter Door Machine Full Automatic

1. Description of shutter door roll forming machine:

The rolling door manufacturing machine is a machine for manufacturing shutter slats. The thickness of our machine can be 0.4-0.6mm, and the shape will be designed according to your requirements.


The rolling door is separated from the wall by the function of the wall. The wall is composed of curtain panels, seat plates, guide rails, bearings, reels, boxes, control boxes, rolling door machines, stoppers, doors, manual quick release switches, and safety devices. It is generally installed on the wall partition part that is not convenient to use. For commercial facades, garages, shopping malls, hospitals, factories and mines, and other public places or residential rolling doors. Especially in large openings, where it is not convenient to install ground doors, it has a convenient and quick opening effect.

For the rolling door manufacturing machine, it has many parts:
1. Unwind the coil.
2. Feed the material to the punching machine (it is possible to make the shutter sliding cover have holes).

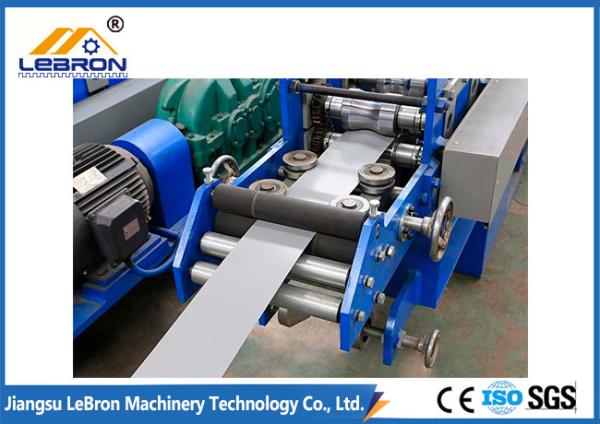

3. Roll forming parts, for our machine, the forming speed is 0-30m/min, adjustable. Usually, we will manufacture a shutter door forming machine with a gear drive, which will make the machine have strong moving power.
4. Punch. This part will be used with the cutting blade. When cutting, the machine will punch holes together.

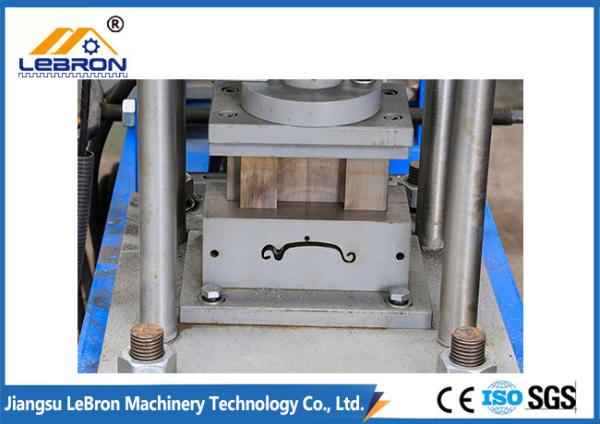

5. Cutting part. We have two cutters for you to choose from, one is a flying saw and the other is a hydraulic cutter.

2. Technical details of shutter door roll forming machine:

Machine Specifications
Weight About 3600kgs
Size About 6m x 1.6m x 1.5m (length x width x height)
Color Main color: light blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.4-0.6mm
Main Technical Parameters
Quantity of forming rollers stations 19
The diameter of forming rollers shafts 57mm
Roll Forming Speed 12-15m/min
Forming rollers material No.45 steel, coated with a chromed treatment
Cutter material Cr12 mold steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 7.5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement

3. Main components of shutter door roll forming machine

Decoiler 1 Set
Feeding Device 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
Electric Control Cabinet 1 Set
Receiving Table 1 Set
