Specifications
Brand Name :
Lebron-Machinery
Model Number :
C Purlin Roll Forming Machine
Certification :
ISO 9001: 2008
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
USD20000~40000 per Set (Negotiate)
Payment Terms :
L/C, T/T
Supply Ability :
25 Sets per Month
Delivery Time :
35 days
Packaging Details :
Standard Export Packing
Thickness :
1.2mm ~ 2.5mm
Forming Station :
16 stations
Shaft :
No.45 Steel, heat treatment
Main Power :
15KW
Hydraulic Power :
7.5KW
Voltage :
380V/50Hz/3Phase (can custom)
Description

47-147mm bottom width C Purlin Roll Forming Machine CZ Purlin Roll Forming Machine

1. Description of c purlin roll forming machine

C-shaped steel is widely used in the purlins and wall beams of steel structure buildings, and can also be combined into lightweight roof trusses, brackets, and other building components. In addition, it can also be used for columns, beams, and arms in mechanical light industry manufacturing. For example roof, load-bearing loads, and wall supports such as factory buildings, warehouses, stadiums, and market flower sheds are some of the indispensable steel materials in construction.

The various fittings of galvanized C-shaped steel can be directly connected into different combinations, and their appearance is beautiful when used, which can effectively reduce the weight of the building roof to a certain extent and effectively reduce the amount of steel used in engineering. Therefore, it is called economical and efficient steel, and it is a new type of building material that replaces traditional steel purlins such as angle steel, channel steel, and steel pipe. It can also be assembled into lightweight roof trusses, brackets, and other building components.

C47-147 C Purlin Roll Forming Machine is for producing the bottom width from 47~147mm C purlins.

2. Main Technical Parameters

No. Item Description
1 Suitable Material Hot-dipped Galvanized Steel Coils
2 Thickness of Material 1.2mm-2.5mm

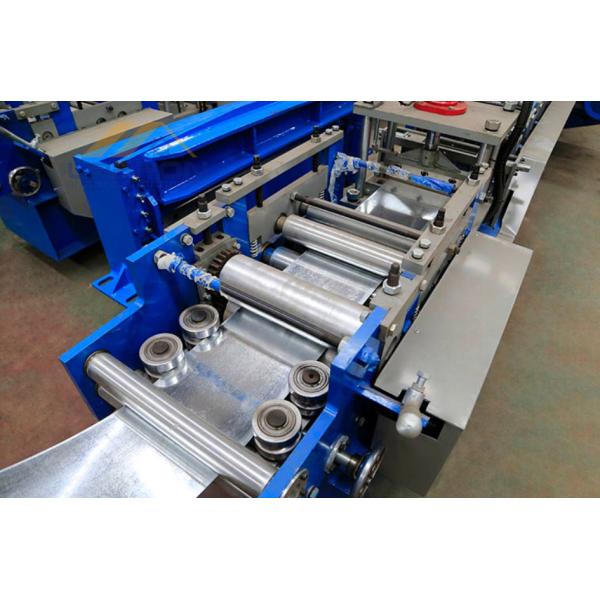

3 Roller Stations 16 stations
4 Diameter of Shaft 80mm
5 Material of Shaft 45# steel
6 Material of roller GCr15 steel with quenching treatment and coated with hard chrome 0.05mm thickness
7 Forming speed Approx. 18m/min
8 Main Power 15KW
9 Overall Dimension 10000mmx1500mmx1300mm
10 Weight of the machine Approx. 10 Tons

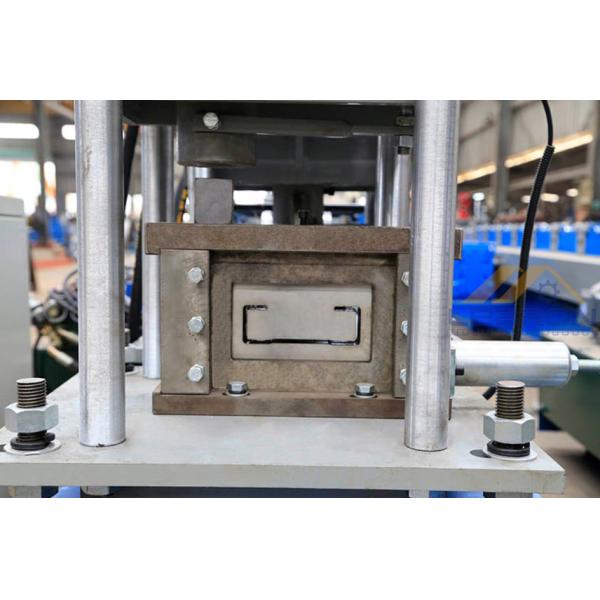

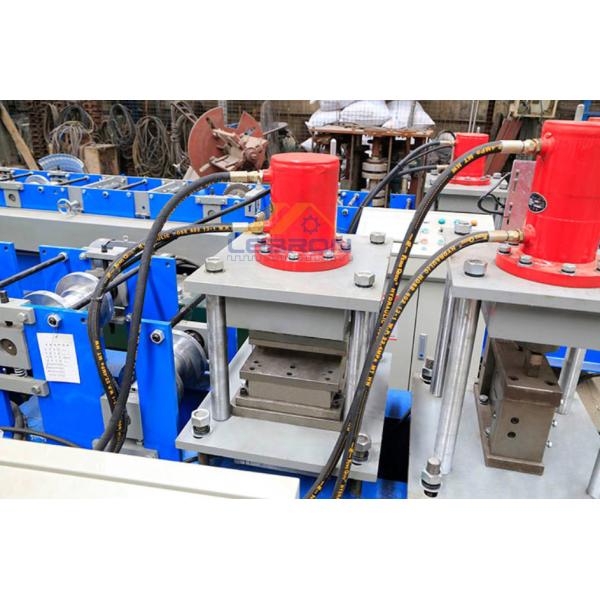

11 Cutting Hydraulic Post Cutting
12 Material of Cutting Blades Cr12 steel with heat treatment
13 Hydraulic Power 7.5KW
14 Control system Panasonic PLC, Inverter, CHNT transformer, and Omron encoder
