Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance
Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance
Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance
Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance
Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance
Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance
Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance
Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance
Specifications
Brand Name :
LBM
Model Number :
LBM-CTM-007
Certification :
ISO 9001: 2000
Place of Origin :
Wuxi City, Jiangsu
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-40days
Price :
Negotiation
Supply Ability :
25 Sets per Month
Packaging Details :
Export sea worthy packing with each machine fixed and protected in the container
Warranty: :
18 Months
Electric Voltage: :
380V 50HZ 3 Phase (or Custom)
PLC system :
Panasonic, Japan
Roller stations :
20 rows
Feature :
High Stability
Working Speed :
12m/min
Description

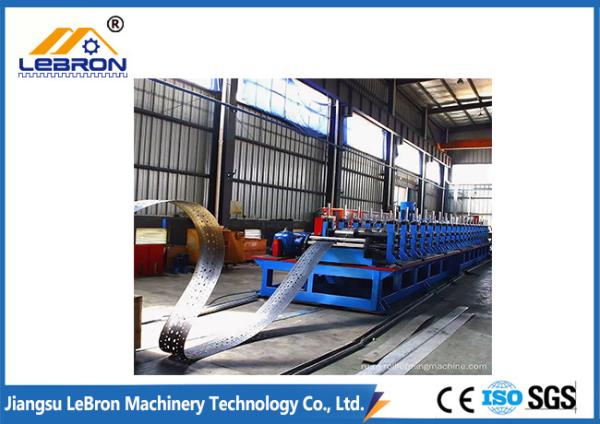

Later Punching Type Cable Tray Roll Forming Machine Automatic Controlled By Plc System

1. Main Technical Details

1 Production Width of the profile: 100-600mm
Height of the profile: 50-100mm
Thickness: 1-2mm, galvanized metal steel,steel coil,or equivalent
02 Un Coiler 8 tons hydraulic
03 Punching Hydraulic punching, 1 set
04 Forming section Rolling Speed: 5-10 m / min
Roller Stations: About 20 stations
Roller Material: Gcr15with quenching
Shaft: DIA 90mm
Maim Motor Power: 15Kw
05 Cutting system Hydraulic cutting Power: 7.5Kw
Material of Cutting: CR12 with quench treatment
Hardness: HRC58-62
Tolerance: +-1.5mm
06 Electric Source 380V, 50HZ, 3 phase
Also can satisfy Customer's require
07 Electrical control system Control System, PLC (Panasonic) as list in the note
08 Weight About 18 tons
09 Change Size Profile width and height adjustment, Control by the motor
10 Way Of Drive 1.2 inch single chain
11 Size of main machine (L*W*H): 15m*1.5m*1.8m

2. Main Components:

8 ton hydraulic de-coiler 1 set
Leveling 1 set
Hydraulic Punching 1 set
Hydraulic Pre - cutting 1 set
Main roll forming machine 1 set
Control box 1 set
Hydraulic station 1 set
Out table 2 unit
Spare parts 1 package

3. Work Flowchart:

Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance

4. Our Advantage

- This EU type of light gauge steel roll forming machine line include 3 tons of manual decoiler, roll forming host, PLC control system, hydraulic cutting system and output table

- The manual decoiler is free for each machine, it can hold 3 tons of strips, and normally the space between manual decoiler and the machine is 3 meters.

- Feeding table has 1 row of roller to make the strip flat, and the roll forming host can produce the light keels as per customer's request.

5. Our service

(processes)

First step:

Designing. After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.

Second step:

The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.

Third step:

Assembling. The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.

Fourth step:

Test. Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.

Five step:

Delivery. Because of the weight of machine itself, the packing is usually bare packing. Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

6. Picture

Easy Operation Cable Tray Forming Machine Later Punching Type + / -1.5mm Tolerance

Product tags

cable tray manfacturing machine

,

cable tray perforation machine

,

cable tray punching machine
