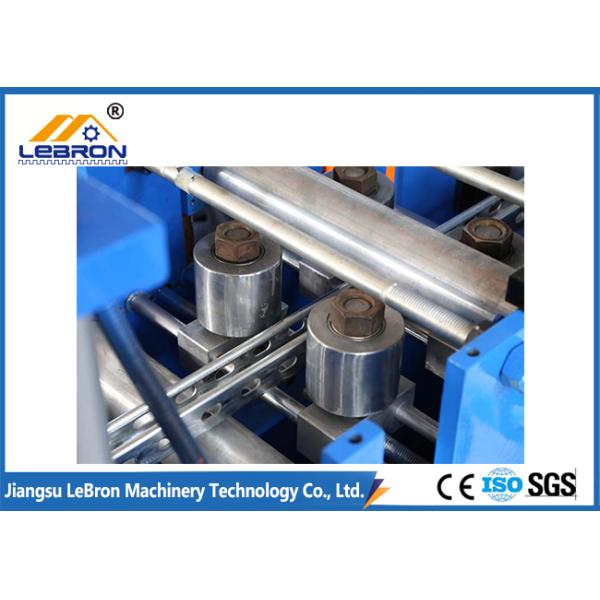

2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
Specifications
Brand Name :
Lebron Machinery
Certification :
ISO 9001: 2008
Place of Origin :
Wuxi City, Jiangsu Province, China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
30-40
Model Number :
SSM-LBM-Mode 06
Packaging Details :
Standard Export Packing with each machine tied and protected in the container
Shaft Material :
No.45 Steel. Chromed, Quenching
Roller Station :
18 Stations
Main Power :
30 Kw
Controller :
PLC System
Color :
orange
Weight :
About 8000 Kgs
Description

2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic

1. The equipment technical requirements:

equipment area: 45 * 3.0 * 5 meters (length x width x height). (according to finally provide foundation drawing shall prevail)

device feed direction: left feed.

voltage parameters for 380, 50 Hz, 3 phase.

gas source: the flow of 0.5 m3 / min; Pressure is 0.6 MPa.

hydraulic oil: 46 # hydraulic oil.

gear oil: 18 # hyperbolic gear oil.

2. Rolling product range

the stamping/molding unit can pedal profile rolling thickness of 2 mm.

size rolled products: according to customer’s drawing

3. Major Technical Proposal

Item Specification Description
1 Main Motor 18.5*2 KW
2 Roller GCr15
3 Cutter Cr12
4 Roller Station 20 stations
5 Roll Forming Speed 10~12m/min
6 Suitable Material Galvanized Steel Strip, Coll-rolled strip
7 Thickness 1.5~2.5mm

4. Main components

No. Name Qty. (Set) Remark
1 5 Ton Manual De-coiler 1
2 Leveler 1
3 Servo Feeder 1
4 Punching Press JH21-80 1 YANGLI GROUP
5 Punching Die 4
6 Roll forming machine 1
7 Hydraulic Start-stop Cutting device 1
8 Cutting blade 3
9 Collection Table 1
10 Electric control system 1

2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic

2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic

2018 New Type Siemens PLC Control Strut Channel Roll Forming Machine Full Automatic
