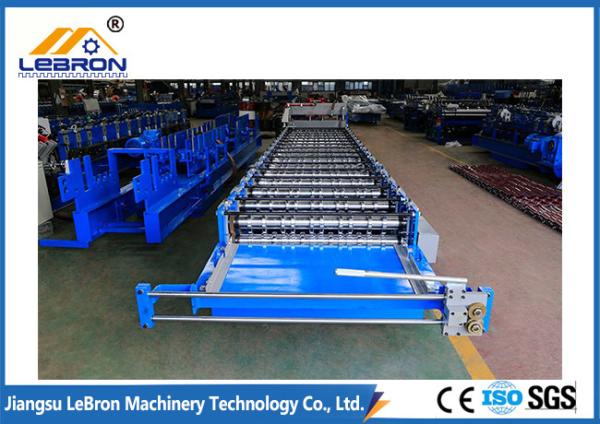

Hot Sale Fully Automatic High Capacity Metal Glazed Tile Roll Forming Machine

1. Description of Glazed Tile Roll Forming Machine:

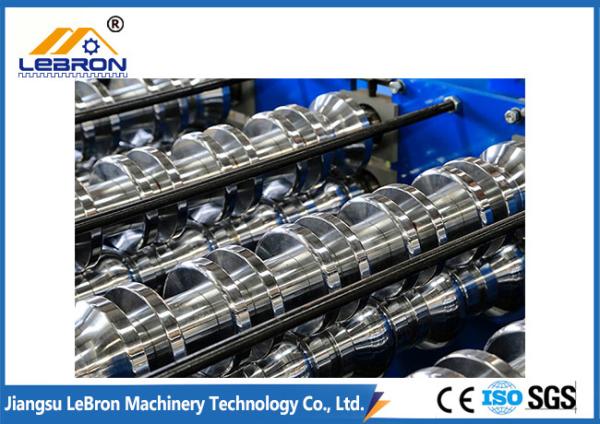

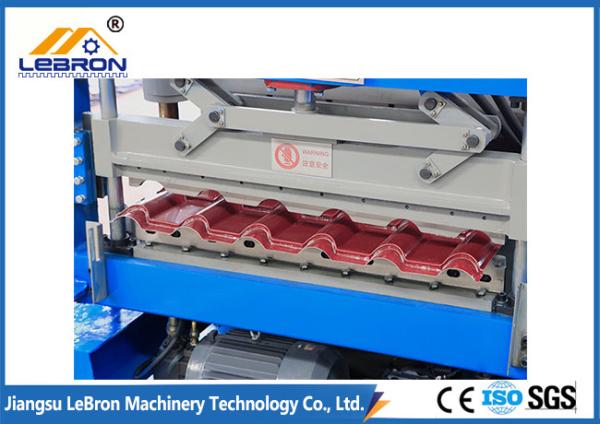

The glazed tile roll forming machine is divided into three parts: roller forming part, pressing part, and cutter part. The roll forming part of the glazed tile roll forming machine is driven by the motor, and the chain drives the rollers to rotate. The pressing part of the glazed tile roll forming machine is that the hydraulic cylinder drives the mold to move up and down, which can press the color steel into many sections, which are similar to glazed tiles. The cutter part is driven by a hydraulic cylinder to move the cutter up and down, which can cut off the colored steel tiles.

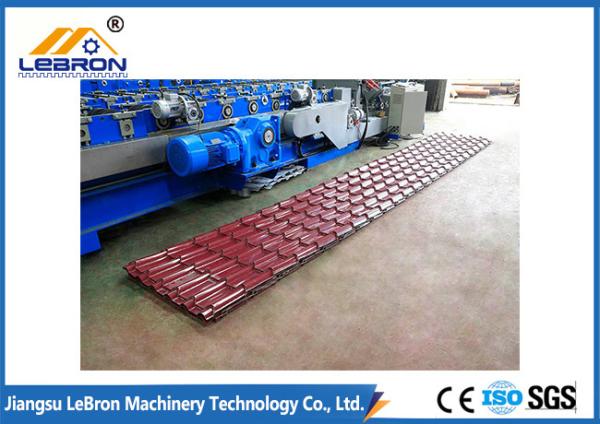

The production process of the glazed tile pressing machine is as follows: the colored steel sheet enters the roll forming unit, and then goes to the forming part after roll forming, and is pressed into equidistant sections, and the cutter is responsible for the fixed-length cutting. The control part includes a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.

2. Main Technical Parameters

3. Main Components

4. FAQ:

Q: How to maintain it?

A: If used frequently, best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.

Q: Can you be responsible for transport?

A: Yes, please tell me the destination port or address. we have rich experience in transport.

Q: Can you make the machine according to my design or phototype?

A: Yes. We have an experienced team for working out the most suitable design and production

Q: Can you supply the raw materials?

A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil

Q: How is this machine's service life?

A: In normal maintenance, the service life is at least 10 years.
