Specifications
Brand Name :
Bolte BTH
Model Number :
Chuck standard
Certification :
CE
Place of Origin :
Genmany
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS per month
Delivery Time :
15 working days after received your payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Stud Ø :
3-24
Inserting depth (mm) :
5-25
Length (mm) :
50-65
Method :
insulation pins
Description

Chuck Standard Accessories for Stud Welding Guns PHM-160, PHM-161, PHM-250 GD 16, GD 19, GD 22, GD

Bolte BTH Chuck Standard

Accessories for Stud Welding Guns PHM-160, PHM-161, PHM-250

GD 16, GD 19, GD 22, GD

Whatsapp: +86 13818731663
Wechart: 630531309

Chuck standard

Chuck Standard Accessories for Stud Welding Guns PHM-160, PHM-161, PHM-250 GD 16, GD 19, GD 22, GD

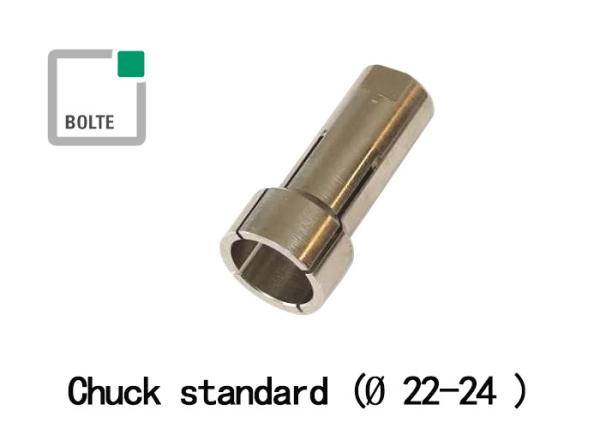

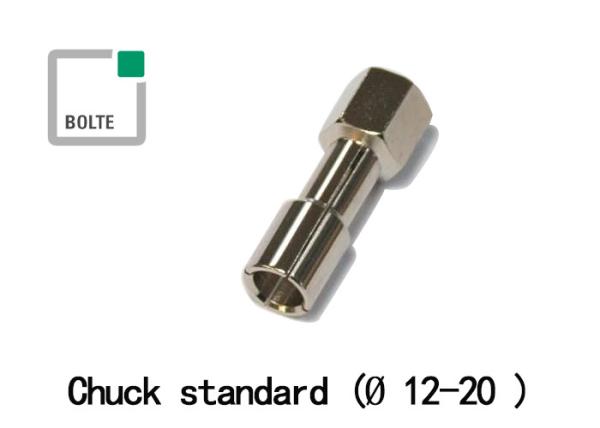

standard (Ø 3-10) standard (Ø 12-20) standard (Ø 22-24)

Description: Field of application:
Chuck standard Threaded studs, non-threaded studs, internal threaded studs

Stud Ø Inserting depth (mm) Length (mm) Item number
3 5 50 83-50-003
4 5 50 83-50-004
5 6 50 83-50-005
6 4 50 83-50-006-4
6 7 50 83-50-006
6 15 50 26-31-00
8 4 50 83-50-008-4
8 6 50 25-29-00
8 9 50 83-50-008
8 25 50 26-94-00
10 4 50 25-97-00
10 6 50 25-30-00
10 11 50 83-50-010
12 6 55 25-31-00
12 13 55 83-55-012
14 15 55 83-55-014
14,6 7 55 26-90-00
14,6 15 55 26-48-00
16 5 55 25-99-00
16 15 55 83-55-016
18 5 55 83-55-018-5
18 15 55 83-55-018
20 15 55 83-55-020
22 6 65 83-55-022-6
22 10 55 83-55-022-10
22 15 55 83-55-022-15
24 15 65 25-46-00

There are several sizes of chucks available in the accessories for each stud welder. However, since the chuck is a consumable item during the use of the stud welder, it is recommended to purchase some chucks according to the specifications of the customer's welded studs.
