Specifications
Brand Name :
LBH BOLTE
Model Number :
LBSaccu 90S
Certification :
CE
Place of Origin :
Germany
MOQ :
1 units
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
30 units per month
Delivery Time :
15 working days after received your payment
Packaging Details :
Packed in carton firstly, and then reinforced with wooden case for outer packing
Max. welding diameter :
Ø10 mm
Welding material :
steel, stainless steel, aluminium, brass
Capacitance :
88000 μF
Charging voltage :
60 - 200 V
Welding time :
1 - 3 mS
Number of welds/battery charge :
M3/Ø3: 2800 M4/Ø4: 1500 M5/Ø5: 1100 M6/Ø6: 650 M8/Ø8: 400/M10: 250
Battery (capacity/voltage) :
2 x 7,5 Ah/12 V
Battery life :
1000 charging cycles
Battery charging time :
3 hours
External power adapter (for charging/welding from mains) :
100 - 240 V, 50/60 Hz, 4000 mA
Dimensions (B x L x H) :
195 x 302 x 270 mm
Gewicht :
11.4 kg
Article number :
B-90-30-2054-1
Suitable welding guns :
PKM-1B, PHM-1A, PIM-1B
Description

LBSaccu 90S Battery Powered Capacitor Discharge Stud Welding Machine, High-Grade LCD Display

BTH BOLTE LBSaccu 90S Battery Powered Stud Welding Unit

Capacitor Discharge Stud Welding Machine

Whatsapp: +86 13818731663
Wechart: 630531309

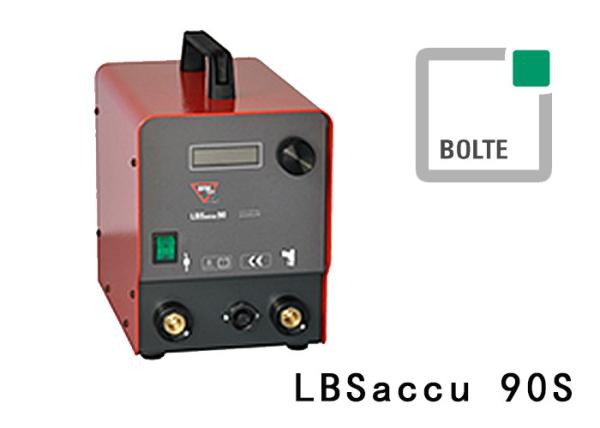

The battery powered stud welding unit LBSaccu 90s is designed for capacitor discharge stud welding with up to 200V charging voltage. The unit welds stainless steel studs up to M8 resp. Ø8 and steel studs up to M10 reliable in process. It can also be used with our gap stud welding gun PHM-1A, so that also aluminium and brass studs can be welded reliable in process.

The battery operation enables mobile use without electrical power supply. The integrated battery offers a very high capacity. With a life period of approx. 1000 charging cycles it is extremely long-lasting. Alternatively (e.g. when the battery is empty), the unit can be operated at every power socket.

The LBSaccu 90s is very light and very compact (195 x 302 x 270 mm). It convinces through easy operation and high welding quality. Through the electronically clocked inverter charging board short charging times and thus quick welding sequences are accomplished. The robust construction ensures high reliability and high power-on time. All functions are indicated by the high-grade LCD display. The charging voltage is continuously adjustable by the rotary knob on the front.

Max. welding diameter Ø 10 mm
Welding material steel, stainless steel, aluminium, brass
Capacitance 88000 μF
Charging voltage 60 - 200 V
Welding time 1 - 3 mS
Number of welds/battery charge M3/Ø3: 2800
M4/Ø4: 1500
M5/Ø5: 1100
M6/Ø6: 650
M8/Ø8: 400
M10: 250
Battery (capacity/voltage) 2 x 7,5 Ah/12 V
Battery life 1000 charging cycles
Battery charging time 3 hours
External power adapter
(for charging/welding from mains)		 100 - 240 V, 50/60 Hz, 4000 mA
Dimensions (B x L x H) 195 x 302 x 270 mm
Gewicht 11,4 kg
Article number B-90-30-2054-1
Suitable welding guns PKM-1B, PHM-1A, PIM-1B

​

  • lightweight
    • low weight for high mobility
  • small and compact
    • dimensions: 195 x 302 x 270 mm
  • LCD-Display
    • easy to read
    • display of adjusted charging voltage
    • display of welds performed (welding counter resettable)
    • display of welds still possible
    • charging state indicator (colour changing of the display)
  • very easy operation
    • charging voltage continuously adjustable
    • one-button operation by robust rotating pressure switch

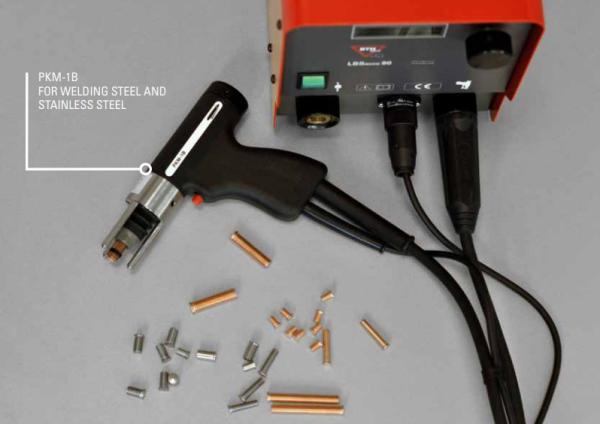

  • applicable with stud welding gun PKM-1b
    • for welding threaded studs, non-threaded studs, internally threaded studs, earth plugs and insulation nails
    • welding material: steel, stainless steel
  • applicable with stud welding gun PHM-1A
    • for welding threaded studs, non-threaded studs, internally threaded studs, earth plugs and insulation nails
    • welding material: steel, stainless steel, aluminium, brass
  • applicable with stud welding gun PIM-1b
    • for welding cupped head pins
    • welding material: steel, stainless steel
  • powerful
    • perfect welds of very high strength
    • very high battery capacity
  • long-lasting high-end lithium battery
    • battery life approx. 1000 charging cycles!
  • full battery charge from mains in only 3 hours
  • easy, tool-less change of battery
  • efficient energy management
    • automatic stand-by mode (after 30 minutes)
    • automatic shut-down (after 60 minutes)
  • electronically clocked inverter charging board
    • ensure short charging times and thus quick welding sequences
    • ensure energy-efficient charging of capacitors
  • mains operation
    • Alternatively (e.g. when the battery is empty), the unit can be operated at every power socket.
  • utmost safety
    • electronic function control
    • self-diagnosis system
    • automatic function test
    • repeat cycle lock to avoid welding on already welded studs
    • battery deep discharge protection
  • automatic switch-off in case of excess temperature
  • protection of the unit in case of a fault on welding/control line cable and solenoid
  • high quality, robust unit body for harsh building site conditions

All battery powered capacitor discharge stud welding units at a glance

LBSaccu 50 LBSaccu 50s LBSaccu 75 LBSaccu 75s LBSaccu 90 LBSaccu 90s
Max. welding diameter (mm) 6 6 8 8 10 10
Welding material steel, stainless steel steel, stainless steel, aluminium, brass steel, stainless steel steel, stainless steel, aluminium, brass steel, stainless steel steel, stainless steel, aluminium, brass
Capacitance (μF) 47000 47000 66000 66000 88000 88000
Charging voltage (V) 60-200 60-200 60-200 60-200 60-200 60-200
Welding time (mS) 1-3 1-3 1-3 1-3 1-3 1-3
Number of welds/battery charge M3/Ø3: 2800
M4/Ø4: 1500
M5/Ø5: 1100
M6/Ø6: 650		 M3/Ø3: 2800
M4/Ø4: 1500
M5/Ø5: 1100
M6/Ø6: 650		 M3/Ø3: 2800
M4/Ø4: 1500
M5/Ø5: 1100
M6/Ø6: 650
M8/Ø8: 400		 M3/Ø3: 2800
M4/Ø4: 1500
M5/Ø5: 1100
M6/Ø6: 650
M8/Ø8: 400		 M3/Ø3: 2800
M4/Ø4: 1500
M5/Ø5: 1100
M6/Ø6: 650
M8/Ø8: 400
M10: 250		 M3/Ø3: 2800
M4/Ø4: 1500
M5/Ø5: 1100
M6/Ø6: 650
M8/Ø8: 400
M10: 250
Battery (capacity/voltage) 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V 2 x 7,5 Ah/12 V
Battery life 1000 charging cycles 1000 charging cycles 1000 chargin cycles 1000 charging cycles 1000 charging cycles 1000 charging cycles
Battery charging time 3 hours 3 hours 3 hours 3 hours 3 hours 3 hours
Error diagnosis systems
Excess temperature x x x x x x
Damage on welding/control cable x x x x x x
Damage on solenoid x x x x x x
External power adapter (for charging/welding from mains) 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA 100-240 V, 50/60 Hz, 4000 mA
Thermic controlled ventilator x x x x x x
Robust, powder-coated metal housing x x x x x x
Dimensions
Width (mm) 195 195 275 275 195 195
Height (mm) 302 302 302 302 302 302
Length (mm) 270 270 270 270 270 270
Weight (kg) 9,9 10 10,4 10,5 11,3 11,4
Control cable socket for welding guns 7-pin 7-pin 7-pin 7-pin 7-pin 7-pin
Suitable welding guns
PKM-1B x o x o x o
PHM-1A x x x
PIM-1B o o o o o o
x = Standard, o = Option
