2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia
Specifications
Brand Name :
IRONSTAR
Place of Origin :
CHINA
Description

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

Short Description:

Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine

  • Raw material:Galvanized steel
  • Warranty:3 years
  • Export port:Tianjin port
  • Payment Terms:T/T, L/C, D/A, D/P
  • Container:20 feet container
  • Working days:40 working days

Diameter of Angle bead roll forming machine

NO Type Specification
1 Raw material Type Galvanized steel
Feeding width As customer' drawing
Thickness 1-3 mm
2 Decoiler Operation Manual
Weight apacity 3 Tons
3 Main body Roller station 10 rows
Diameter of shaft 65 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame Steel plate welding
Frame thickness 16 mm
Machine size About 4.2*0.8*1 m
Machine weight About 2.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Servo motor speed 30-50 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 5.5 KW
Pump motor for cutter 4 KW
Voltage 380V/50HZ, 3 phase or as customer' request
6 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Description of Angle bead roll forming machine

Angle bead roll forming machine popular sell in many countries, we sell lots of such machine to Iraq, Egypt, UAE, Chile, South Africa etc

Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 27*27 mm, 30*30 mm, 40*40 mm. Product thickness common between 1-3 mm

This machine we make for customer 30*30 to 80*80 mm, size interchangeable

Customized is welcome, tell me your need size and thickness, we provide you satisfied machine

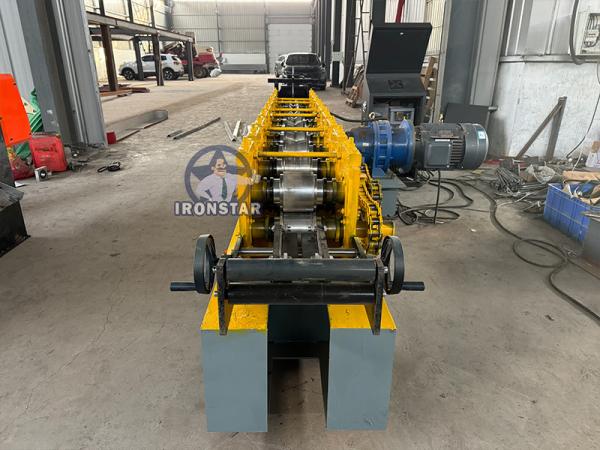

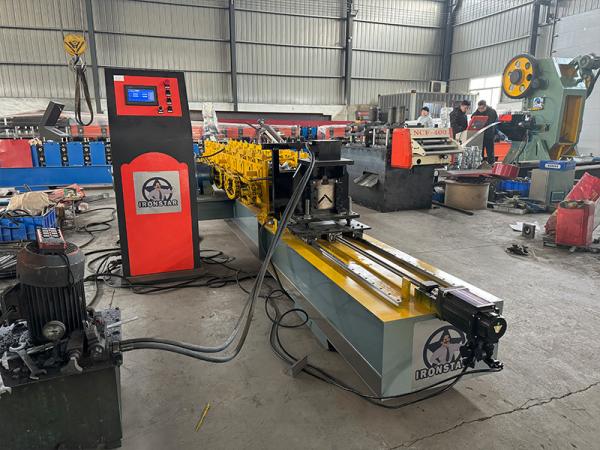

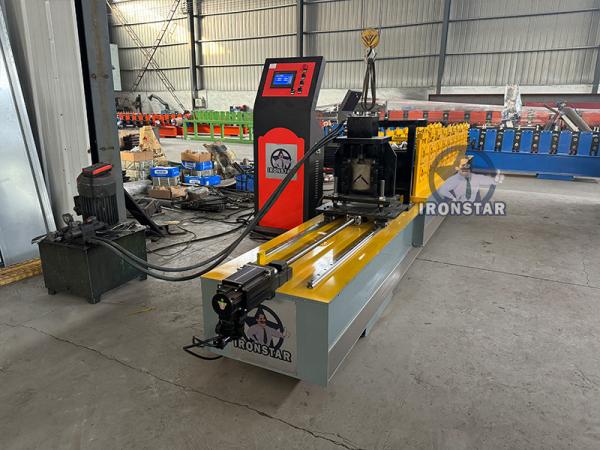

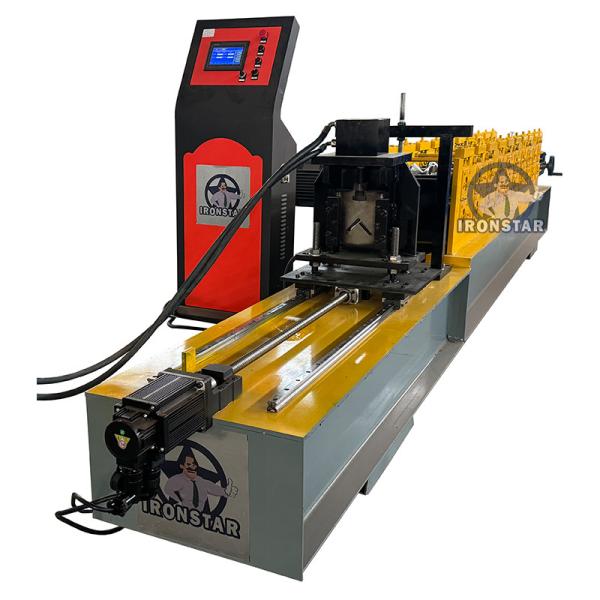

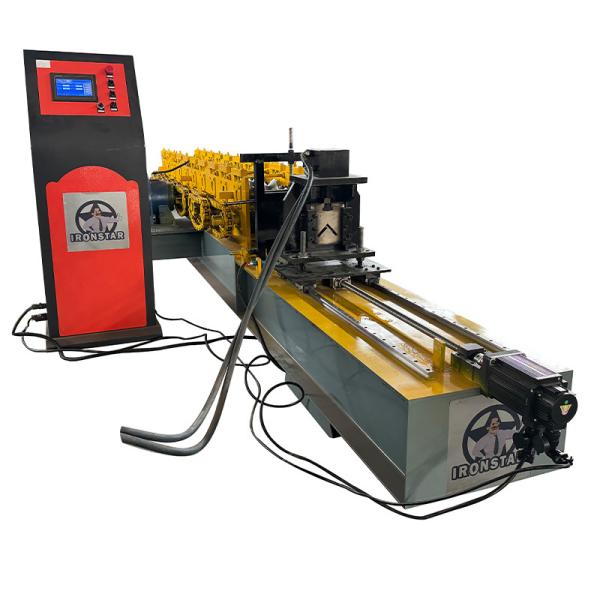

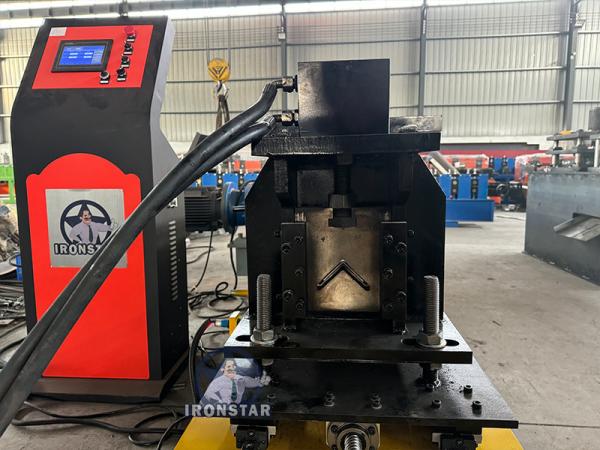

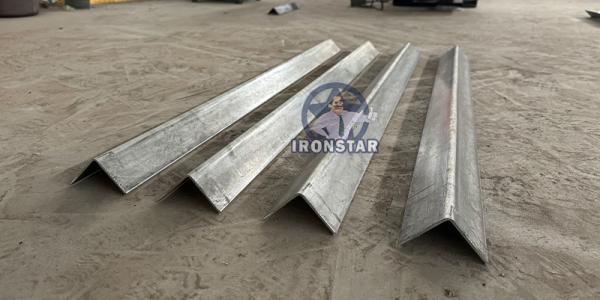

Product show

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

Roll forming machine

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
