Specifications
Brand Name :
IRONSTAR
Place of Origin :
CHINA
Description

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia

Short Description:

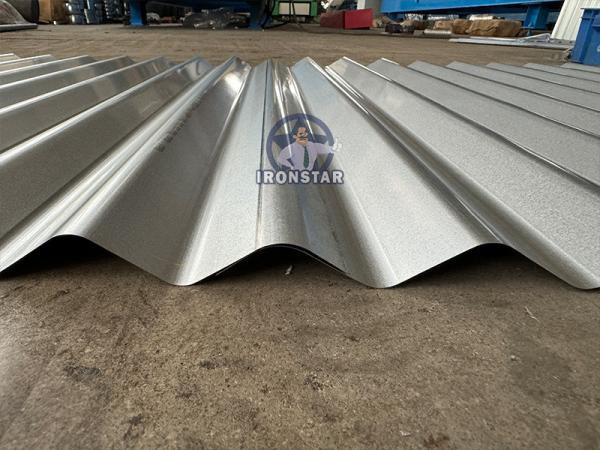

Corrugated roofing roll forming machine popular sell in many countries, common Corrugated roofing sheet rolling thickness from 0.15-0.4 mm, material use G550 GI ( Galvanized Steel ) material

We sell lots of such Corrugated roofing roll forming machine to Indonesia, Guyana, South Africa, Tanzania, Nigeria, India etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size

  • Raw material:GI (Galvanized Steel ) material G550
  • Warranty:3 years
  • Export port:Tianjin port
  • Payment Terms:T/T, L/C, D/A, D/P
  • Container:40 feet container
  • Working days:40 working days

Diameter of corrugated roofing sheet roll forming machine

NO Type Specification
1 Raw material Type PPGI
Feeding width As customer' drawing
Thickness 0.3-0.6 mm
2 Decoiler Operation Manual
Weight apacity 5 Tons
3 Main body Roller station 23 rows
Diameter of shaft 70 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame 360mm C-beam
Frame thickness 16 mm
Machine size About 10*1*1.5 m
Machine weight About 5.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 8-20 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 5.5 KW
Pump motor for cutter 3 KW
Voltage 380V/50HZ, 3 phase or as customer' request
6 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Product Show

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

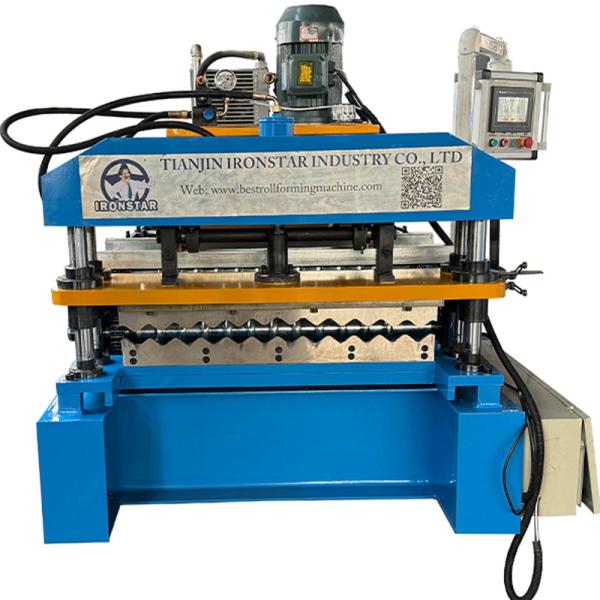

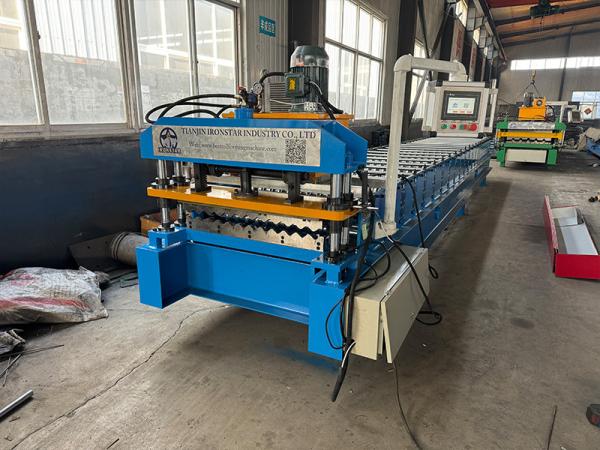

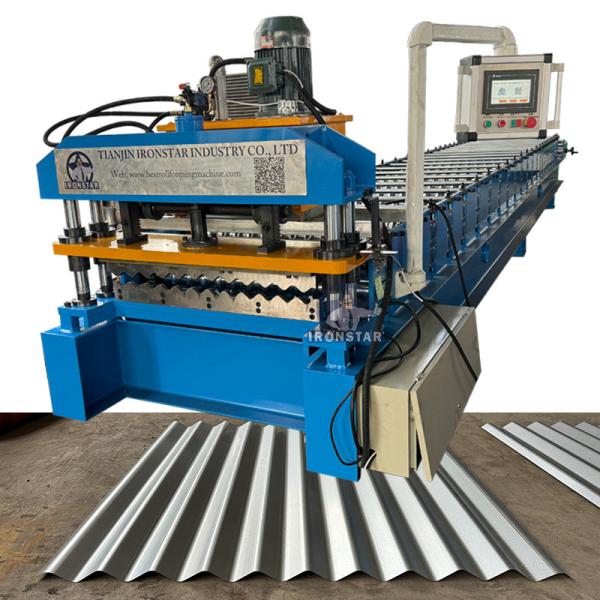

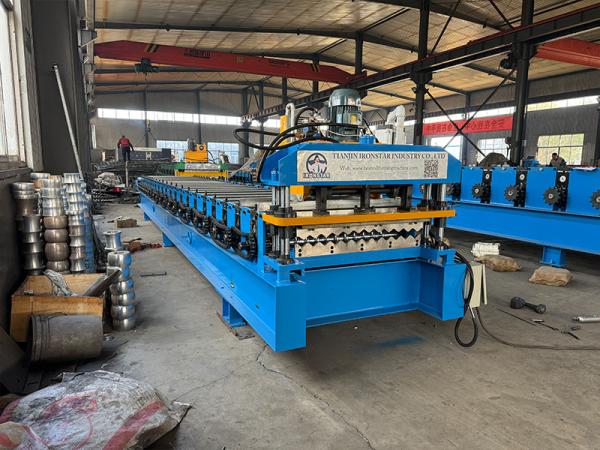

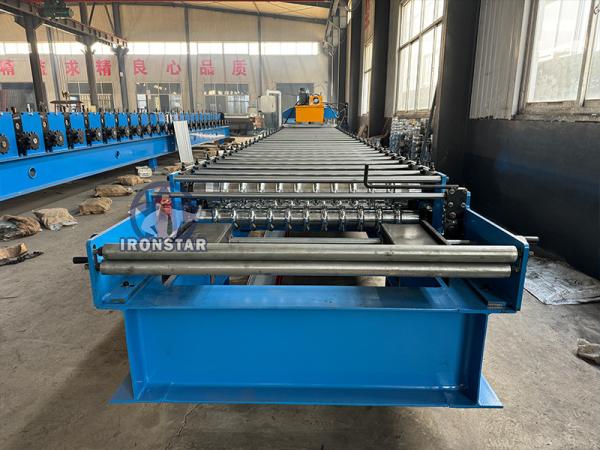

Roll forming machine

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

762mm 0.12-0.4mm corrugated roll forming machine in Indonesia Raw material: GI (Galvanized Steel ) material G550

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
